Bently Nevada 84661-55 Standard Armored Interconnect Cable

Bently Nevada 84661-55 — 55 ft armored cable.

Services: Stock Check · Quotation Support · Global Shipping

Contact Leonia: sales11@amikon.cn | WhatsApp: +86 180 3017 5807

Brand:
Bently Nevada
Item NO.:
84661-55
Manufacturer:
Bently Nevada
Part number:
84661-55

Bently Nevada 84661-55 Standard Armored Interconnect Cable

55 ft ordered length
Armored construction
2-conductor shielded cable
22 AWG (0.5 mm²)

Product Overview

The cable uses two twisted, shielded 22 AWG (0.5 mm²) conductors within an armored construction. One end has a two-socket moisture-resistant female connector, while the other end terminates in terminal lugs.

For 84661-55, the final two digits identify the 55 ft ordered length. The connector-to-lug arrangement is documented for monitors or vibration data collectors; selection should preserve the complete order code and both end terminations.

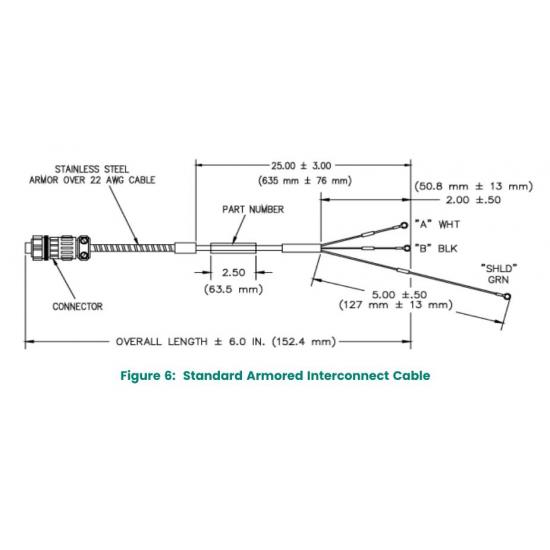

Official Bently Nevada standard armored interconnect cable drawing showing the armored 22 AWG cable, connector and terminal leads

Product Specifications

Technical Item	84661-55
Brand	Bently Nevada
Product Type	Standard armored interconnect cable
Series	84661
Ordered Length	55 ft
Cable Construction	2-conductor, twisted, shielded and armored
Conductor Size	22 AWG (0.5 mm²)
Connector End	2-socket moisture-resistant female connector
Termination End	Terminal lugs
Documented Use	With monitors or vibration data collectors
Cable Operating Temperature	-50°C to 120°C
Family Length Range	3.0 ft (0.9 m) minimum; 99 ft (30 m) maximum

Armored Signal Path

The 84661-55 combines a twisted, shielded conductor pair with an armored exterior for the specified 55 ft interconnect run.

Two conductors form the documented cable arrangement.
The pair is twisted and shielded.
Each conductor is 22 AWG (0.5 mm²).
The 84661 configuration adds armor to the cable construction.

Connection and Selection Checks

The complete cable identity includes the ordered length and both terminations, so each interface should be checked against the installed connection before quotation or replacement.

Confirm the full order code as 84661-55.
Verify that the required route is 55 ft.
Match the two-socket moisture-resistant female connector.
Confirm terminal-lug termination at the receiving end.

Frequently Asked Questions

How should the 84661-55 length code be interpreted?

The suffix identifies the ordered cable length in feet, so 84661-55 specifies a 55 ft cable. Confirm that this length matches the actual route before ordering.

Which end connections must be matched when replacing 84661-55?

Match a two-socket moisture-resistant female connector at one end and terminal lugs at the other. Both interfaces are part of the documented cable configuration.

Can 84661-55 be selected by cable length alone?

No. Confirm the complete 84661-55 order code together with the armored construction, 22 AWG shielded conductor pair and both end terminations.

What receiving equipment is documented for 84661-55?

The cable is documented for use with monitors or vibration data collectors. The installed connector and terminal arrangement still need to match the receiving equipment.

What installation conditions should be checked for 84661-55?

Check the route length, connector fit, terminal-lug arrangement and the documented cable operating range of -50°C to 120°C before installation.
