Introduction

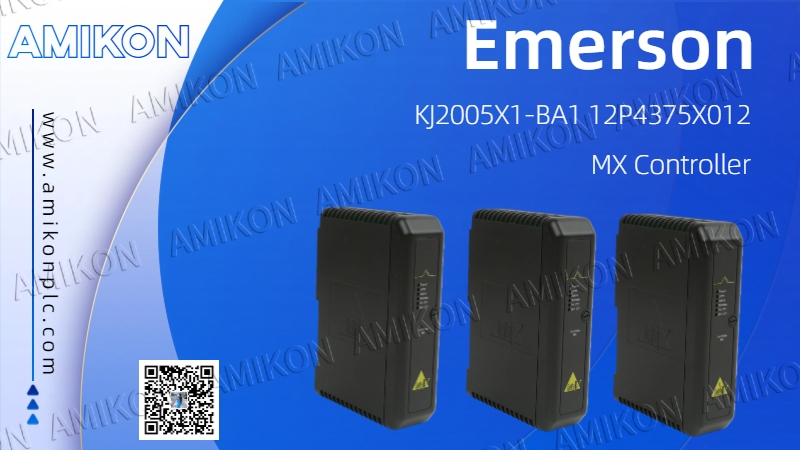

The Emerson KJ2005X1-BA1 12P4375X012 MX Controller is a core hardware component of the Emerson DeltaV Distributed Control System (DCS), specifically designed for multi-device collaborative control in process industries, focusing on precise process control in sectors such as chemical, power, and oil and gas. This controller features high computing power, high redundancy, and high compatibility, integrating real-time data processing, logic operations, and multi-protocol communication. It can seamlessly interface with DeltaV system I/O modules, host computers, and third-party devices, addressing the pain points of traditional controllers such as response delay, poor compatibility, and weak fault tolerance, becoming a key support for stable operation and intelligent upgrading of industrial production processes.
Technical specifications
Manufacturer: Emerson
Product Type: MX Controller
Country of Origin: USA
Place of shipment: Xiamen, China
Condition: 100% Original
Warranty: 1 Year
Local Bus Power: +5 VDC at 1.4 A
AmbientTemperature: -40 °C to +60 °C
Shock: 10 g half-sine wave for 11 ms
Vibration: 1 mm peak to peak from 2 to 13.2 Hz;0.7 g from 13.2 to 150 Hz
Application areas
-
Emerson KJ2005X1-BA1 MX Controller With its high adaptability, it has achieved deep application in core scenarios of the process industry:
-
Petrochemical Industry: Adapted to process control of catalytic cracking units in oil refineries and reactors in chemical plants, it can precisely adjust key process parameters such as temperature, pressure, and flow rate to ensure stable reaction processes and reduce material loss and safety risks.
-
Power Energy Industry: Used for coordinated control of boilers and turbines in thermal power plants, it connects to DCS systems and field instruments through multi-protocol communication to optimize boiler combustion efficiency and precisely control turbine speed, thereby improving power generation efficiency.
-
Oil and Gas Extraction Industry: Applied to pressure regulation and flow control in oil and gas gathering and transportation stations, it can withstand high temperature, high humidity, and high dust conditions in the field, ensuring continuous and stable oil and gas transportation and reducing unplanned downtime.
-
Municipal Environmental Protection Industry: Adapted to process control of aeration tanks and sedimentation tanks in sewage treatment plants, it can dynamically adjust the operating status of fans and pumps according to water quality parameters to achieve a balance between sewage treatment efficiency and energy consumption.
Core Advantages
-
Compared to similar DCS controllers, the Emerson KJ2005X1-BA1 MX Controller's core competitiveness lies in three aspects:
-
Superior Redundancy and Fault Tolerance: Dual-machine hot standby switching time ≤50ms, far below the industry average of 100ms, and supports I/O module-level redundancy. Even if a single module fails, it does not affect overall control, providing broader fault tolerance coverage.
-
Stronger Compatibility and Expandability: Compatible with the entire DeltaV I/O module series and third-party devices, it can connect to mainstream industrial protocols without secondary development, expanding the number of I/O points to 1024, far exceeding the average expansion capability of 512 points for similar controllers.
-
Lower Maintenance Costs: Modular design facilitates rapid replacement of faulty modules; core components support hot-swapping, with replacement time ≤15 minutes; built-in remote diagnostic function allows real-time monitoring of the controller status via a host computer, reducing the frequency of on-site inspections and lowering labor costs.
Installation and Optimization
-
Installation Recommendations: Use standard DIN rail mounting. The installation location should be far away from strong electromagnetic interference sources such as frequency converters and high-power contactors. The communication cable length to the I/O rack should be ≤100 meters, using shielded twisted-pair cable with proper grounding. Power supply wiring should be independent, avoiding mixing with power cables to prevent voltage fluctuations from affecting operation.
-
Usage and Commissioning: For initial use, parameter configuration should be completed using DeltaV Config software, including control logic, communication protocol, and redundancy configuration. During commissioning, simulate fault scenarios (such as network outages or module offline) to verify redundancy switching and fault alarm functions, and optimize PID control parameters.
-
Optimization Scheme: For complex process control scenarios, the "Priority Task Scheduling" function can be enabled to set core process parameters as the highest priority, shortening response latency. After long-term operation, clean the controller's cooling fan every 12 months and check the tightness of the wiring terminals. Connect to an industrial internet platform via the OPC UA interface to achieve remote monitoring of controller operation data and parameter optimization.
Conclusion
The Emerson KJ2005X1-BA1 12P4375X012 MX Controller, as the core control unit of the DeltaV DCS system, solves the precise control challenges of complex processes in the process industry with its core advantages of high computing power, high redundancy, and high compatibility. It provides crucial support for the stable operation of production in industries such as chemical, power, and oil and gas. It not only improves process control accuracy and reduces the risk of unplanned downtime, but also adapts to the needs of industrial intelligent upgrades through flexible expansion and remote maintenance capabilities, significantly reducing the total lifecycle maintenance cost. In the context of Industry 4.0, this controller, with its mature technology system and scenario adaptability, has become a core choice for enterprises to achieve digital and intelligent management and control of production processes.
