Introduction

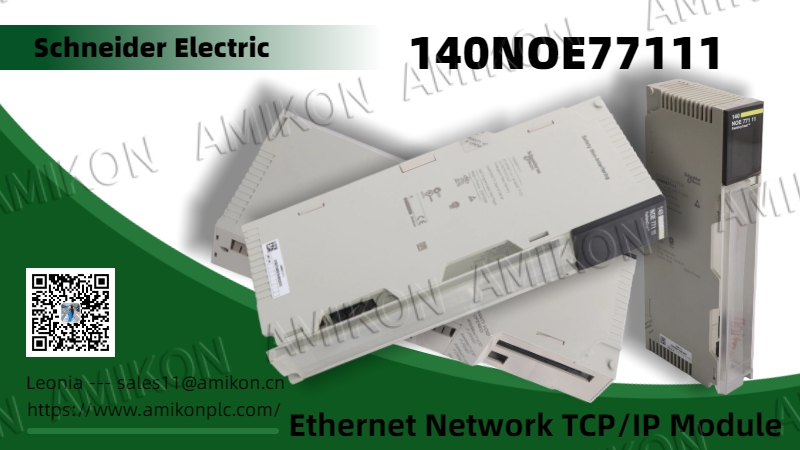

In automation systems of process industries and discrete manufacturing, stable and high-speed network communication is vital for ensuring real-time data interaction and equipment collaboration. Schneider Electric's Modicon Quantum series 140NOE77111 Ethernet TCP/IP module, a transparently ready communication core specifically designed for the Quantum automation platform, provides a reliable Ethernet connectivity solution for industrial environments. This module supports the Modbus TCP/IP protocol and features both fiber optic and twisted-pair interfaces. It not only meets the communication needs of traditional industrial networks but also provides comprehensive support for equipment monitoring, data acquisition, and remote maintenance through its built-in FactoryCast web server, NTP time synchronization, and SNMP management functions. It is a key component in building efficient and intelligent industrial control systems.

Application Areas

The 140NOE77111 module, with its stable industrial-grade performance, is widely adaptable to multiple demanding industry scenarios:

1.Dual-interface redundancy design for complex network environments

The module features both MT-RJ fiber optic and RJ45 twisted-pair interfaces, allowing for flexible selection of communication media based on site conditions. The fiber optic interface enables long-distance, interference-resistant transmission, suitable for chemical and power plants with strong electromagnetic interference; the twisted-pair interface is compatible with conventional workshop network deployments, meeting the cabling needs of different scenarios. The module also supports a hot-standby redundancy architecture, enabling seamless switching of communication links and avoiding system downtime due to single-point failures.

2.FactoryCast built-in web server for remote visual management

The module is equipped with a customizable FactoryCast web server. No additional software installation is required; users can access the module's built-in webpage via a browser to view controller configuration, real-time register data, Ethernet statistics, and distributed I/O status. The webpage interface can also be customized for remote monitoring and parameter configuration, significantly reducing on-site maintenance costs.

3.Rich diagnostic and fault feedback mechanisms reduce maintenance difficulty

The module's LED indicators not only reflect basic operating status, but the "Run" light also supports fault code diagnosis, flashing different numbers of times to indicate network faults, IP conflicts, configuration errors, and other issues, helping maintenance personnel quickly locate the cause of the fault. Simultaneously, the SNMP network management function can be integrated into industrial network management systems for centralized monitoring of equipment status.

4.High compatibility and scalability, adaptable to the entire Quantum platform

The module is compatible with all Quantum controllers of version 2.0 and above, supports Unity Pro programming environment configuration, and can be seamlessly integrated into existing automation systems without large-scale modifications. The module also supports I/O scanning, global data interaction, Modbus TCP message transmission, and other functions, easily enabling interconnection with third-party Modbus devices to expand system communication capabilities.

• Preparation before installation: Confirm that the module model matches the Quantum rack model. With the power off, open the rack cover, align the module with the rack slot, push it in smoothly, and tighten the fixing screws to ensure good contact between the module and the backplane.
• Wiring and Configuration: Depending on the site network type, select either fiber optic or twisted-pair interface to connect the network cable. Use Unity Pro software to configure the module's IP address, subnet mask, and gateway. Automatic IP address allocation can also be achieved using BOOTP/DHCP tools.
• Status Verification: After powering on, observe the LED indicators. A constantly lit Active, Ready, and Link light, and a normally flashing Run light, indicate normal module operation. If the Fault light is on or the Run light is flashing abnormally, check the fault code to troubleshoot the problem.

Conclusion

The Schneider Electric 140NOE77111 Ethernet TCP/IP module, with its dual-interface design, FactoryCast remote management, rich fault diagnosis functions, and industrial-grade stability, serves as the reliable communication core of the Modicon Quantum automation platform. It not only solves the Ethernet communication needs of industrial sites but also provides strong support for the intelligent operation and maintenance of industrial control systems through additional functions such as NTP time synchronization and SNMP management. Whether in oil and gas, chemical, power, water treatment, or discrete manufacturing industries, this module can adapt to complex working conditions with stable performance, safeguarding the automation systems of enterprises.

For more information on the 140NOE77111 module's inventory, technical support, or purchasing inquiries, please feel free to contact us:

Manager: Leonia

Email: sales11@amikon.cn

Whatsapp: +8618030175807

Q1: Which IP address configuration methods does the 140NOE77111 module support?

A1: The module supports both static IP configuration and automatic IP address acquisition via BOOTP/DHCP. Configuration can be completed using Unity Pro software or the BOOTP tool to meet different network management needs.

Q5: What is the module's operating temperature range, and does it support high-temperature field use?

A5: The module's operating temperature range is 0~60℃, suitable for conventional industrial environments; if it needs to be used in special working conditions with higher temperatures, it is recommended to use it with a cabinet air conditioner or temperature control equipment to ensure that the module operates within the rated temperature range.
