Manufacturer: Vibro-Meter
Product Numbers: MPC4 200-510-SSS-1Hh

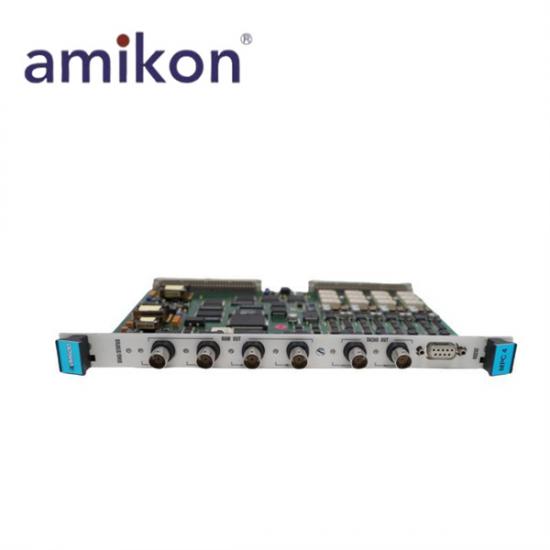

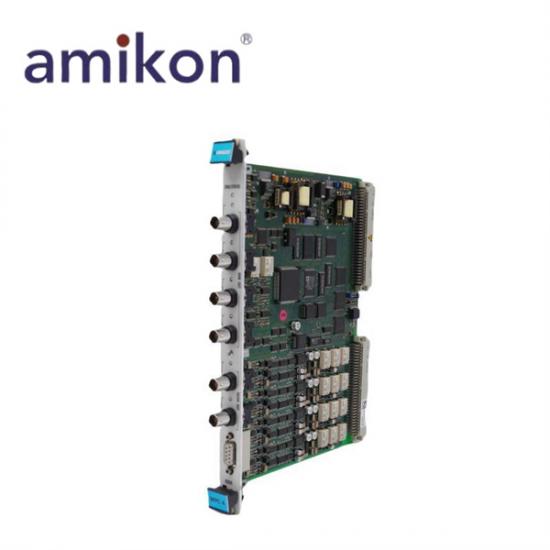

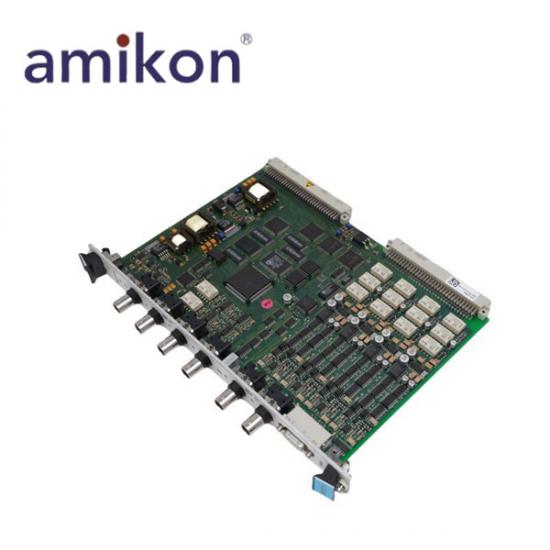

Product Type: Machinery Protection Card
Place of 0rigin: Switzerland
Condition：New & In Stock
Warranty：1 Year
Supply voltage: 5 VDC ± 5 % and ±12 VDC
Number of inputs: 4 per MPC4 card
DC range: 0 to +20 V or 0 to −20 V
AC range: ± 10 V (maximum)
Common mode voltage range: −50 to +50 V
CMRR: > 60 dB at 50 Hz
Crosstalk: −72 dB
Input impedance: 200 kΩ
Current input range
• DC signals: 0 to 25 mA
• AC signals: ± 8 mA (maximum)
Analog AC frequency band (without integration): 0.1 Hz to 10 kHz
Analog AC frequency band (with integration): 2.5 Hz to 10 kHz
Current measuring resistor: 324.5 Ω

The MPC4 machinery protection card is the central element in the VM600 series machinery protection system (MPS), from Meggitt Sensing Systems’ Vibro-Meter ® product line. This very versatile card is capable of measuring and monitoring up to four dynamic signal inputs and up to two speed inputs simultaneously.The dynamic signal inputs are fully programmable and can accept signals representing acceleration, velocity and displacement (proximity), among others. On-board multi-channel processing allows measurement of various physical parameters, including relative and absolute vibration, Smax, eccentricity, thrust position, absolute and differential housing expansion, displacement and dynamic pressure.Digital processing includes digital filtering, integration or differentiation (if required), rectification (RMS, mean value, true peak or true peak-to-peak), order tracking (amplitude and phase) and measurement of the transducer-target gap.
