1756-A13 ControlLogix 13 Slots Chassis

Product Line: ControlLogix
Part Number: 1756-A13
Mounting: Panel Mount
Module Type: Chassis
No. of slots: hirteen (13) slots
Backplane Current @ 1.2VDC: 1.5 A
Backplane Current @ 3.3VDC: 4A/4 A
Backplane Current @ 5.1VDC: 15 A/6 A
Backplane Current @ 24VDC: 2.8 A/2.8 A
Orientation: Horizontal
No. of mounting tabs: Eight (8)
Operating Temperature, Series B: 0°C to +60°C (+32°F to +140°F)
Operating Temperature, Series C: -25…+60 °C (-13…+140 °F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Relative Humidity: 5 to 95% (without condensation)
Wire size: Functional Earth Ground - 8.3 mm2 (8 AWG) solid or
Slots: 13
Power Dissipation (Max): 5.4 Watts
Enclosure: Open
Backplane Current (5 Volts DC): 10 amps
Backplane Current (24 Volts DC): 2.8 Amps

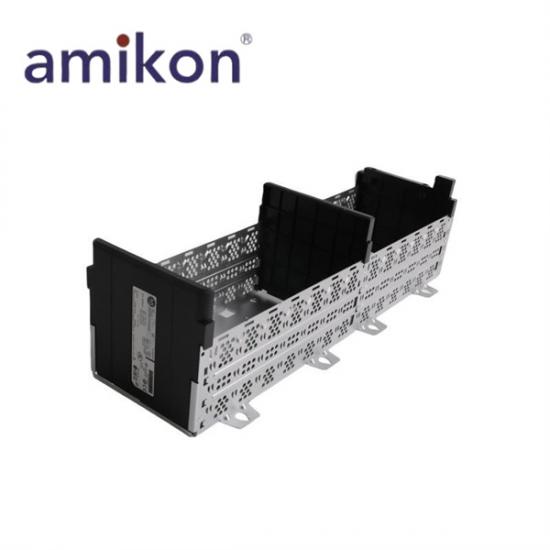

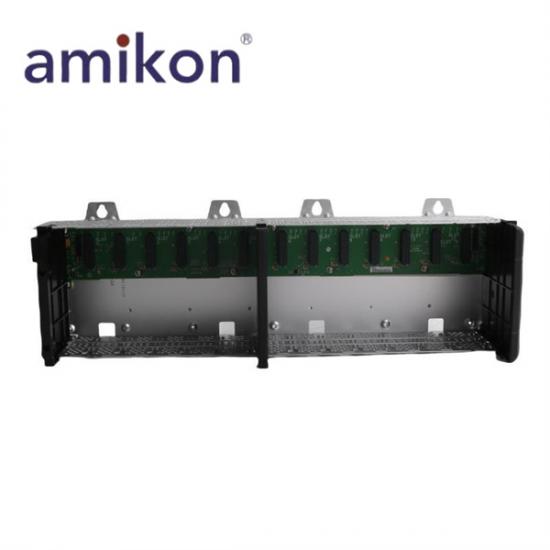

The 1756-A13 is a ControlLogix chassis that provides module housing, offering 13 module slots where controllers and I/O modules may be installed. In addition to providing mounting slots, the chassis also hosts the electronic circuitry that makes up the backplane. The backplane distributes the current used by each module to energize individual circuitry and ensure proper operation.

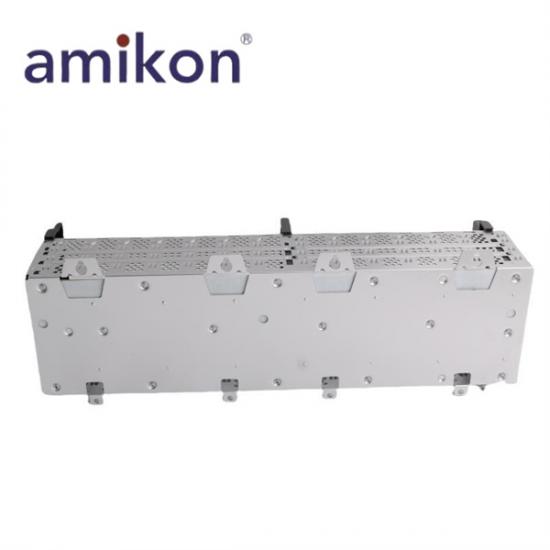

The 1756-A13 supports horizontal mounting only. It requires a minimum cabinet size of 60.9 x 76.2 x 20.3 cm (24 x 30 x 8 in.) for installation and weighs 1.90 kg (4.2 lb). It is installed directly to the enclosure subpanel via the provided mounting tabs located on the top and bottom of the chassis. Install this chassis at a temperature range of 0…60 °C (32…140 °F) for Series A and B chassis, and -25…+60 °C (-13…+140 °F) for Series C chassis. It has an operating vibration rating of 2 g @ 10…500 Hz and an operating shock rating of 30 g.
This chassis may be used with the Logix 5560, 5570, and 5580 product families.
