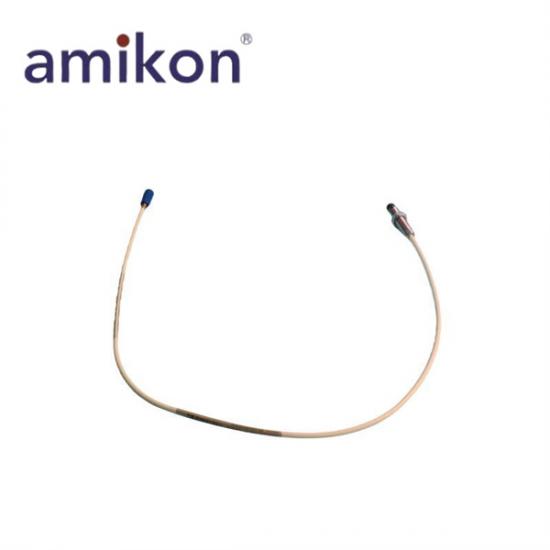

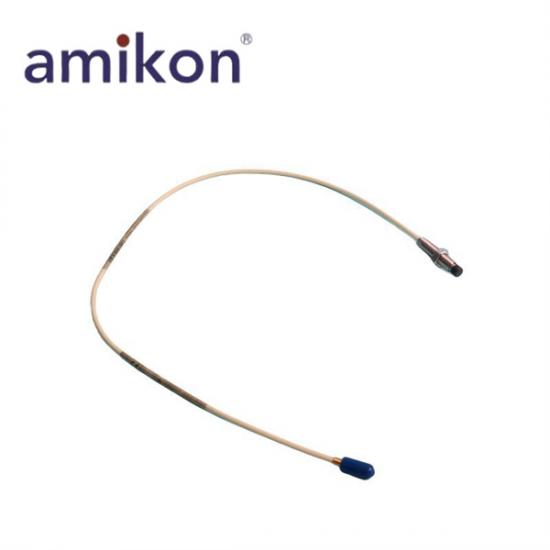

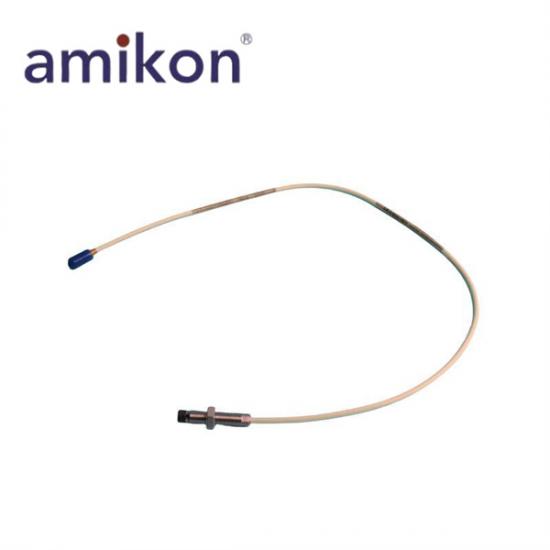

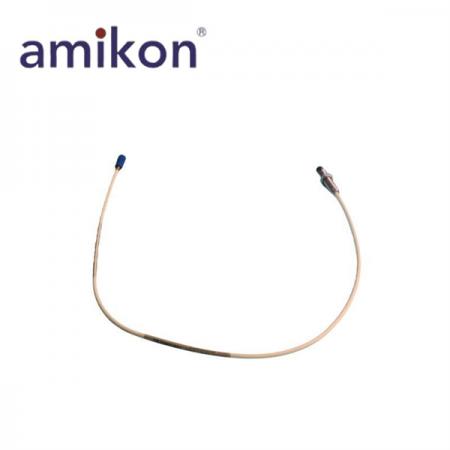

21504-000-020-10-02 / 21504-000-032-10-02 Bently Nevada | 8 mm Standard Mount Probe

Manufacturer: Bently Nevada
Product Numbers: 21504-000-020-10-02 / 21504-000-032-10-02
Product Type: 8 mm Standard Mount Probe
Place of 0rigin: USA
Diameter: 8 mm
Configuration type: Standard
Configuration threads:  3/8-24 thread
Lead armor: no
Unthreaded Length: 000=0.0 inches
Overall Case Length: 020= 2.0 inches / 032= 3.2 inches
Total Length: 10=1.0 metre (39 inches).
Connector Option: 02=With miniature male coaxial connector.
Relative Humidity: To 95%,noncondensing.
Power: -17.5 Vdc to-26 Vdc at 12 mA maximum consumption.
Load: 10KΩ

The Bently Nevada 21504-000-020-10-02 / 21504-000-032-10-02 8 mm Standard Mount Probe is a high-precision non-contacting transducer designed for measuring both static and dynamic shaft movements. With a standard 3/8-24 thread, 8 mm diameter, and miniature male coaxial connector, it offers reliable installation and signal transmission in industrial machinery. The probe supports operation in environments with up to 95% non-condensing relative humidity and functions at -17.5 Vdc to -26 Vdc with a 12 mA maximum current, providing accurate data under a wide range of operating conditions.
Designed for comprehensive rotor monitoring, this probe system measures radial vibration, axial thrust position, shaft average radial position, vibration amplitude, phase angle, and eccentricity. With a frequency response from 0 Hz to 10 kHz, it is ideal for detecting bearing wear, rotor imbalance, misalignment, and rotor bow. Compatible with both 2.0 inch (020) and 3.2 inch (032) case lengths, and total length of 1.0 meter (39 inches), it integrates seamlessly into 7200 and 8 mm proximity transducer systems for machinery diagnostics and predictive maintenance.

Your Dedicated Account Manager

At Amikon, every inquiry is handled by a dedicated account manager who is fully trained and focused on your needs. They understand your priorities—highest quality, best pricing, and fastest delivery—and are available to assist with even the smallest question at any time with transparency and honesty.

Fast and Reliable Turnaround

In the industrial sector, timing is crucial. Your account manager provides precise lead times for every request, and Amikon ensures shipments arrive as promised. We can coordinate with any carrier you prefer and keep you informed with tracking details from dispatch to delivery.

Highly Competitive Pricing

Amikon not only maintains an extensive inventory, but also leverages a global network of manufacturers and suppliers to secure the best prices for every part. This ensures you receive excellent value without compromising on quality or availability.

1. What types of measurements can the 8 mm Standard Mount Probe perform?
It measures radial vibration, axial thrust position, shaft average radial position, vibration amplitude and phase angle, and rotor eccentricity.

2. How does the probe help monitor machinery condition?
By providing precise data on rotor balance, misalignment, thrust bearing wear, and shaft stability, it enables predictive maintenance and early fault detection.

3. What is the frequency response of this probe system?
It operates from 0 Hz (DC) up to 10 kHz, suitable for both low-speed and high-speed machinery monitoring.

4. What environmental conditions can this probe tolerate?
It functions reliably with relative humidity up to 95% (non-condensing) and operates at -17.5 Vdc to -26 Vdc with a maximum current of 12 mA.

5. Are different case lengths available for installation flexibility?
Yes, both 2.0 inch (020) and 3.2 inch (032) overall case lengths are available, with a total cable length of 1.0 meter (39 inches) to suit various installation requirements.
