31000-16-05-00-071-03-02/31000-16-05-00-065-03-02/31000-28-05-15-032-03-02 | Bently Nevada Proximity Probe Housing Assembly

To confirm availability, request a quote, or place an order, contact our sales team directly. We are ready to assist with compatibility checks, pricing, and lead times.

Leonia |  Email: sales11@amikon.cn |  WhatsApp: +86 18030175807

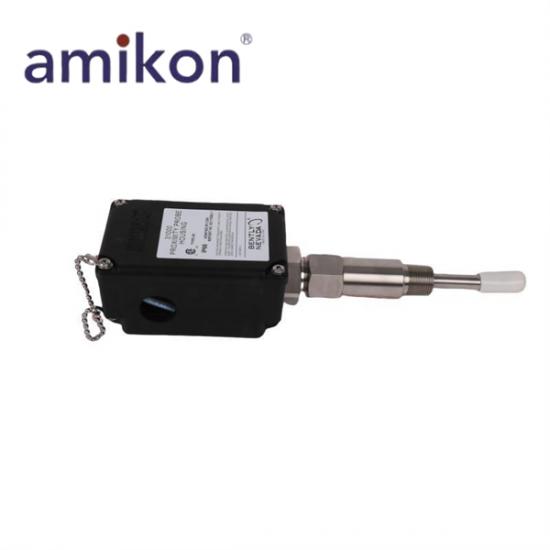

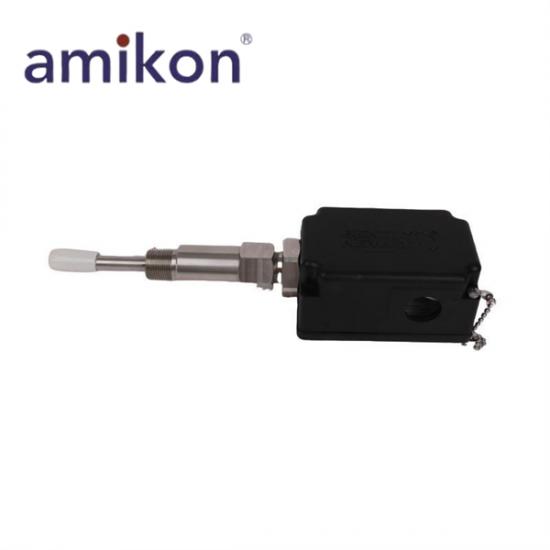

The Bently Nevada 31000-16-05-00-071-03-02, 31000-16-05-00-065-03-02, and 31000-28-05-15-032-03-02 are proximity probe housing assemblies designed for externally mounted vibration and Keyphasor measurement applications. All three configurations are built using glass-reinforced polyphenylene sulfide (PPS) with conductive fibers, providing high mechanical strength and excellent corrosion resistance. Stainless steel components, including AISI 304 for the sleeve and AISI 303 for fittings and screws, ensure durability in harsh industrial environments. These assemblies support 3300 XL 8 mm probes and allow convenient external access for probe adjustment or replacement without requiring machine disassembly, improving maintenance efficiency and reducing downtime. In addition, all models comply with API 670 standards and can be used in intrinsically safe hazardous areas when combined with appropriate systems and barriers.
The three models share the same fundamental structure, materials, probe compatibility, and mounting configuration, including 0.5 m probe cable length, identical fittings (03), and 3/4-14 NPT mounting thread (02). The differences are mainly reflected in probe penetration depth, standoff adapter configuration, and approval options. Bently Nevada 31000-16-05-00-071-03-02 provides a deeper probe penetration of 7.1 inches without a standoff adapter, while 31000-16-05-00-065-03-02 offers a slightly shorter penetration of 6.5 inches, also without a standoff adapter. In contrast, Bently Nevada 31000-28-05-15-032-03-02 includes a 1.5-inch standoff adapter and a shorter 3.2-inch penetration depth, along with multiple approvals for broader application compliance. These variations allow users to select the most suitable configuration based on installation space, measurement position, and certification requirements.

Manufacturer: Bently Nevada
Product Numbers: 31000-16-05-00-071-03-02/31000-16-05-00-065-03-02/31000-28-05-15-032-03-02
Product Type: Proximity Probe Housing Assembly
Place of 0rigin: USA
Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers
Sleeve Material and Retaining Chain: AISI 304 stainless steel
Outer Sleeve and Exterior Screws Ordering Information: AISI 303 stainless steel

Ordering Information

31000 - AA-BB-CC-DDD-EE-FF
A: Probe with Connector --- 16 = 3300 XL 8 mm probe / 28 =  3300 XL 8 mm probe, multiple approvals
B: Probe Cable Length --- 05= 0.5 m (20 in)
C: Standoff Adapter Length (Option C Dimension) --- 00 = No standoff adapter / 15 = 1.5 in (38 mm)
D: Probe Penetration Option (Option D Dimension) --- 071 = 7.1 in / 065 = 6.5 in / 032 = 3.2 in
E: Fittings --- 03 = Two plugs, one 3/4-14 NPT fitting
One 3/4-14 to 1/2-14 NPT SST reducer
One cable seal grip with grommets for
the following cable sizes:
• 1/8 to 3/16 inches
• 1/4 to 5/16 inches
• 5/16 to 3/8 inches
F: Mounting Thread Option --- 02 = 3/4-14 NPT (Required if ordering Standoff Adapter Option).
