32000-28-05-05-060-00-02 Bently Nevada | Metric Proximity Probe Housing Assemblies

Manufacturer: Bently Nevada
Product Numbers: 32000-28-05-05-060-00-02
Product Type: Metric Proximity Probe Housing Assemblies
Place of 0rigin: USA
Probe with Connector: 3300  XL 8 mm probe, multiple approvals
Probe Cable Length: 0.5 m (20 in)
Standoff Adapter Length (Option C Dimension): 50 mm
Probe Penetration Option (Option D Dimension): 600 mm
Fittings: Without fittings; two plugs and two washers.
Mounting Thread Option: 3/4-14 NPT (Required if ordering Standoff Adapter Option.)
Temperature Range: -51 °C to +105 °C (-60 °F to + 221 °F)
Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers

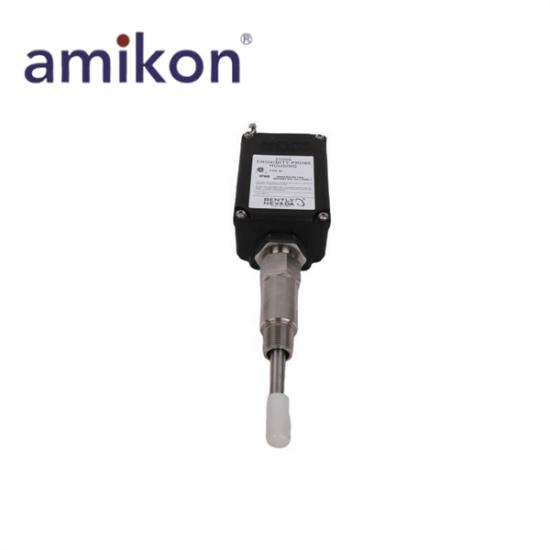

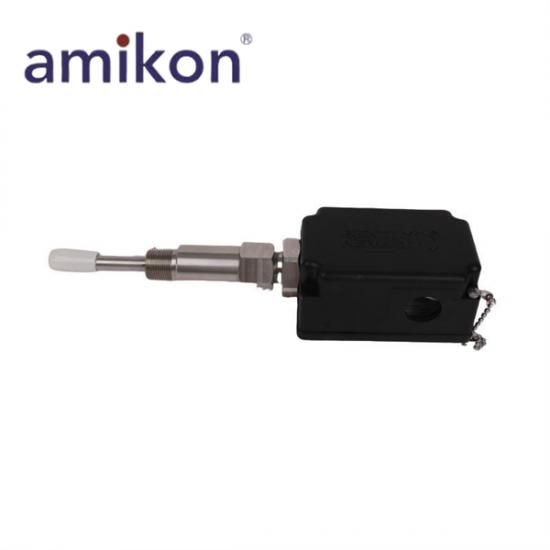

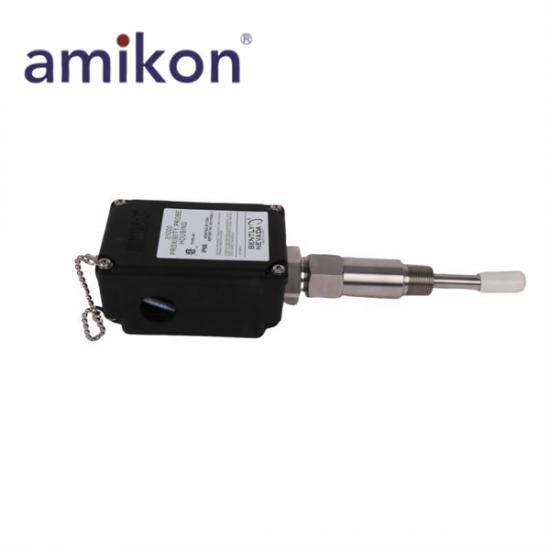

The Bently Nevada 32000-28-05-05-060-00-02 Metric Proximity Probe Housing Assembly is designed for precise and reliable mounting of 3300 XL 8 mm proximity probes through machine cases. Constructed from glass-reinforced polyphenylene sulfide (PPS) thermoplastic with conductive fibers, it provides excellent strength, corrosion resistance, and durability in industrial environments. Stainless steel elements enhance mechanical stability, while the 3/4-14 NPT mounting thread and 50 mm standoff adapter allow flexible installation for radially mounted transducers, including vibration and Keyphasor measurements.
This housing assembly simplifies maintenance and adjustment by allowing external access to the probe and extension cable, so gap adjustments or probe replacement can be made without disassembling the machine. Fully compliant with API 670 standards, it supports safe integration with approved transducer systems and intrinsically safe (I.S.) barriers for hazardous area applications. The included 0.5 m probe cable and optional installed 3300 XL probes ensure a ready-to-use solution for precise, non-contact displacement and vibration monitoring.

Your Dedicated Account Manager

At Amikon, every inquiry is handled by a dedicated account manager who is fully trained and focused on your needs. They understand your priorities—highest quality, best pricing, and fastest delivery—and are available to assist with even the smallest question at any time with transparency and honesty.

Fast and Reliable Turnaround

In the industrial sector, timing is crucial. Your account manager provides precise lead times for every request, and Amikon ensures shipments arrive as promised. We can coordinate with any carrier you prefer and keep you informed with tracking details from dispatch to delivery.

Highly Competitive Pricing

Amikon not only maintains an extensive inventory, but also leverages a global network of manufacturers and suppliers to secure the best prices for every part. This ensures you receive excellent value without compromising on quality or availability.

1. What is the primary purpose of the 32000 Metric Proximity Probe Housing Assembly?
It is designed to mount 3300 XL proximity probes through the machine case, allowing radial installation for vibration and Keyphasor measurements.

2. How does the housing simplify maintenance?
The assembly provides external access to the probe and extension cable, enabling gap adjustments or probe replacement without disassembling the machine.

3. What materials are used in the housing assembly?
The main housing is made of glass-reinforced PPS thermoplastic with conductive fibers, and other components, including mounting elements, are corrosion-resistant stainless steel.

4. Can this housing assembly be used in hazardous areas?
Yes, when installed with approved transducer systems and appropriate I.S. barriers, it is suitable for intrinsically safe hazardous area applications.

5. Is the assembly compliant with industry standards?
Yes, the 32000 Metric Proximity Probe Housing Assembly fully complies with API 670 standards for externally mounted proximity probe housings.
