32000-30-05-10-088-07-02 32000-30-10-00-095-02-02 32000-29-05-04-090-07-02 | Bently Nevada Metric Proximity Probe Housing Assembly

Manufacturer: Bently Nevada
Product Numbers: 32000-30-05-10-088-07-02 32000-30-10-00-095-02-02 32000-29-05-04-090-07-02
Product Type: Metric Proximity Probe Housing Assembly
Place of 0rigin: USA
Protection Ratings: Type 4X rating certified by Canadian Standards Association (CSA). IP66 rating verified by SC115582-1 (e) 106. CENELEC standard EN50014 rating for electrostatic dissipation of a plastic material located in a hazardous area.
Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers
Sleeve Material and Retaining Chain: AISI 304 stainless steel
Outer Sleeve and Exterior Screws: AISI 303 stainless steel
O-Ring Material: Neoprene
Recommended Torque(retaining nut): 29.4 N·m (260 in·lb)

Ordering Information

32000 - AA-BB-CC-DDD-EE-FF
Product Numbers	32000-30-05-10-088-07-02	32000-30-10-00-095-02-02	32000-29-05-04-090-07-02
A: Probe with Connector	30=3300 XL 8 mm probe, with connector protector, multiple approvals	30=3300 XL 8 mm probe, with connector protector, multiple approvals	29=3300 XL 8 mm probe, with connector protector
B: Probe Cable Length	05 = 0.5 m (20 in)	10=1.0 m (39 in)	05 = 0.5 m (20 in)
C: Standoff Adapter Length	10 = 100 mm	Minimum length 40 mm	04 = 40 mm
D: Probe Penetration Option	088 = 88 mm	095 = 95 mm	090 = 90 mm
E: Fittings	07 = One PG21 x M20 fitting Two plugs	02 = Two M25 fittings, one plug.	07 = One PG21 x M20 fitting Two plugs
F: Mounting Thread Option	02 = 3/4-14 NPT (Required if ordering Standoff Adapter Option.)

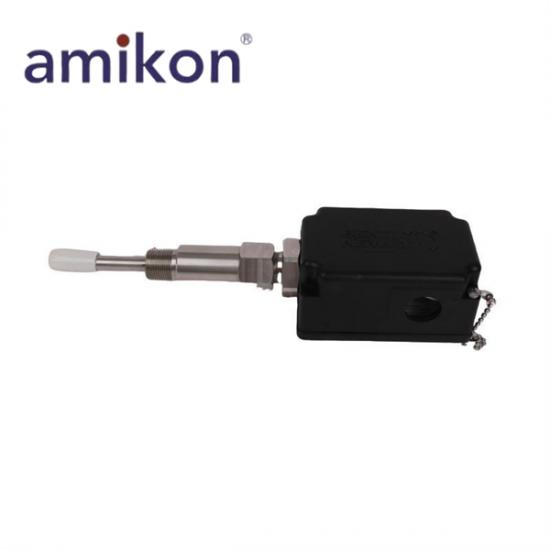

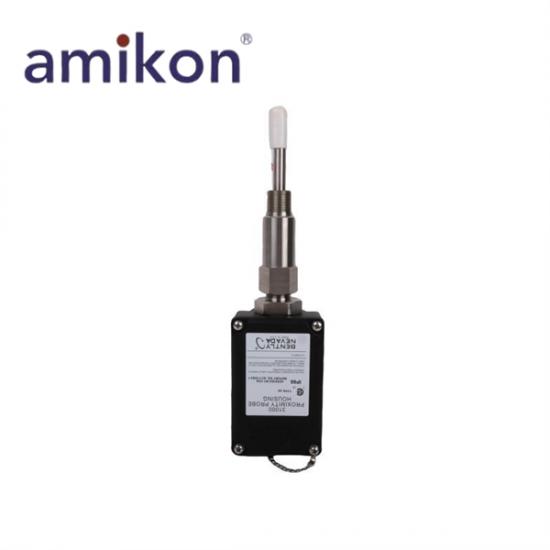

The Bently Nevada 32000-30-05-10-088-07-02, 32000-30-10-00-095-02-02, and 32000-29-05-04-090-07-02 are Metric Proximity Probe Housing Assemblies designed for mounting proximity probes through the machine case in vibration and Keyphasor measurement applications. All three models provide external access to the probe and extension cable, allowing easy gap adjustment and probe replacement without machine disassembly. They feature a glass-reinforced PPS housing, stainless steel construction, CSA Type 4X and IP66 protection ratings, and compliance with API 670 requirements.
The main differences between the three assemblies are their ordering configurations, including housing dimensions, conduit fittings, and probe installation options. While the 32000-30-05-10-088-07-02, 32000-30-10-00-095-02-02, and 32000-29-05-04-090-07-02 are configured for different installation requirements, all provide the same corrosion resistance, environmental protection, and reliable support for proximity transducer systems.
