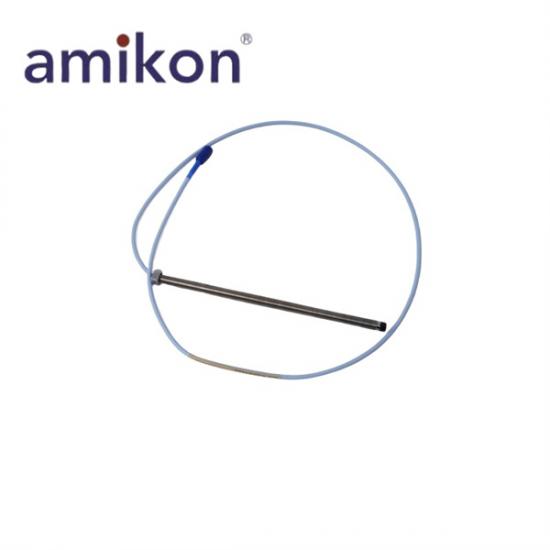

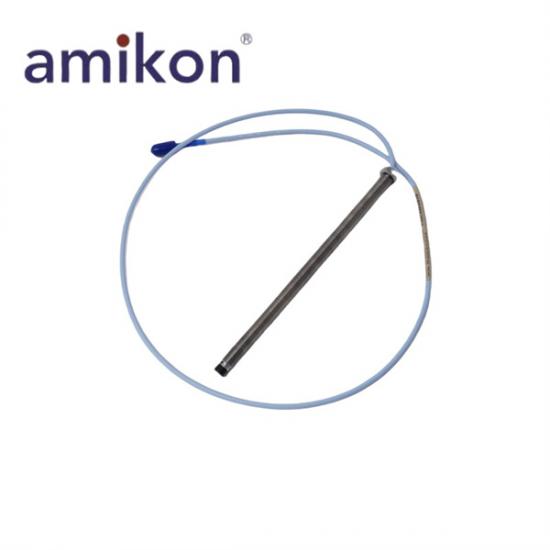

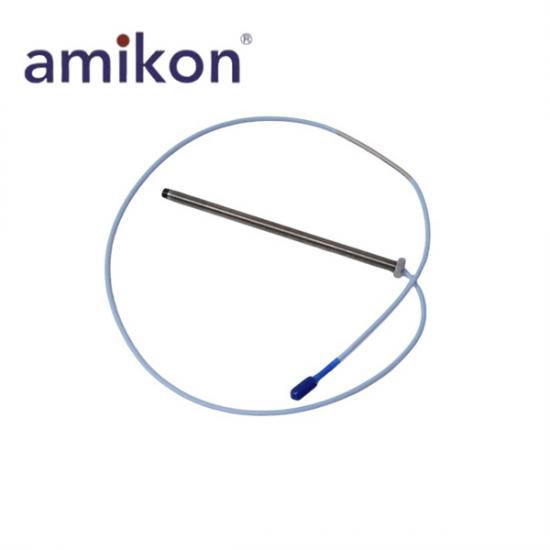

330101-00-24-10-12-05/330102-00-83-50-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probe

Manufacturer: Bently Nevada
Product Numbers: 330101-00-24-10-12-05/330102-00-83-50-02-05
Product Type: 3300 XL 8 mm Proximity Probe
Place of 0rigin: USA
Thread specification: 3/8-24 UNF thread
Load Resistance: 10 kΩ
Probe sealing material: Viton® O ring.
Probe Case Material: AISI 303 or 304 stainless steel (SST).
Probe Tip Material  Polyphenylene sulfide (PPS).
Maximum Altitude: 2000 meters
Operating and Storage Temperature: -52°C to +177°C (-62°F to + 350°F)

Ordering Information for Probes

※Product Description

The Bently Nevada 330101-00-24-10-12-05 / 330102-00-83-50-02-05 3300 XL 8 mm Proximity Probe is part of the 3300 XL 8 mm Proximity Transducer System. The system consists of one 3300 XL 8 mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor. The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. Its primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The system delivers advanced performance in eddy current proximity transducer systems and fully complies with the API 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
The 330101-00-24-10-12-05 / 330102-00-83-50-02-05 probe features a 3/8-24 UNF thread, load resistance 10 kΩ, Viton® O-ring sealing material, AISI 303 or 304 stainless steel (SST) probe case material, and Polyphenylene sulfide (PPS) probe tip material. Operating and storage temperature is -52°C to +177°C (-62°F to +350°F), with a maximum altitude of 2000 meters. Connector and cable-type options include Miniature coaxial ClickLoc connector with FluidLoc cable (330101) or standard cable (330102), and both versions support CSA, ATEX, and IECEx approvals. Probe structure differences: 330101 is without armor, while 330102 is with armor. Nominal Probe DC Resistance is 7.59 ± 0.50 Ω for 330101 and 8.73 ± 0.50 Ω for 330102. Overall case length is 2.4 in. (330101) and 8.3 in. (330102), and total length options are 1.0 meter (3.3 feet) and 5.0 meters (16.4 feet), respectively.
