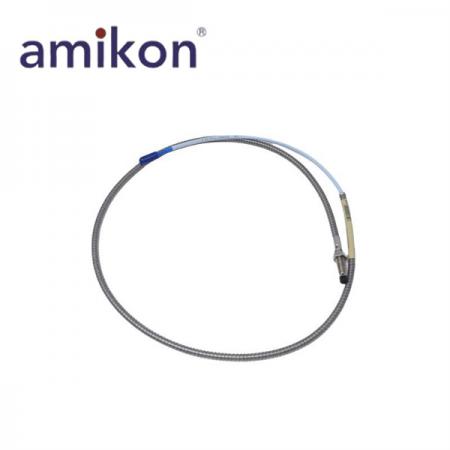

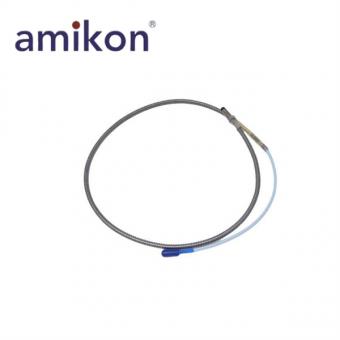

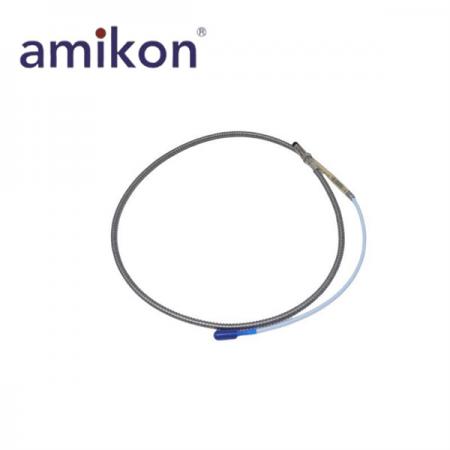

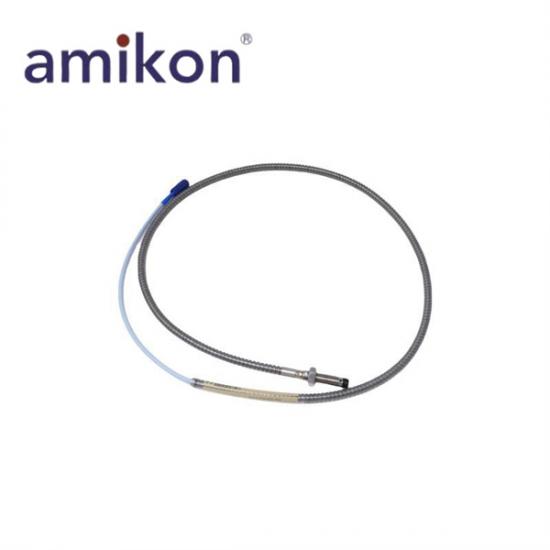

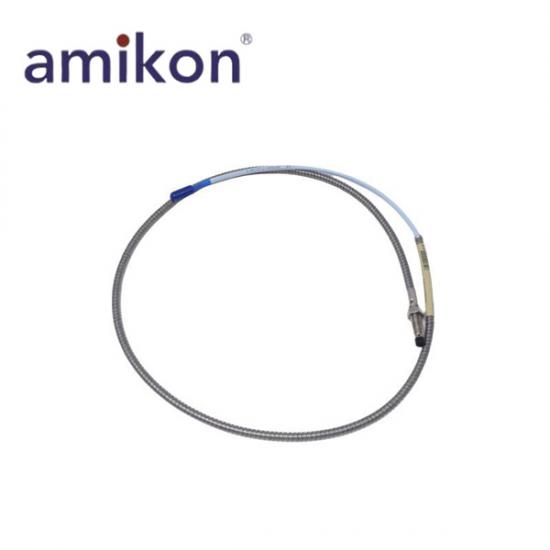

330102-24-72-10-02-00 | Bently Nevada 3300 XL 8 mm Proximity Probes

Manufacturer: Bently Nevada
Product Numbers: 330102-24-72-10-02-00
Product Type: 3300 XL 8 mm Proximity Probes
Place of 0rigin: USA
Unthreaded Length Option: 2.4 in.
Overall Case Length Option: 7.2 in.
Total Length Option: 1.0 meter (3.3 feet)
Connector and Cable-Type Option: Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option: Not required
Nominal Probe DC Resistance: 7.59 ± 0.50 Ω
Probe sealing material: Viton® O ring.
Probe Case Material: AISI 303 or 304 stainless steel (SST).
Probe Tip Material: Polyphenylene sulfide (PPS).
Operating and Storage Temperature: -52°C to +177°C (-62°F to + 350°F)

The Bently Nevada 330102-24-72-10-02-00 3300 XL 8 mm Proximity Probe is part of a complete 3300 XL transducer system designed for precise position and vibration monitoring. Each system includes one 8 mm probe, an extension cable, and a Proximitor sensor, providing an output voltage directly proportional to the distance between the probe tip and the monitored conductive surface. This allows accurate measurement of both static (position) and dynamic (vibration) signals, making it ideal for fluid-film bearing machines, Keyphasor reference, and speed monitoring applications.
Constructed with a stainless steel case (AISI 303 or 304) and a PPS probe tip, the 3300 XL probe features a Viton® O-ring for sealing and operates reliably across extreme temperatures from -52°C to +177°C (-62°F to +350°F). The miniature coaxial ClickLoc connector and standard cable enable secure, straightforward connections, while the system’s nominal probe DC resistance of 7.59 Ω ± 0.50 ensures consistent performance in demanding industrial environments.
The 3300 XL 8 mm system complies fully with API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability. All components are interchangeable and backward compatible with earlier 3300 series probes, extension cables, and Proximitor sensors, eliminating the need for component matching or bench calibration. This flexibility ensures easy upgrades and maintenance, providing long-term reliability and consistent monitoring performance across multiple applications.
