330104-00-11-50-02-00 | Bently Nevada 3300 XL 8 mm Proximity Probe

To confirm availability, request a quote, or place an order, contact our sales team directly. We are ready to assist with compatibility checks, pricing, and lead times.

Leonia |  Email: sales11@amikon.cn |  WhatsApp: +86 18030175807

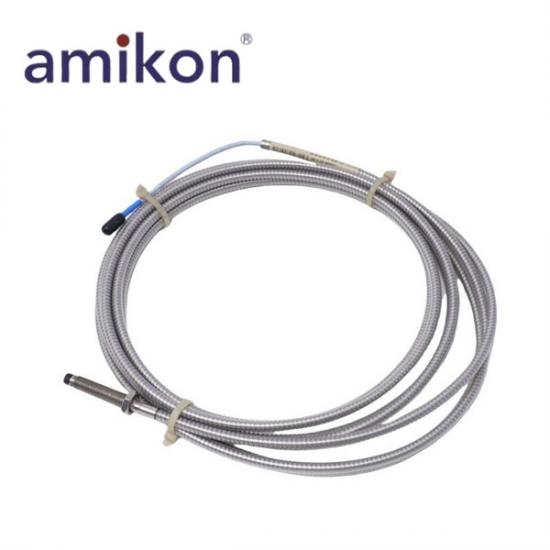

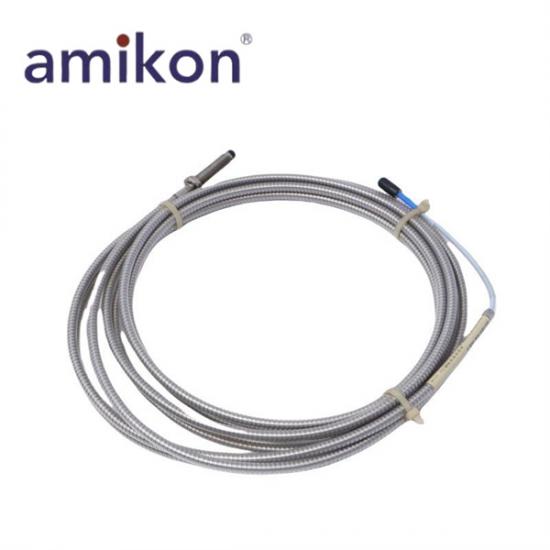

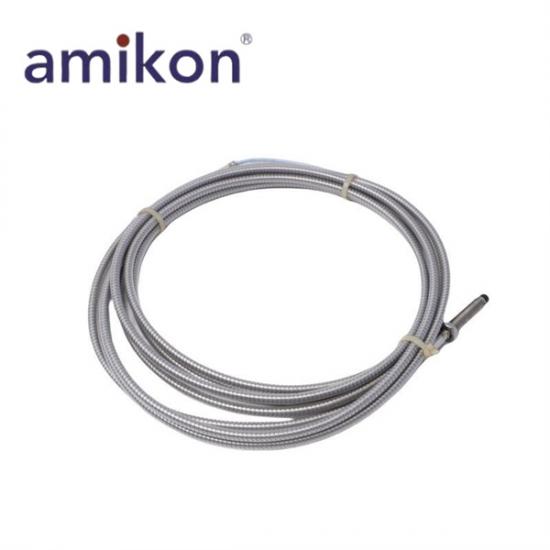

The Bently Nevada 330104-00-11-50-02-00 is a 3300 XL 8 mm proximity probe designed for accurate vibration and position monitoring in rotating machinery. It operates as part of the 3300 XL proximity transducer system, which includes the probe, extension cable, and Proximitor sensor, providing an output voltage directly proportional to the distance between the probe tip and a conductive surface. This model uses an 8 mm probe size with a 3/8-24 UNF mounting thread, and it is constructed with a PPS (polyphenylene sulfide) probe tip and AISI 303/304 stainless steel case. It supports a wide operating and storage temperature range from -52°C to +177°C, making it suitable for demanding industrial environments such as fluid-film bearing machines.
The 330104-00-11-50-02-00 offers a configuration with 0 mm unthreaded length, 110 mm overall case length, and a 5.0-meter total cable length, using a miniature coaxial ClickLoc connector and standard cable type. It is designed to deliver both static (position) and dynamic (vibration) measurement capability, along with applications such as Keyphasor reference and speed monitoring. The system provides high stability and compliance with API 670 standards for mechanical performance, accuracy, and temperature behavior. In addition, it maintains full interchangeability with other 3300 XL components, including probes, extension cables, and Proximitor sensors, allowing flexible system integration without the need for individual component matching or recalibration.

Manufacturer: Bently Nevada
Product Numbers: 330104-00-11-50-02-00
Product Type: 3300 XL 8 mm Proximity Probe
Place of 0rigin: USA
Probe Tip Material:  Polyphenylene sulfide (PPS).
Probe Case Material: AISI 303 or 304 stainless steel (SST).
Operating and Storage Temperature: -52°C to +177°C (-62°F to + 350°F)
Probe Relative Humidity: Less than a 3% change in Average Scale Factor (ASF) when tested in 93% humidity in accordance with IEC standard 68 2 3 for up to 56 days.
Armor (optional on both): Flexible AISI 302 or 304 SST with FEP outer jacket.
Part Number-AA-BB-CC-DD-EE
A: Unthreaded Length Option --- 00 = 00 mm
B: Overall Case Length Option --- 11 = 110 mm
C: Total Length Option --- 50 = 5.0 meters (16.4 feet)
D: Connector and Cable-Type Option --- 02 =  Miniature coaxial ClickLoc connector, standard cable
E: Agency Approval Option --- 00 = Not required
