330104-00-17-10-11-05 | Bently Nevada 3300 XL 8 mm Proximity Probes

Manufacturer: Bently Nevada
Product Numbers: 330104-00-17-10-11-05
Product Type: 3300 XL 8 mm Proximity Probes
Place of 0rigin: USA
Nominal Probe DC Resistance: 7.59 ± 0.50 Ω
Unthreaded Length Option: 00 mm
Overall Case Length Option: 170 mm
Total Length Option:  1.0 meter (3.3 feet)
Connector and Cable-Type Option: Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
Agency Approval Option: CSA, ATEX, IECEx  Approvals
Probe Case Material: AISI 303 or 304 stainless steel (SST).
Maximum Altitude: 2000 meters
Probe Tip Material: Polyphenylene sulfide (PPS).
Operating and Storage Temperature: -52°C to +177°C (-62°F to + 350°F)
Probe sealing material: Viton® O ring.

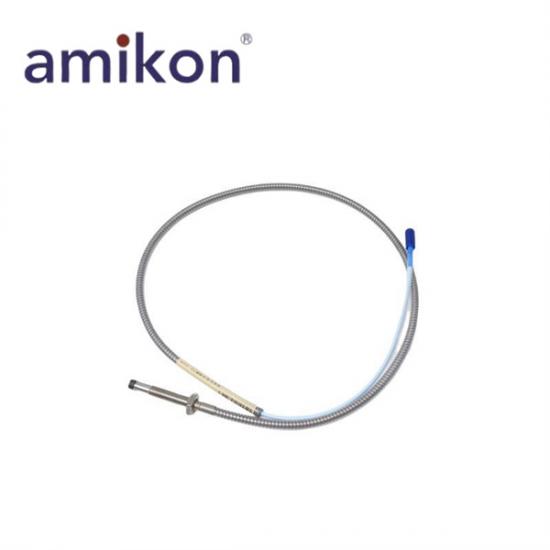

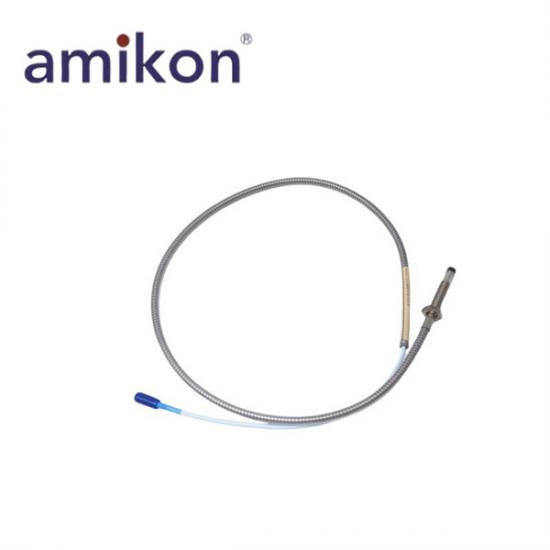

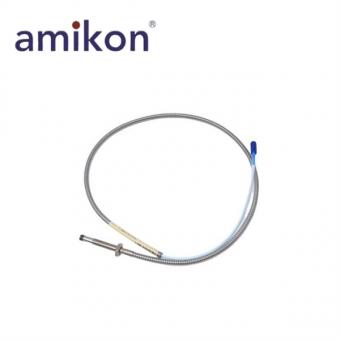

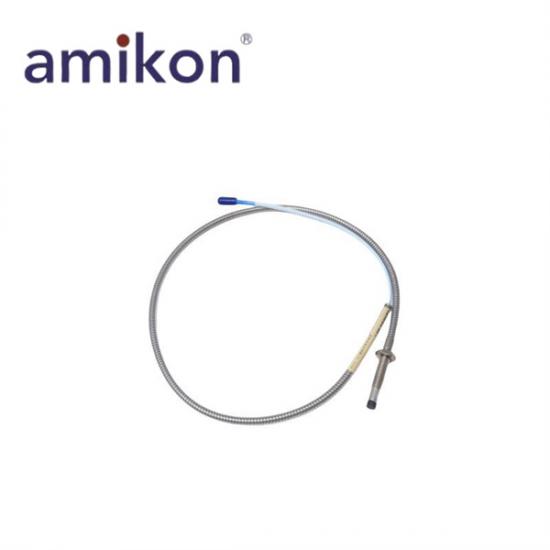

The Bently Nevada 330104-00-17-10-11-05 3300 XL 8 mm Proximity Probe is a high-performance eddy-current probe designed for precise vibration and position monitoring in fluid-film bearing machinery. It features a 170 mm overall case length and a 1.0-meter (3.3 feet) total cable with a miniature coaxial ClickLoc connector and protector. The FluidLoc cable prevents leakage of oils or other fluids, while the Viton® O-ring ensures reliable sealing. Constructed from AISI 303 or 304 stainless steel with a PPS probe tip, the probe withstands extreme conditions, operating at temperatures from –52°C to +177°C (–62°F to +350°F) and altitudes up to 2000 meters.
The 330104-00-17-10-11-05 probe is a core component of the 3300 XL 8 mm Proximity Transducer System, which also includes a 3300 XL extension cable and a 3300 XL Proximitor sensor. The system produces an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, supporting both static (position) and dynamic (vibration) measurements. This makes it ideal for Keyphasor reference, speed monitoring, and critical vibration analysis in rotating machinery.
All 3300 XL 8 mm systems, including the 330104-00-17-10-11-05, are fully compliant with API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability. They provide complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for individual calibration. Additionally, this probe maintains backward compatibility with non-XL 3300 series 5 mm and 8 mm components, allowing flexible integration into existing systems where an 8 mm probe fits the available mounting space.
