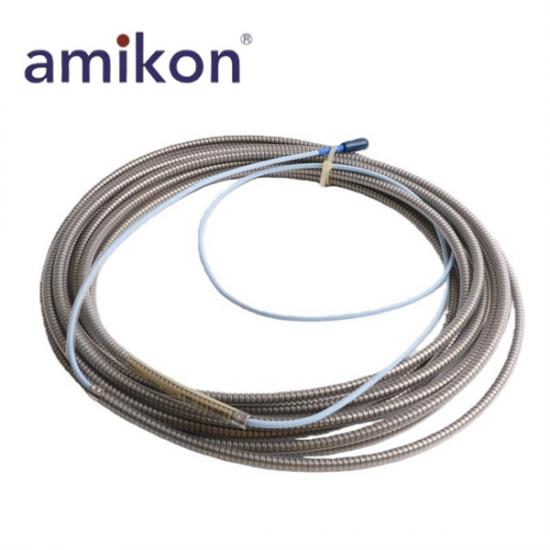

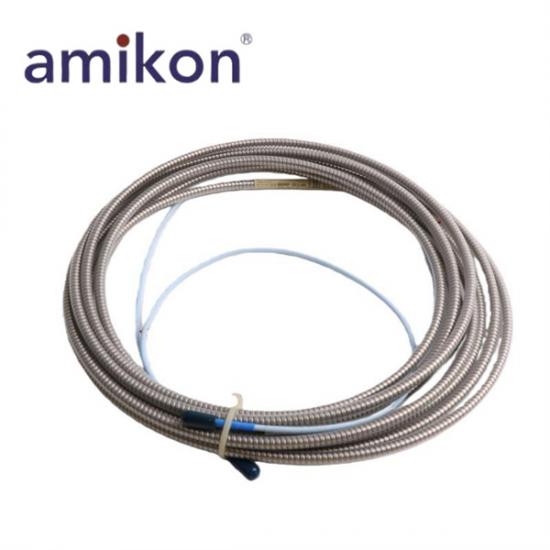

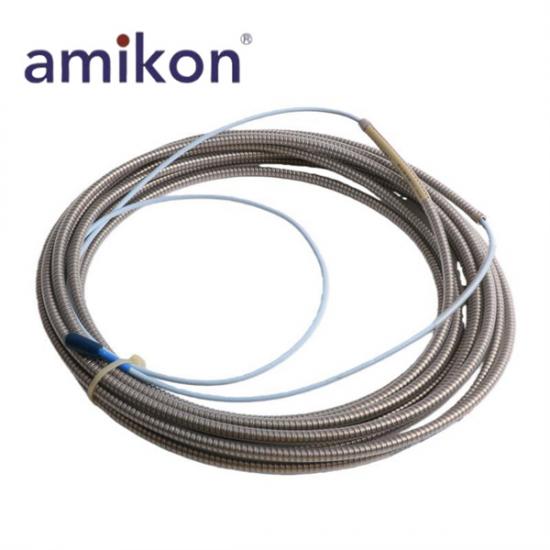

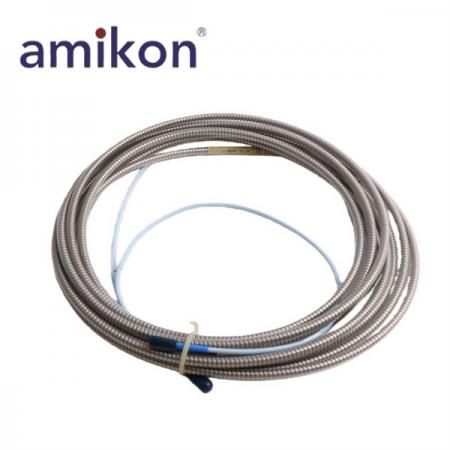

330130-060-01-05/330130-075-11-05/330130-070-11-05 | Bently Nevada 3300 XL Standard Extension Cable

To confirm availability, request a quote, or place an order, contact our sales team directly. We are ready to assist with compatibility checks, pricing, and lead times.

Leonia |  Email: sales11@amikon.cn |  WhatsApp: +86 18030175807

The Bently Nevada 330130-060-01-05, 330130-075-11-05, and 330130-070-11-05 are 3300 XL standard extension cables designed to ensure reliable signal transmission between proximity probes and monitoring systems. All three models use 75 Ω triaxial cable construction with FEP insulation, delivering stable electrical performance with typical capacitance of 69.9 pF/m. Built for demanding environments, these cables operate within a wide temperature range from -52°C to +177°C and maintain performance under humidity levels from 5% to 95% non-condensing. High-quality connector materials such as gold-plated brass or beryllium copper, combined with a secure torque specification of 0.565 N·m, provide dependable mechanical and electrical connections.
The shared design features across Bently Nevada 330130-060-01-05, 330130-075-11-05, and 330130-070-11-05 include identical impedance, insulation type, environmental ratings, and certification approvals (CSA, ATEX, IECEx). Each cable also incorporates advanced construction improvements such as CableLoc technology for enhanced pull strength and optional FluidLoc capability to prevent fluid migration. The differences between the three models are defined by cable length and cable type. Bently Nevada 330130-060-01-05 provides a 6.0-meter armored cable configuration, while 330130-070-11-05 and 330130-075-11-05 use armored FluidLoc cable designs for improved sealing performance. In terms of length, 330130-070-11-05 offers 7.0 meters, and 330130-075-11-05 extends to 7.5 meters, making these options suitable for installations requiring longer cable runs and enhanced environmental protection.

Manufacturer: Bently Nevada
Product Numbers: 330130-060-01-05/330130-075-11-05/330130-070-11-05
Product Type: 3300 XL Standard Extension Cable
Place of 0rigin: USA
Extension cable capacitance : 69.9 pF/m (21.3 pF/ft) typical
Standard cable: 75 Q triaxial, fluoroethylene propylene (FEP) insulated
Extended Temperature Range cable: 75Ω triaxial, perfluoroalkoxy (PFA) insulated
Minimum Cable Bend Radius: 25.4 mm (1.0 in)
Connector Material: Gold-plated brass or gold plated beryllium copper
Maximum Connector Torque: 0.565 N•m (5 in•lbf)
Operating and Storage Temperature: -52°C to +177°C (-62°F to +350°F)
Relative Humidity: 5% to 95%, non-condensing

Ordering Information for Extension Cables
330130-AAA-BB-CC
A:  Cable Length Option --- 060 = 6.0 meters (19.7 feet) / 075 = 7.5 meters (24.6 feet)  / 070 = 7.0 meters (22.9 feet)
B: Connector Protector and Cable Option --- 01 = Armored cable / 11 = Armored FluidLoc cable
C: Agency Approval Option --- 05 = CSA, ATEX, IECEx  Approvals
