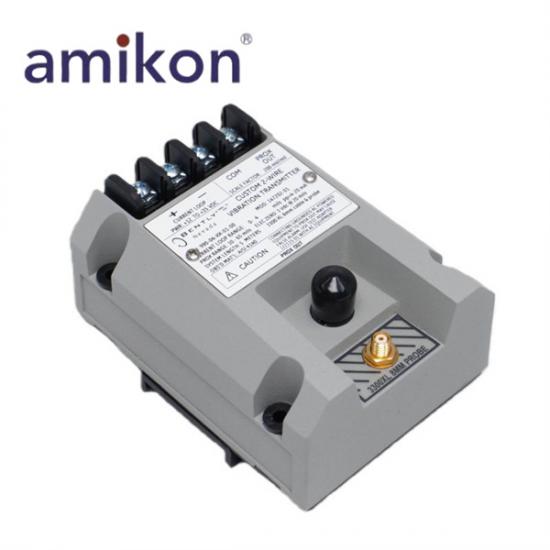

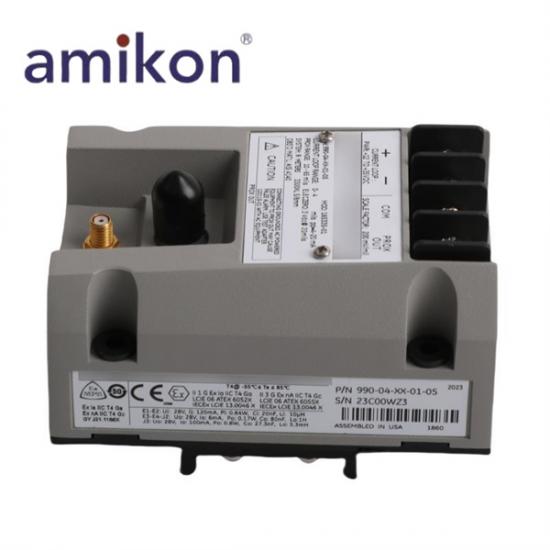

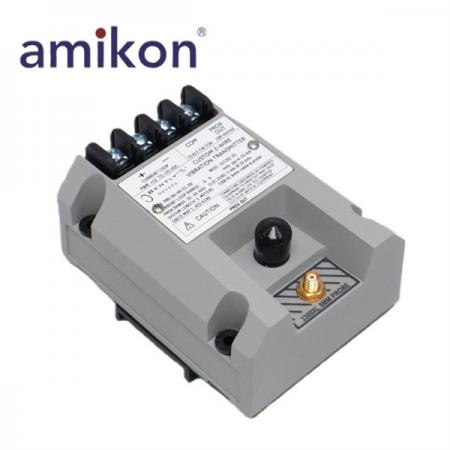

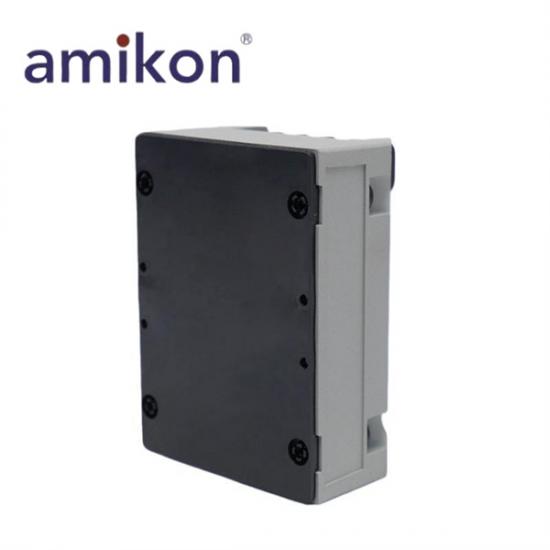

990-04-70-03-00 Vibration Transmitter - Bently Nevada

/ Get a Quote in Minutes /

Need fast pricing for your automation part? Our team responds quickly with accurate quotes, even for hard-to-find or obsolete modules. Let us help you reduce downtime and secure the right solution—fast.

Contact

Manager: Leonia

Email: sales11@amikon.cn

Whatsapp: +8618030175807

/ Technical Information /

Manufacturer: Bently Nevada
Product Numbers: 990-04-70-03-00
Product Type: Vibration Transmitter
Place of 0rigin: USA
Full-scale Option: 0-4 mils pp (0-100 μm pp)
System Length: 7.0 meters (23.0 feet)
Mounting Option: DIN clips and screws
Agency Approval: Not required
Input: Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.
Power:  Requires +12 to +35 Vdc input at the transmitter terminal.
4 to 20 mA: signal output 4 to 20 mAdc over specified full scale range in 2-wire configuration.
Operating temperature: -35°C to +85°C (-31°F to +185°F)
Storagetemperature: -52°C to +100°C (-62°F to +212°F)

/ Product Overview /

The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system.The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).
The transmitter conditions the signal into appropriate peak to-peak vibration amplitude engineering units, and provides this value as a proportional 4 to 20 mA industry-standard signal as the input to the control system where machinery protection alarming and logic occurs.
The 990 transmitter provides the following notable features:

• Integrated Proximitor Sensor requires no external unit
• Non-isolated PROX OUT and COM terminals plus a coaxial connector to provide a dynamic vibration and gap voltage signal output for diagnostics.2
• Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment.
• Test Input pin for quick verification of loop signal output, using a function generator as the input.
• A Not OK/Signal Defeat circuit prevents high outputs or false alarms due to a faulty proximity probe or loose connection.
• Choice of DIN-rail clips or bulkhead mounting screws as standard options simplifies mounting.
