/ Technical Information /

Manufacturer: Schleicher
Product Numbers: A9C30212
Product Type: Impulse Relay iTL
Place of 0rigin: France
ange of product: Acti9
Product name: Acti9 iTL
Product or component type: Impulse relay
Device short name: iTL
Device application: Standard
Poles: 2P
Pole contact composition: 2 NO
[In] rated current: 16 A
Network type: AC
[Uc] control circuit voltage: 48 V AC 50/60 Hz, 24 V DC
Network frequency: 50/60 Hz
[Ue] rated operational voltage: 250 V AC 50/60 Hz
Control type: Remote and manual control, Coil deconnection
Control signal type: Impulse
Switching frequency: 100 switching operations/day, 5 switching operations/minute
Impulse duration: 50 ms...1 s
Remote control type: Illuminated push-button 3 mA
Local signalling: ON/OFF indication
Mounting mode: Fixed
Mounting support: DIN rail
9 mm pitches: 2
Relative humidity: 95 % at 55 °C
Ambient air temperature for operation: -20…50 °C
Ambient air temperature for storage: -40…70 °C

/ Product Overview /

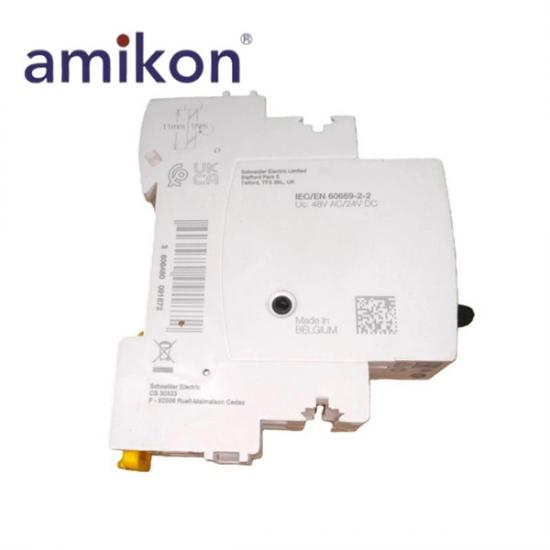

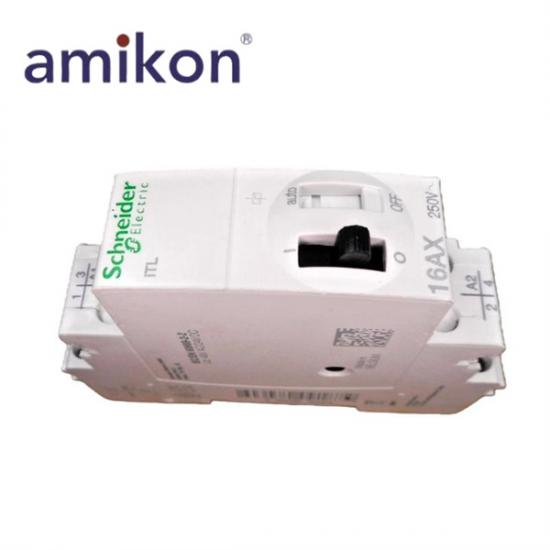

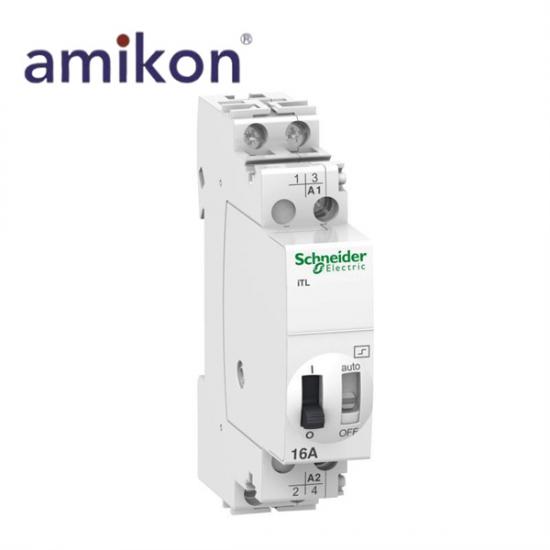

This Acti9 iTL is a modular impulse relay. This 2P device has 2 normally open contacts. Rated current is 16A, 24VAC to 250VAC operating voltage and it operates with 48VAC or 24VDC control voltage. Electrical endurance goes up to 200000 cycles for AC-21 or 100000 cycles for AC-22. The switching frequency is 100 switching operations/day or 5 switching operations/minute. The duration of the command order should be between 50ms to 1s. It is mainly used for lighting control applications. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Pollution degree is 3. Overvoltage category is IV. The dimensions are (W) 18mm x (H) 84mm x (D) 60mm. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 70°C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.
