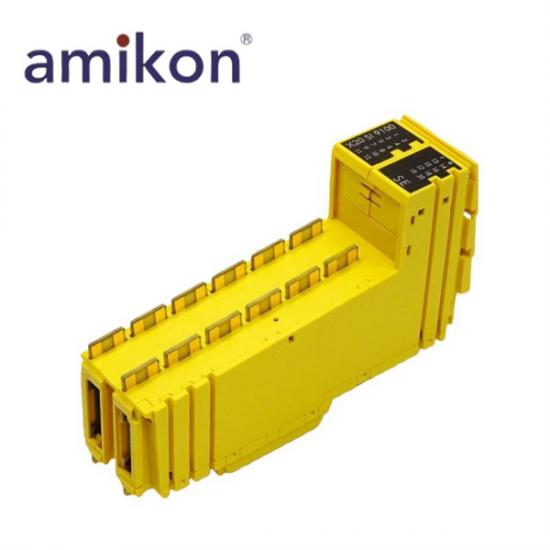

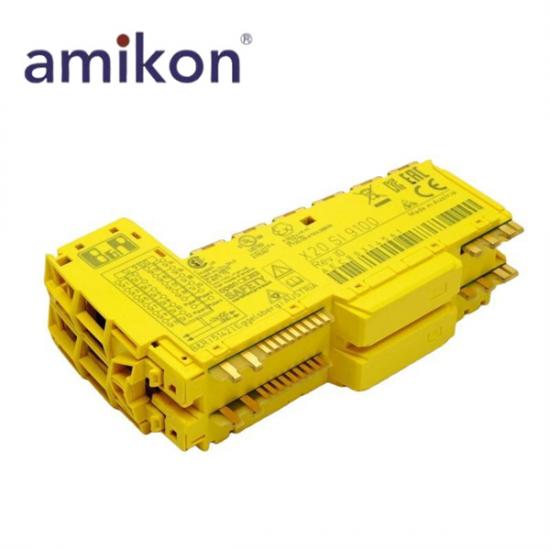

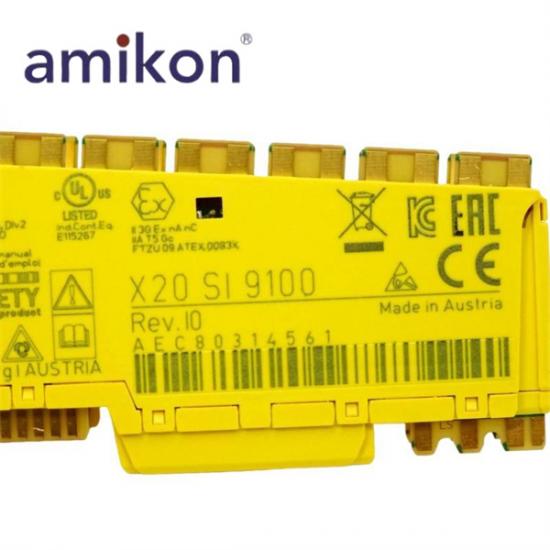

B&R X20SI9100 Safe Digital Input Module

/ Get a Quote in Minutes /

Need fast pricing for your automation part? Our team responds quickly with accurate quotes, even for hard-to-find or obsolete modules. Let us help you reduce downtime and secure the right solution—fast.

Contact

Manager: Leonia

Email: sales11@amikon.cn

Whatsapp: +8618030175807

/ Technical Information /

Manufacturer: B&R
Product Numbers: X20SI9100
Product Type: Safe Digital Input Module
Place of 0rigin: Austria
I/O module: 20 safe type A digital inputs, 4 pulse outputs, 24 VDC
General information
B&R ID code: 0xAEC8
Status indicators: I/O function per channel, operating state, module status
Module run/error: Yes, using LED status indicator and software
Inputs: Yes, using LED status indicator and software
Function: Module functionality
Standalone mode: No
Bus: 0.4 W
Internal I/O: 1.6 W
Nominal voltage: 24 VDC
Voltage range: 24 VDC -15% / +20%
Integrated protective function: Reverse polarity protection
Hardware: ≤150 μs
Software: Configurable between 0 and 500 ms
Input voltage: 24 VDC -15% / +20%
Input current at 24 VDC: Min. 2 mA to max. 3.28 mA
Input resistance Min.: 7.33 kΩ
Error detection time: 200 ms
Insulation voltage between channel and bus: 500 Veff
Low: <5 VDC
High: >15 VDC
Line length between signal source (pulse output or external signal) and input: Max. 60 m with unshielded line, Max. 400 m with shielded line
Horizontal mounting orientation: 0 to 60°C
Vertical mounting orientation: 0 to 50°C

/ Product Overview /

B&R X20SI9100 is a safe digital input module designed for safety-related industrial automation systems requiring reliable signal acquisition and monitoring. The module provides 20 safe type A digital inputs together with 4 pulse outputs and operates with a nominal voltage of 24 VDC. B&R X20SI9100 supports configurable software input filters for each channel, allowing adjustment of switch-on and switch-off behavior to improve signal stability and testing gap handling. The module is equipped with LED status indicators for I/O function, module status, and operating condition monitoring through both hardware indication and software diagnostics.
B&R X20SI9100 is suitable for safety applications up to PL e and SIL 3 and supports monitoring of paired input channels for simultaneity evaluation. The module can process signals from safety devices such as E-stop buttons and safety light curtains while allowing configurable discrepancy monitoring between signal pairs. B&R X20SI9100 also provides pulse signals for sensor line diagnostics, with pulse patterns derived from the module serial number and pulse channel number. The module supports line lengths up to 60 m with unshielded cables and up to 400 m with shielded cables and is designed for X20 12-pin terminal blocks with operation in horizontal mounting orientations from 0 to 60°C and vertical mounting orientations from 0 to 50°C.
