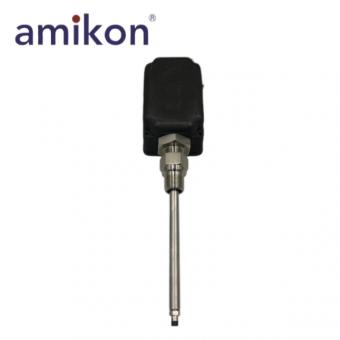

Bentley Nevada 330800-16-00-039-03-02 PROXPAC XL Proximity Transducer Assembly

▲Price on Request

Contact : Sales manager. Leonia

[ RFQ E-mail : sales11@amikon.cn ]

[ Mobile/WhatsApp : +8618030175807 ]

▲Product Description

The design of the PROXPAC XL* Proximity Transducer Assembly is similar to our 31000/32000 Proximity Probe Housing Assemblies. The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor* sensor. This design makes the PROXPAC XL Assembly a completely self-contained proximity probe system, and eliminates the need for an extension cable between the probe and its associated Proximitor sensor. It also eliminates the need for a separate Proximitor housing, as the field wiring connects directly between the monitors and PROXPAC XL Assemblies.

Technical Specifications

Brand: Bently Nevada
Module: 330800-16-00-039-03-02
Description: PROXPAC XL Proximity Transducer Assembly
Country: USA
Detection Mastery
• Gap Precision: 0.25-2.3mm range (10-90 mils)
• Surface Adaptability: 15.2mm min flat target
• Thermal Resilience: -51°C cold start capability
• Cable Chemistry: FEP insulation for 177°C exposure
Mechanical Design
• Load Bearing: 912N horizontal force tolerance
• Vibration Control: Extra-soft silicone isolation
• Seal System: Neoprene O-ring + 304 stainless chain
• Thread Lock: 3/4-14 NPT with 260 in·lb torque
Electrical Edge
• Power Profile: -17.5Vdc to -26Vdc input
• Signal Purity: 50Ω output, 75Ω cable impedance
• Noise Rejection: 2mV/V supply sensitivity
• Connector: Gold-plated ClickLoc* contacts
