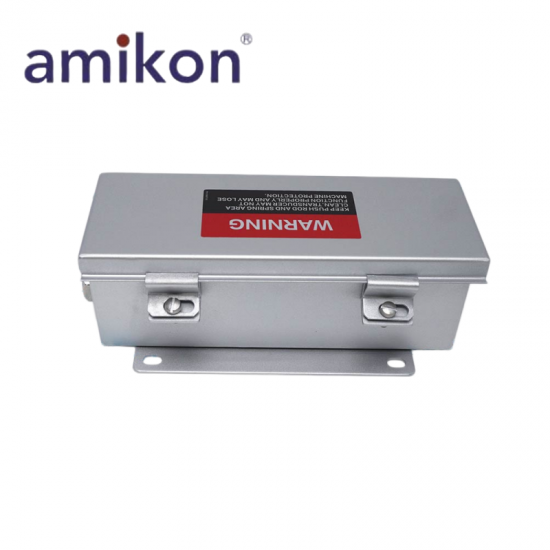

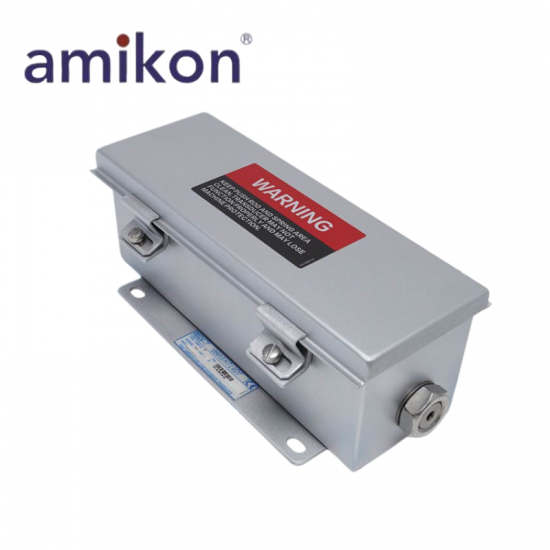

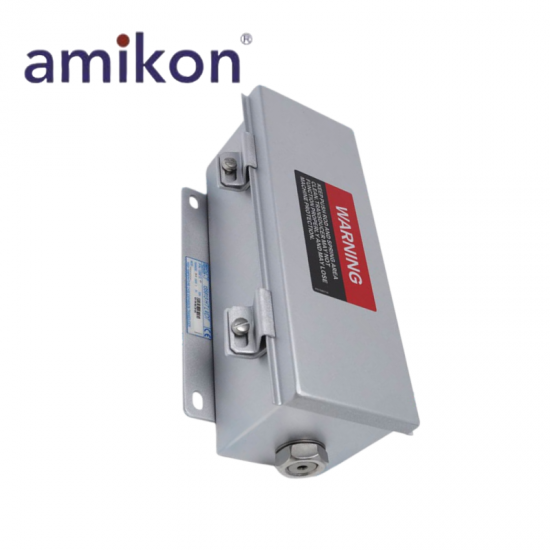

Bently Nevada 135613-01-01 Case Expansion Transducer

Product Model

135613-01-01

Product Parameters

Case Expansion Transducer

Country of origin

USA

Place of shipment

Xiamen, China

Estimated Shipping Size

2.5x11.2x24.2cm

Weight

0.4 kg

Manufacturer

Bently Nevada

Voltage type

DC

Wire size

22

Connection type

4-wire; 2 m connection cable

Cable sheath material

Polyvinyl chloride (PVC)

Light type

Polarity free red light

Degree of protection

IP67; NEMA 6

Load current

Max. 100 mA (Ie, PNP);  Max. 250 mA (Ie, NPN, 120 > 50°C)

Output current (mA) - max

250 mA

Rated control supply voltage (Us) at DC

10 V to 30V

Switching frequency

500 Hz

Ambient operating temperature

-40 °C to 70 °C

Detects and transmits industrial control signals for automation and monitoring systems.

Provides stable DC-powered operation within a voltage range of 10 V to 30 V DC.

Supports high-speed signal switching with a switching frequency up to 500 Hz for fast-response automation applications.

Enables reliable connection and signal transmission through a 4-wire interface with integrated 2-meter connection cable.

Supports industrial load control with output current capacity up to 250 mA.

Provides compatibility with both PNP and NPN output configurations for flexible system integration.

Delivers clear operational status indication through polarity-free red light signaling.

Ensures stable operation in harsh industrial environments with IP67 and NEMA 6 protection against dust, moisture, and water ingress.

Maintains reliable performance under extreme environmental temperatures ranging from -40 °C to 70 °C.

Supports industrial automation, machinery monitoring, equipment protection, and process control applications requiring durable and stable signal sensing performance.
