Introduction: The Core Guarantee for Industrial Equipment Monitoring, the Key Value of Housing Components
In industries such as petroleum refining, chemical engineering, power generation, and metallurgy, the stable operation of rotating equipment and reciprocating machinery directly determines production safety and efficiency. As a core component for monitoring equipment vibration and displacement, the installation stability, environmental adaptability, and explosion-proof safety of proximity probes are crucial for ensuring accurate monitoring data and long-term equipment operation. As a global benchmark brand in industrial monitoring, Bently Nevada has been deeply involved in equipment condition monitoring technology for decades. Its 21000 series proximity probe housing assembly, with its all-metal structure, explosion-proof certification, compliant design, and flexible adaptability, has become the preferred solution for externally installed proximity probes in industrial sites. Among them, the 21000-28-05-15-050-03-02 model, as the core best-selling product in this series, perfectly adapts to various hazardous working conditions and conventional industrial scenarios with standardized configuration and stringent quality control. It provides reliable installation and protection support for equipment monitoring systems, helping enterprises reduce equipment failure risks and improve operational efficiency.
Currently, industrial production demands increasingly higher accuracy and safety in equipment monitoring, especially in explosive hazardous areas, where the explosion-proof performance and compliance of equipment components have become stringent requirements. The Bently Nevada 21000-28-05-15-050-03-02 proximity probe housing assembly strictly adheres to international standards and industry specifications, balancing protective performance with ease of installation. It not only solves the protection challenges of external installation of proximity probes but also, through multiple certifications and standardized design, adapts to various industrial scenarios worldwide, becoming a core preferred product in automation spare parts procurement.
I. Product Positioning: All-Metal Explosion-Proof Housing, Suitable for External Mounting Needs of Proximity Probes

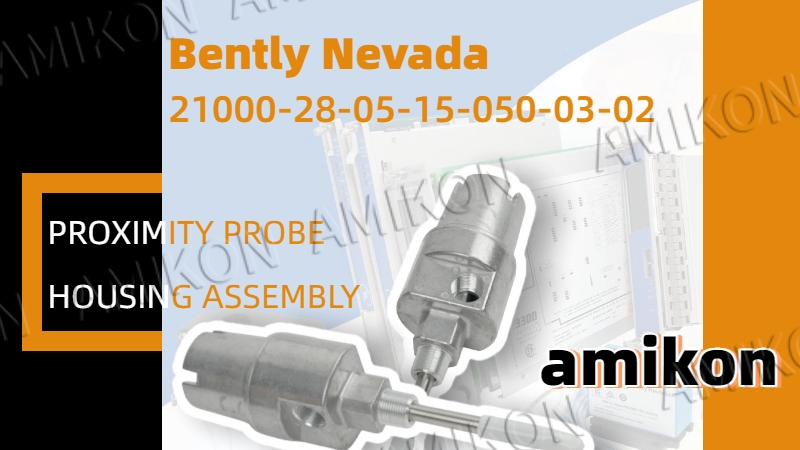

The Bently Nevada 21000-28-05-15-050-03-02 is an all-metal proximity probe housing assembly, specifically designed for external mounting of proximity probes. Together with the 24701 stainless steel housing assembly and the 164818 compact housing assembly in the same series, it forms a complete solution for Bently Nevada external mounting proximity probes. This model features a composite structure of an aluminum alloy body and a 304 stainless steel sleeve, balancing lightweight design and corrosion resistance. It can adapt to temperature and humidity variations in normal industrial environments and cope with complex working conditions in hazardous areas, providing comprehensive protection for the proximity probe and preventing probe damage or data distortion caused by environmental corrosion, vibration, and impact.
Compared to traditional enclosure components, the core advantage of the 21000-28-05-15-050-03-02 model lies in its "standardized configuration + scenario adaptability." It can be directly adapted to the Bently Nevada 3300 XL 8mm proximity probe without complex modifications. It is widely used in monitoring rotating equipment and reciprocating machinery in industries such as petroleum refining, chemical engineering, and power generation, covering vibration and displacement monitoring of key equipment such as pumps, fans, compressors, and steam turbines, providing a stable installation foundation for equipment condition diagnosis and fault early warning. As a Bently Nevada original factory standard spare part, this model is fully compatible with the brand's related monitoring systems, ensuring the stability and compatibility of the monitoring link and avoiding system failures or monitoring deviations caused by non-original parts.
II. Core Advantages: Explosion-proof Compliance + Structural Optimization, Building a Solid Safety Line for Equipment Monitoring
As an enclosure component suitable for industrial hazardous areas, the 21000-28-05-15-050-03-02 model demonstrates outstanding advantages in explosion-proof performance, structural design, and compliance, making it a reliable choice for industrial sites. Firstly, it boasts comprehensive explosion-proof certifications, making it suitable for hazardous areas. This model is certified by the Canadian Standards Association (CSA) and possesses an explosion-proof rating, allowing direct application in various explosive hazardous areas. It effectively prevents explosion risks caused by electrical sparks and equipment overheating, fully complying with the selection requirements for electrical equipment in hazardous areas as outlined in the "Design Code for Electrical Installations in Explosive Atmospheres" (GB50058-2014). Furthermore, the enclosure can be paired with a hazardous area-certified proximity probe, meeting intrinsically safe application requirements. Its CSA Type 4 enclosure certification ensures reliable protection even in harsh environments, making it suitable for explosive gas environments such as Zone 1 and Zone 2.
Secondly, its all-metal structure provides superior protective performance. The product combines an aluminum alloy body with a 304 stainless steel sleeve. The aluminum alloy material enables lightweight installation, while the 304 stainless steel sleeve enhances corrosion and wear resistance, effectively resisting the corrosive effects of oil, dust, and moisture in industrial environments, extending the product's service life. The housing features built-in O-rings and threaded seals, ensuring excellent sealing performance and preventing dust and moisture from entering and damaging the proximity probe, thus guaranteeing long-term stable operation.
Thirdly, it boasts outstanding compliance and is compatible with industry standards. This model fully complies with the relevant requirements of the American Petroleum Institute (API) 670 standard regarding externally mounted proximity probe housings. It exhibits excellent compatibility with monitoring equipment conforming to API 670 standards, such as the NARI SJ90 series, allowing seamless integration into existing industrial monitoring systems without concerns about compliance, reducing the risks associated with equipment upgrades and spare parts replacements.
Fourthly, its flexible structural design facilitates convenient installation and maintenance. The housing assembly includes a dome cap, threaded conduit connection interface, optional length sleeve, reverse-mounted proximity probe, seals and optional conduit accessories, support adapter, and other components. The modular design facilitates on-site installation, commissioning, and maintenance. The removable dome cap and threaded interface facilitate the installation and replacement of the proximity probe; the optional length sleeve can be flexibly adjusted according to the installation location to adapt to different operating conditions, significantly improving the flexibility and efficiency of on-site installation.
III. Structural Composition: Modular Configuration, Adaptable to Diverse Installation Scenarios
The Bently Nevada 21000-28-05-15-050-03-02 proximity probe housing assembly adopts a modular design. The components work together to ensure both protective performance and ease of installation. Its core components include:
1. Dome Cover: Connected to the housing body via threads, providing a seal and protection against external impurities, facilitating the installation and maintenance of the proximity probe;
2. Threaded Interface: Used for conduit connection, ensuring orderly cable routing and enhancing the housing's sealing performance, adapting to the cabling requirements of industrial environments;
3. Optional Length Sleeve: Depending on the installation location, a suitable sleeve length can be selected. The sleeve length is determined by the installation position of the probe and housing, and the probe lead must be longer than the sleeve to ensure stable signal transmission;
4. O-rings and Threaded Seals: Provide multiple seals to prevent dust, moisture, oil, etc., from entering the housing, protecting the proximity probe from corrosion and ensuring monitoring accuracy;
5. Reverse Mounting Proximity Proximity Proximity: Paired with 3300 The XL 8mm probe, with optional hazardous area certification, enables precise monitoring of equipment vibration and displacement, providing data support for equipment fault early warning.
6. Optional Accessories: Includes conduit fittings and support adapters. The minimum length of the support adapter is 1.5 inches (38 mm), which can be flexibly configured according to installation requirements to improve the stability of the housing installation.
It is worth noting that when the sleeve length exceeds 304 mm (12 inches), additional sleeve supports are required to reduce vibration caused by unsupported long sleeves. Bently Nevada offers probe supports and oil seals (model 37948-01) suitable for long sleeves that need to pass through the inner bearing housing. Custom sleeve supports can also be customized according to customer needs to further improve the product's adaptability to different scenarios.
IV. Application Scenarios: Covering Multiple Industries, Empowering Precise Equipment Monitoring
Leveraging its explosion-proof compliance, flexible structure, and superior protection, the Bently Nevada 21000-28-05-15-050-03-02 proximity probe housing assembly is widely used in various industrial sectors, including petroleum refining, chemical, power, metallurgy, and papermaking. It is particularly suitable for various hazardous conditions and conventional industrial scenarios, becoming a core component for critical equipment monitoring.
In the petroleum refining industry, this housing assembly can be used for external installation of proximity probes on equipment such as pumps, compressors, and turbines in refineries. In explosive hazardous areas, it enables precise monitoring of equipment vibration and displacement, providing early warnings of equipment failures, preventing unplanned downtime, and ensuring the continuous and safe operation of refining and chemical production. This aligns perfectly with Baker Hughes' equipment monitoring needs in the petrochemical field.
In the chemical industry, facing complex operating conditions such as high corrosion, high humidity, and explosive gases, the all-metal structure and explosion-proof performance of this housing assembly effectively protect the proximity probe from environmental corrosion, ensuring accurate monitoring data. This provides reliable support for the condition monitoring of equipment such as chemical reactors, pipeline pumps, etc., meeting the explosion-proof equipment requirements of the "anti-illegal and non-compliant" special governance campaign in chemical enterprises.
In the power industry, this model can be used for monitoring critical equipment such as steam turbines and generators in thermal power plants and hydropower stations. It adapts to the installation needs of both conventional and hazardous areas, helping power companies achieve real-time monitoring and fault early warning of equipment status, improving equipment operation and maintenance efficiency, and ensuring stable power supply.
Furthermore, this housing assembly can also be applied to the monitoring of rotating equipment in industries such as metallurgy, papermaking, and cement, adapting to the needs of different installation scenarios. It provides a solid guarantee for the long-term stable operation of various industrial equipment and is an indispensable core product in the procurement of automated spare parts.
V. Spare Part Value: Original Manufacturer Quality, Stable Supply, Reduced Maintenance Costs
As a standard Bently Nevada original manufacturer spare part, the 21000-28-05-15-050-03-02 proximity probe housing assembly boasts original manufacturer quality assurance. Strictly adhering to the brand's quality control standards, every step from raw material procurement and production to finished product testing undergoes rigorous checks to ensure product stability and reliability. This effectively avoids risks such as installation compatibility issues, substandard protection performance, and distorted monitoring data caused by non-original parts.
For industrial enterprises, choosing original manufacturer spare parts not only ensures perfect compatibility with existing monitoring systems but also provides comprehensive technical support and after-sales guarantees, extending equipment lifespan and reducing equipment maintenance costs and downtime losses. As a professional automation spare parts trader, we leverage a stable supply chain system to provide readily available stock and fast delivery of the Bently Nevada 21000-28-05-15-050-03-02 model. We also offer professional services such as product selection consultation and installation guidance to help companies quickly complete spare parts replacement and equipment maintenance, ensuring continuous production.
Furthermore, this model complements the Bently Nevada 24701 stainless steel housing assembly and the 164818 compact housing assembly. We can provide customized selection solutions based on customers' installation space, environmental corrosiveness, and hazardous area classification requirements, meeting the needs of different scenarios and further improving the convenience and rationality of spare parts procurement.
6. Technical Specifications
| Item | Specific Parameters |
| Manufacturer | Bently Nevada |
| Product Type | Proximity Probe Housing Assembly |
| Country of Origin | USA |
| Body Material | Aluminum alloy body, 304 stainless steel sleeve |
| Compatible Probe | 3300 XL 8mm proximity probe, optional hazardous area certification |
| Probe Cable Length | 0.5 meters (20 inches) |
| Support Adapter (Optional C size) | Minimum length 1.5 inches (38 mm) |
| Probe Penetration Depth (Optional D size) | 5.0 inches |
| Accessories | 1 x 3/4-14 NPT plug, 1 x 3/4-14 to 1/2-14 NPT reducer, 1 x Cable Sealing Clip (including adapter for the following cable sizes) Grommets: 1/8 to 3/16 inch, 1/4 to 5/16 inch, 5/16 to 3/8 inch) |
| Mounting Thread | 3/4-14 NPT |
| Certifications | CSA certified, explosion-proof certified, CSA Type 4 housing certified, API 670 compliant |
| Applicable Scenarios | External mounting of industrial proximity probes, suitable for hazardous areas and general scenarios in industries such as petroleum refining, chemical, and power generation |
| Sleeve Requirements | Sleeve length is determined based on the installation location; the probe lead must be longer than the sleeve; for lengths exceeding 304 mm (12 inches), additional sleeve support is required |
Conclusion
Bently Nevada The 21000-28-05-15-050-03-02 proximity probe housing assembly, a core spare part in the field of industrial equipment monitoring, perfectly solves the protection, compatibility, and safety challenges of external installation of proximity probes with its all-metal explosion-proof structure, complete compliance certifications, and flexible modular design. It provides reliable support for monitoring critical equipment in industries such as petroleum refining, chemical engineering, and power generation. Its original manufacturer quality assurance, wide-ranging adaptability, and convenient installation and maintenance not only improve the accuracy and stability of equipment monitoring but also help enterprises reduce operating costs and downtime losses, facilitating intelligent equipment monitoring and efficient operation and maintenance.
In the wave of industrial automation and intelligent transformation, the importance of equipment monitoring is increasingly prominent. Choosing a compliant, reliable, and compatible proximity probe housing assembly has become crucial for enterprises to ensure production safety and enhance core competitiveness. The Bently Nevada 21000-28-05-15-050-03-02 model, with its brand advantages, product strength, and comprehensive compatibility capabilities, has become a preferred product for automation spare parts procurement.
