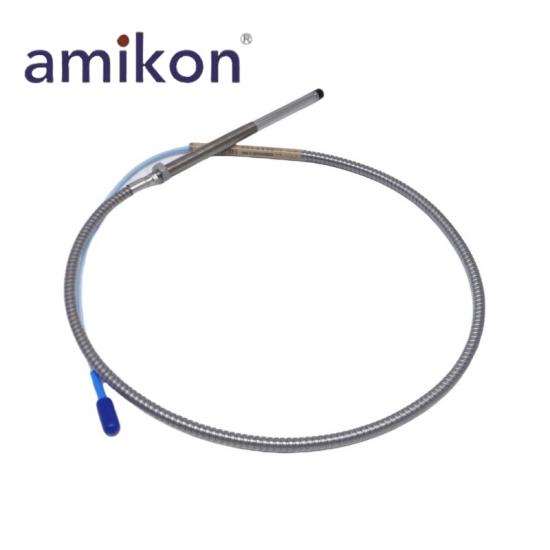

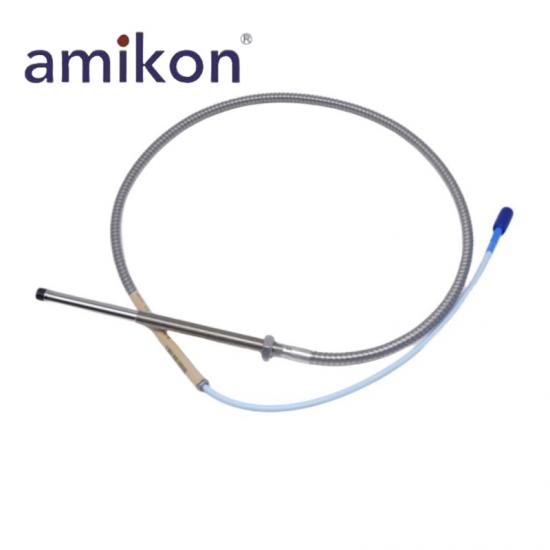

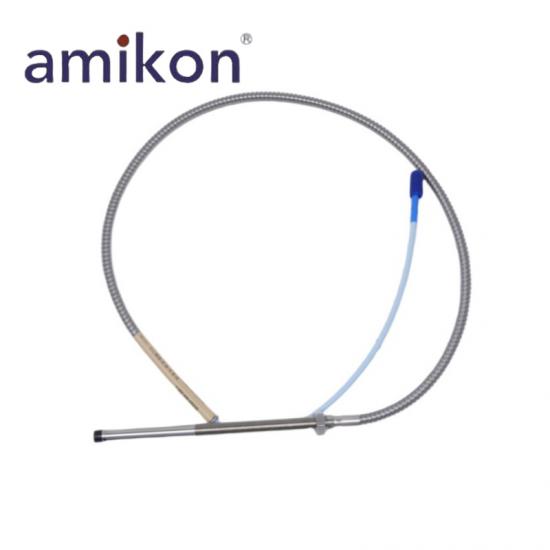

Bently Nevada 330102-20-55-10-02-00 3300 XL 8mm Proximity Probe

Sales manager：Jim Pei

Email：sales6@amikon.cn

Wechat: ZXH18020776782

Phone/WhatsApp：+86 18020776782

Product Specifications

Manufacturer: Bently Nevada

Part Number: 330102-20-55-10-02-00

Product Type: 3300 XL 8mm Proximity Probe

Weight: 0.15kg

Country of origin: USA

Place of shipment: Xiamen, China

Thread Size & Housing Type: 3/8-24 UNF English Thread, Stainless Steel 303 (AISI)

Unthreaded Length: 2 in.

Overall Case Length: 5.5 in.

Total Length: 1.0 meter 1.0 meter (3.3 feet)

Connector and Cable-Type: Miniature coaxial ClickLoc connector, standard cable

Agency Approval: Connector and Cable-Type

Linear Measuring Range: 7.87 V/mm (200 mV/mil) ±5% (when combined with 3300 XL system)

Probe Tip Material: Polyphenylene Sulfide (PPS)

Operating Temperature Range: -52°C to +177°C (-62°F to +350°F)

Maximum Rated Torque: 33.9 N·m (300 in·lbf)

Advantage

l Provides exceptional mechanical durability through fully flexible stainless steel armored protection, effectively shielding the probe from slicing, crushing, impact, and abrasion in harsh industrial environments.

l Enhances environmental resistance by isolating the signal cable from dust, fly ash, and corrosive chemicals, ensuring stable operation in severely contaminated plant conditions.

l Delivers high structural integrity using patented TipLoc™ technology, forming a molecular-level bond between the PPS probe tip and stainless steel body to prevent tip separation and leakage failures.

l Ensures superior sealing performance against high-pressure lubricants and turbine oils, reducing the risk of fluid ingress and long-term degradation.

l Offers high installation reliability with CableLoc™ strain relief design capable of withstanding up to 330 N (75 lbf) pull force, minimizing cable failure due to accidental tension.

l Improves electrical performance through gold-plated ClickLoc™ connectors, providing corrosion resistance, strong conductivity, and zero signal attenuation.

l Enables fast, tool-free installation with a secure audible locking mechanism that reduces connection errors and improves field efficiency.
