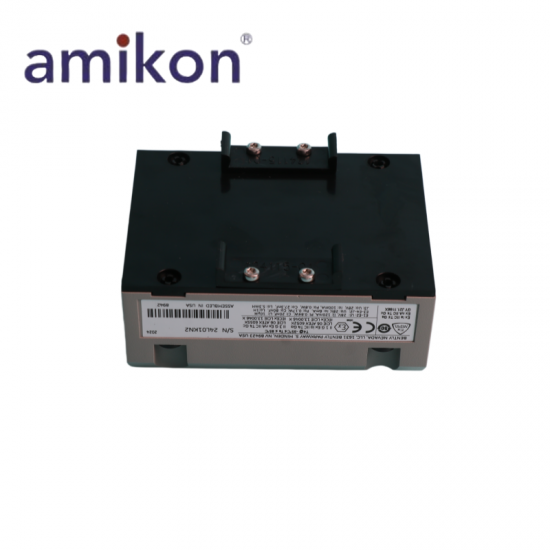

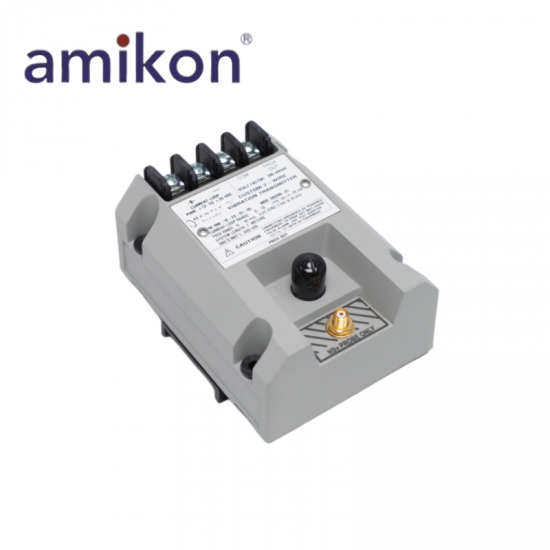

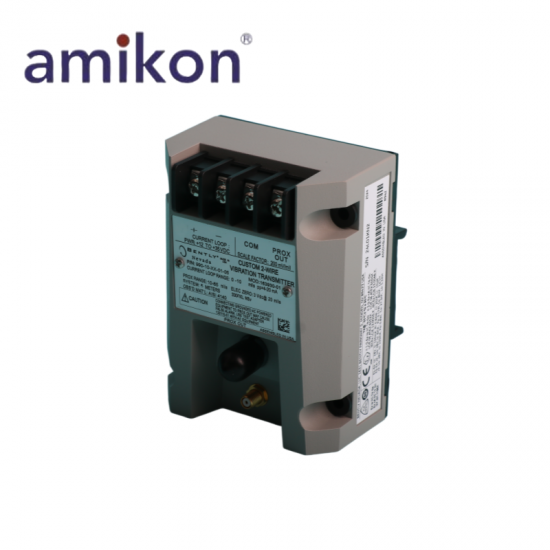

Bently Nevada 990-10-XX-01-00 163930-01 990 Vibration Transmitter

Contact Information

Sales manager：Jim Pei

Email：sales6@amikon.cn

Wechat: ZXH18020776782

Phone/WhatsApp：+86 18020776782

Product Details

• Product Name：Bently Nevada 990-10-XX-01-00 163930-01 990 Vibration Transmitter
• Item NO.：990-10-XX-01-00 163930-01
• Weight: 0.5 kg
• Estimated shipping dimensions: 10x7.3x5.5cm
• Country of origin: USA
• Brand：Bently Nevada
• Place of shipment: Xiamen,Fujian,China
• Output Signal: Proportional 4 to 20 mA (DC)
• Full-Scale Range: 0-10 mils peak-to-peak (0-250 μm pp)
• Linear Range: 10 to 65 mils (0.25 to 1.65 mm)
• Frequency Response: 5 Hz to 6,000 Hz (+0, -3 dB)
• Incremental Scale Factor: 7.87 mV/μm (200 mV/mil) typical
• Power Supply: +12 to +35 VDC at transmitter terminals (Loop-powered)
• Mounting Options: 35 mm DIN rail clips (specified by "01" option)

The Bently Nevada 990-10-XX-01-00 (163930-01) Vibration Transmitter is a compact, loop-powered monitoring device designed for OEM applications such as centrifugal air compressors, small pumps, motors, and fans. It converts input from a 3300 NSv proximity probe into a proportional 4–20 mA signal representing peak-to-peak vibration levels for machinery protection and control systems. The unit integrates an internal Proximitor sensor, eliminating the need for external conditioning hardware. It features adjustable zero and span settings, diagnostic outputs, and a test input for signal verification. With robust potted construction, DIN-rail or bulkhead mounting options, and reliable operation in high-humidity environments, it provides a practical solution for continuous vibration monitoring in compact industrial equipment.

Company services

① After-sales support: 12 months warranty coverage

② Fast logistics: Ready stock, global shipping, full tracking

③ Secure packaging: Anti-static, shockproof, moisture-resistant protection

④ Quality assurance: Thorough testing before delivery

⑤ Company strength: Trusted supplier with proven industry experience

Common questions

Product Model Table

Disclaimer

Amikon limited specializes in sourcing and supplying new and surplus automation products. We are an independent reseller and are not an authorized distributor, dealer, or agent of any manufacturers listed. All product names, trademarks, brands, and logos are used solely for identification purposes. Their use does not imply any affiliation, endorsement, or authorization by the respective rights holders.
