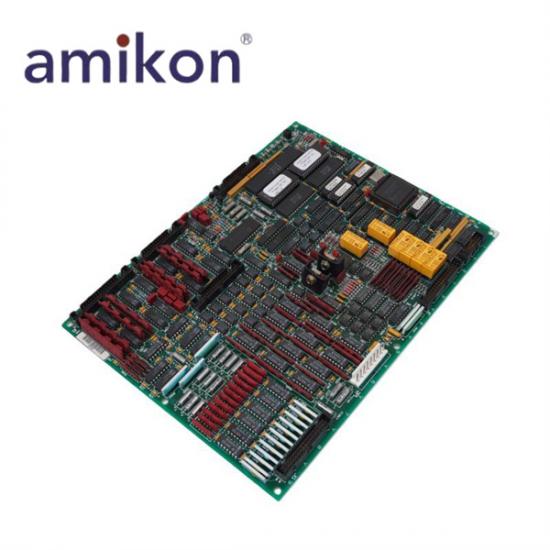

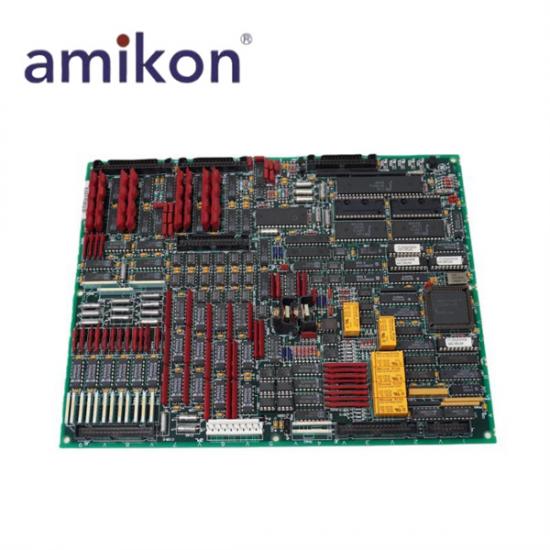

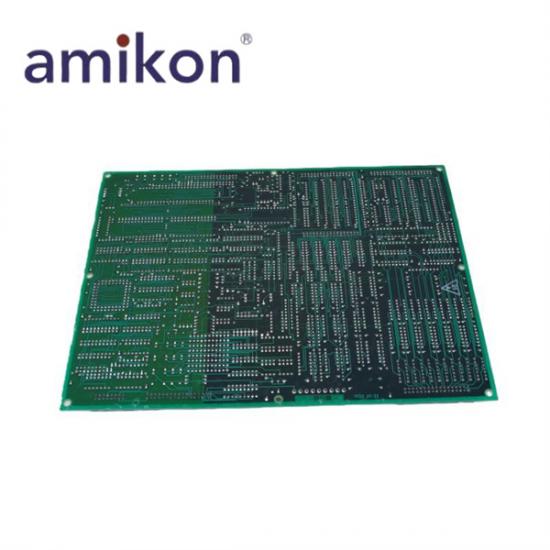

GE DS200TCQAG1BFD DS215TCQAG1BZZ01A RST Analog I/O Board

—— Contact Us ——

—— Product Information ——

The GE DS200TCQAG1BFD / DS215TCQAG1BZZ01A RST Analog I/O Board is designed for use in the GE Speedtronic Mark V Triple Redundancy control system. It is installed in the control core rack and operates as a key interface module for processing multiple analog and dynamic turbine signals, including 4-20 mA, ±10 V, LVDT, speed, and vibration inputs.
In operation, the board converts and manages input signals while delivering servo valve drive current output using a 3-to-2 voting logic structure for enhanced reliability. Configuration is performed through onboard J1–J9 physical jumpers, and diagnostics are supported via a 34/40-pin socket interface with 6 status LEDs. It operates on +5 VDC, ±15 VDC, and 24 VDC power supplies, with a working temperature range of 0°C to +60°C and storage capability from -40°C to +70°C. Relative humidity tolerance is 5% to 95% non-condensing, making it suitable for demanding industrial turbine control environments.

—— Technical Specifications ——

Manufacturer: GE
Product Numbers: DS200TCQAG1BFD DS215TCQAG1BZZ01A
Product Type: RST Analog I/O Board
Place of 0rigin: USA
Application System: GE Speedtronic Mark V (Triple Redundancy).
Installation Location: Control Core Rack.
Input Signals: 4-20mA, ±10V, LVDT, Speed, Vibration.
Output Signals: Servo Valve Drive Current (3-to-2 Voting).
Parameter Configuration: Onboard J1-J9 Physical Jumpers.
Interface Diagnostics: 34/40-pin Socket, 6 Status LEDs.
Operating Voltage: +5VDC, ±15VDC, 24VDC.
Operating Temperature: 0°C to +60°C (32°F to 140°F).
Storage Temperature: -40°C to +70°C (-40°F to 158°F).
Relative Humidity: 5% to 95% (Non-condensing).
