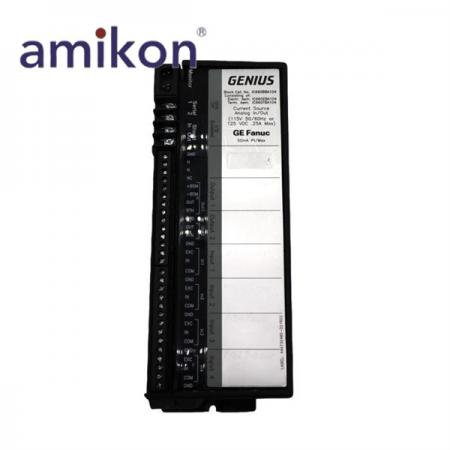

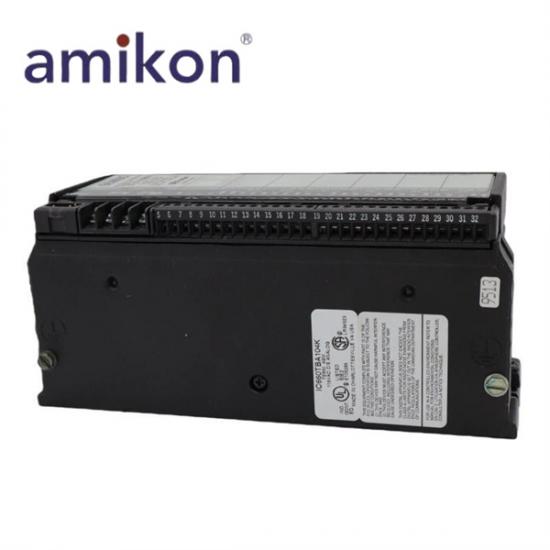

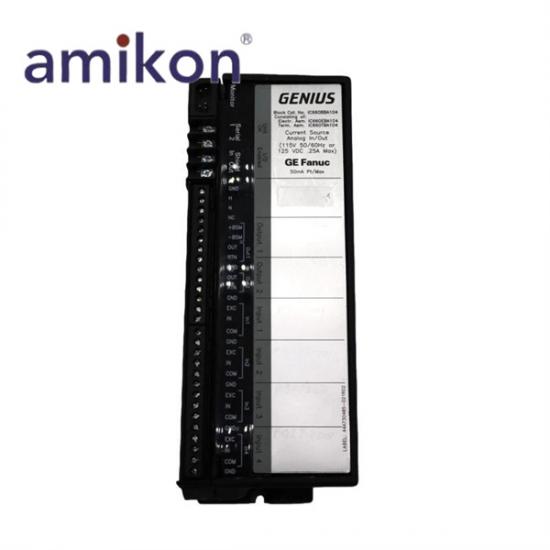

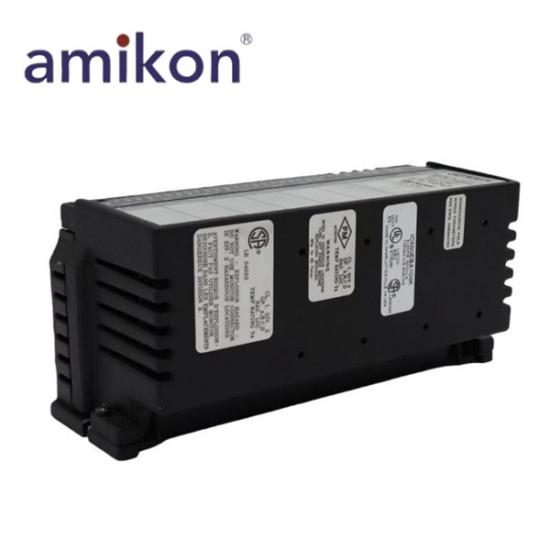

GE IC660BBA104 115 VAC Current-source Analog I/O Block

To confirm availability, request a quote, or place an order, contact our sales team directly. We are ready to assist with compatibility checks, pricing, and lead times.

Leonia |  Email: sales11@amikon.cn |  WhatsApp: +86 18030175807

Current Source Analog I/O blocks are used to interface a controller to devices that provide or accept 4mA to 20mA analog signals. Two

block versions are available:

115 VAC Current-source Analog I/O Block (IC66*BBA104)

24/48 VDC Current-source Analog I/O Block (IC66*BBA024)

These blocks are identical except for the power supply.

Features

Block features include:

•  Six 4-to-20 mA analog circuits: 4 inputs and 2 outputs
•  Isolated channels
•  No user calibration required for operation
•  Software configurable
•  Advanced diagnostics

 Dedicated Bus Switching Module control

A Current Source Analog I/O block has four 4 to 20mA current inputs.  Each input provides a 24 volt current loop power supply and is isolated from all other circuits within the block.  The two output channels provide power and control of two 4-to-20mA current loops. The output channels and BSM circuitry are electrically common, but

isolated from the inputs.

All circuits on the block support independent selection of linear scaling values.  These values can be used to convert the internal

values into engineering units suitable for the application.

Block diagnostics include:

•  input low and high alarm detection
•  overrange and underrange detection for inputs and outputs
•  input open wire detection
•  output feedback error detection
•  internal fault reporting

A dedicated digital output is provided to drive a Bus Switching

Module (version IC66*BSM021 only).

Manufacturer: GE

Product Numbers: IC660BBA104

Product Type: 115 VAC Current-source Analog I/O Block

Place of 0rigin: USA

Input accuracy (at 25° C): 0.1% of full scale reading *

Input resolution: 1µA

Input conversion time: 16.6ms to 400ms (user selectable)

Range: 4mA to 20mA

Overrange capacity: 0mA to 25mA

Input diagnostics: Under / Overrange, High /Low Alarm, Open Wire

Channel to channel isolation: 1500V rms

Thermal drift (from 25° C): 70 PPM per degree C typical

Input Impedance: 100 Ohms +/-5%

Normal Mode Rejection: -45 dB at 50, 60 Hz

Open circuit voltage: 24VDC

Short circuit current: < 75mA

Loop impedance: 1000 Ohms maximum (0mA to 20mA), 800 Ohms maximum (20mA to 25mA)

Output accuracy at 25° C: 0.15% of full scale reading

Output resolution: 6µA

Output update frequency: 6ms to 8ms typical

Range: 4mA to 20mA

Overrange capacity: 0mA to 24mA

Output diagnostics: Underrange, Overrange, Feedback error

Output load: 0 Ohms to 850 Ohms

Thermal drift (from 25°C): 35 PPM per degree C typical

Operating temperature: 0°C to +60°C (+32° to +140° F)

Storage temperature: -40° to +100°C (-40° to +212° F)

Humidity: 5% to 95% (non-condensing)

Vibration: 5-10 Hz 0.2”(5.08mm) displacement,10-200 Hz at 1G
