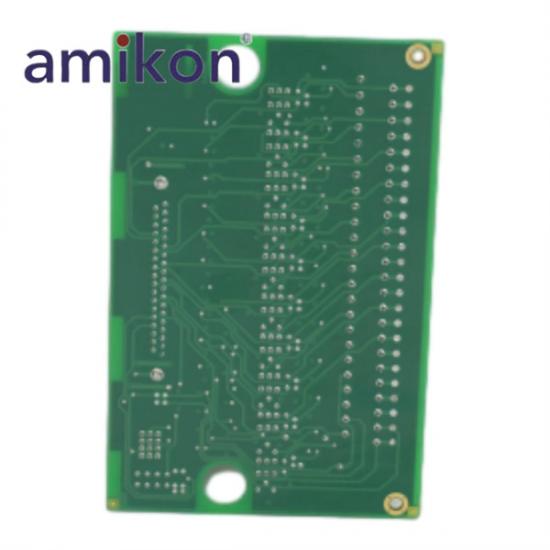

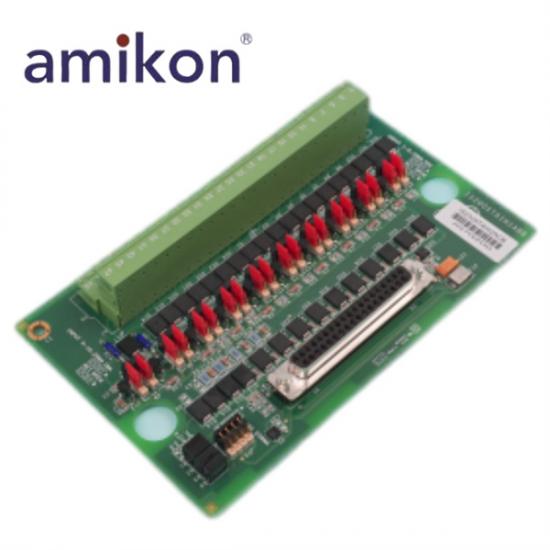

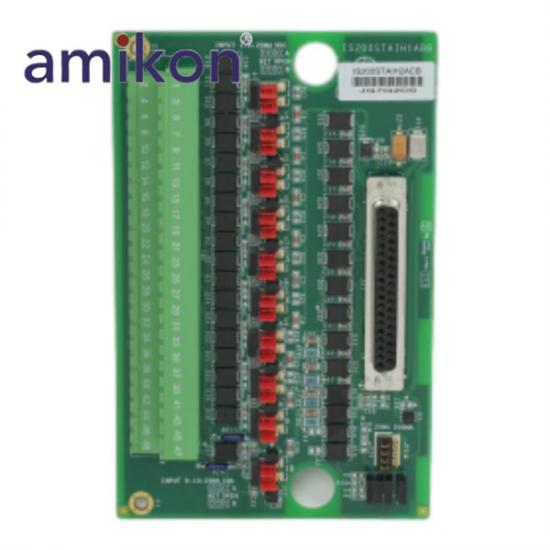

GE IS200STAIH2ACB IS200STAIH1ABB Simplex Analog I/O Terminal Board

Manufacturer: GE
Product Numbers: IS200STAIH2ACB IS200STAIH1ABB
Product Type: Simplex Analog I/O Terminal Board
Place of 0rigin: USA
Output Voltage: 24 VDC (powering field sensors/transmitters).
Input Signal: 0 to 20 mA current or 5/10 VDC voltage (10 channels total).
Output Current: 0 to 20 mA (Channel 1) / configurable up to 0 to 200 mA (Channel 2) via jumper.
Maximum Lead Resistance: 15 Ω (maximum line impedance per channel loop).
Number of Terminal Blocks: 48 high-density European plug-in terminals.
Insulation Method: Optocoupler isolation.
Operating Temperature Range: -30°C to +65°C.
Storage Temperature Range: -40°C to +85°C.
Relative Operating Humidity: 5% to 95% (non-condensing).
Corrosion protection standard: Complies with ANSI/ISA-S71.04 G3 environmental corrosion protection certification.



The GE IS200STAIH2ACB and IS200STAIH1ABB are single-loop analog I/O terminal boards designed specifically for Mark VIe turbine control systems. As the core electrical bridge between field devices and the PAIC analog control module, these boards integrate 10 analog input channels and 2 analog output channels, specifically designed for efficient acquisition of 4-20 mA current or voltage transmitter signals from industrial fields.
In terms of hardware architecture, the terminal board employs a high-density DIN rail slot compact mounting design, equipped with 48 Euro-block terminal blocks to simplify complex high-density cable connections in the field. Furthermore, the device incorporates advanced opto-insulation circuitry and a high-interference, anti-corrosion coating, not only blocking high-frequency electrical noise in harsh industrial environments but also featuring an integrated electronic tag ID chip, fully supporting automatic software and hardware version identification and remote intelligent fault diagnosis for the main system.
