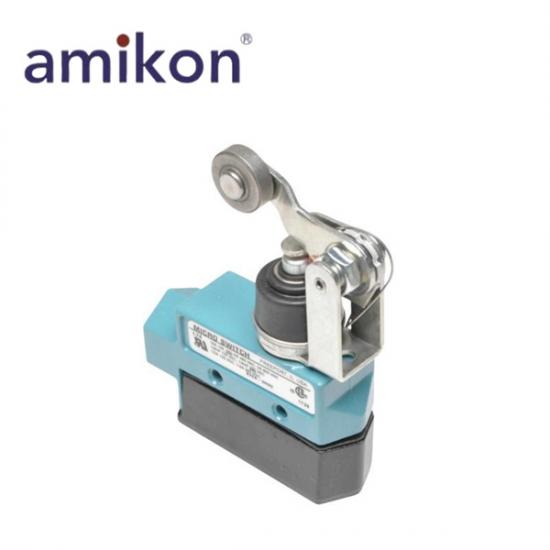

Honeywell BZE6-2RN2 Enclosed Basic Switch

For inquiries about automation spare parts, you can reach out to our dedicated contact manager for fast and professional support.

Manager: Leonia

Email: sales11@amikon.cn

WhatsApp: +86 18030175807

Get in touch for reliable solutions to all your automation spare part needs.

Manufacturer: Honeywell
Product Numbers: BZE6-2RN2
Product Type: Enclosed Basic Switch
Place of 0rigin: USA
Conduit: 1/2 in-14 NPT
Switching options: SPDT (snap-action contacts, 1NO/1NC); DPDT (snap-action contacts, 2NO/2NC)
Sealing: E6: NEMA 1; V6: NEMA 1, 3
Operating temperature: -32 °C to 71 °C [-25 °F to 160 °F] (standard)
Housing material: Zinc die-cast
Approvals: UL, CSA, CE

The MICRO SWITCH BZE/DTE enclosed basic switch features a compact and robust metal housing, providing enhanced operational accuracy and reliable actuation performance. A large junction box facilitates easy wiring. This switch achieves high repeatability of switching points early in the travel phase. This is thanks to its highly tolerant overtravel mechanism, designed to reduce the effects of application drift, thereby improving the switch's long-term accuracy.
The MICRO SWITCH™ E6 (side-mounted) and V6 (flange-mounted) switches are available with or without an actuator seal. Both have a combined insulator/seal bonded inside the bottom housing. Lead washers are used to seal the mounting holes for side-mounted switches. All side-mounted switches are mounted with 6-gauge screws, except for the BZE6-2RN7 (which uses 8-gauge screws). Removing the bottom housing exposes the terminals for easy wiring.

>> Receive a response from our team within 24 hours.
>> All products come with a 1-year quality guarantee.
>> We provide exceptional service at competitive prices.
>> Leverage our years of industry experience and proven expertise.
>> Orders are processed and shipped within 3 business days.
>> Each item is carefully packaged in anti-static, secure packaging.
>> Fast and reliable worldwide delivery via DHL, UPS, EMS, and FedEx.

For more product information, please contact Manager: Leonia --- sales11@amikon.cn
