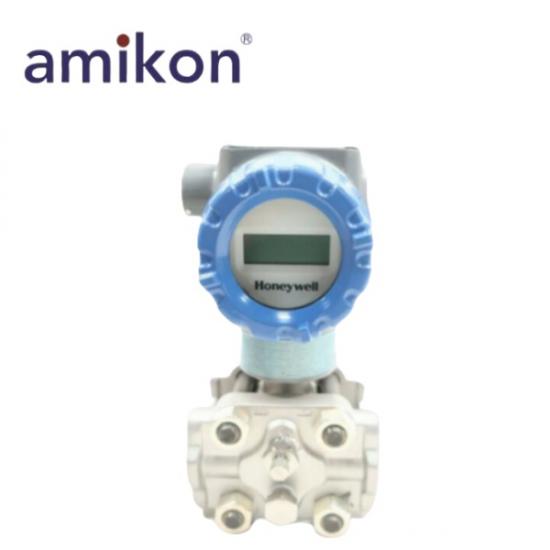

Honeywell STG740-E1GC4A-1-A-AHB-11S-10A0 | STG700 Gauge Pressure Transmitter

➫Part Name Honeywell STG740-E1GC4A-1-A-AHB-11S-10A0 | STG700 Gauge Pressure Transmitter

➫Product Description

STG740 : Gauge Dual Head = URL/Max Span : 400(35) , LRL : -14.7 (-1.0), Min Span : 5 (.35), Units : psi (bar)

Process Head/Reference Head Material : E = 316 Stainless Steel

Barrier Diaphragm Material : E = 316L SS

Fill Fluid : 1 = Silicone Oil 200

Process Connection : G = 1/2" NPT (female), Same as Process Head

Bolt/Nuts Materials : C = Carbon Steel

Vent/Drain Type/Location : 4 = Head type : Dual Ended, Vent type : Standard Vent, Location : End, Vent material : Matches Head Materia

Gasket Materials : A = Teflon® or PTFE (Glass Filled)

Head/Connect Orientation : 1 = Standard, High Side Left, Low Side Right2 / Std Head Orientation

Approvals : D = IECEx Explosion proof, Intrinsically Safe & Non-incendive

Electronic Housing Material & Connection Type : C = material : Polyester Powder Coated Aluminum, Connection : 1/2 NPT, Lighting protection : yes

Output/ Protocol : H = Analog input : 4-20mAdc, Digital protocol : HART Protocol.

Customer Interface Selections : B = Indicator : basic, Language : EN

Application Software : 1 = Standard Diagnostics

Output Limit, Failsafe & Write Protect Settings : 1 = Write protect : Disabled, Fail : High> 21.0mAdc, High & Low Output Limits : Honeywell Std (3.8 - 20.8 mAdc).
