Introduction: The Cornerstone of Reliable Signal Acquisition in Industrial Automation
In modern industrial automation systems, accurate and stable acquisition of analog signals is fundamental for process control, status monitoring, and safety interlocking. From steel metallurgy to cement and building materials, from chemical processes to power energy, key process parameters such as temperature, pressure, and flow rate in production sites need to be converted into digital signals recognizable by the control system through analog input modules. The reliability, accuracy, and anti-interference capability of signal acquisition directly determine the stability of the production process, the consistency of product quality, and even the operational safety of the entire factory.

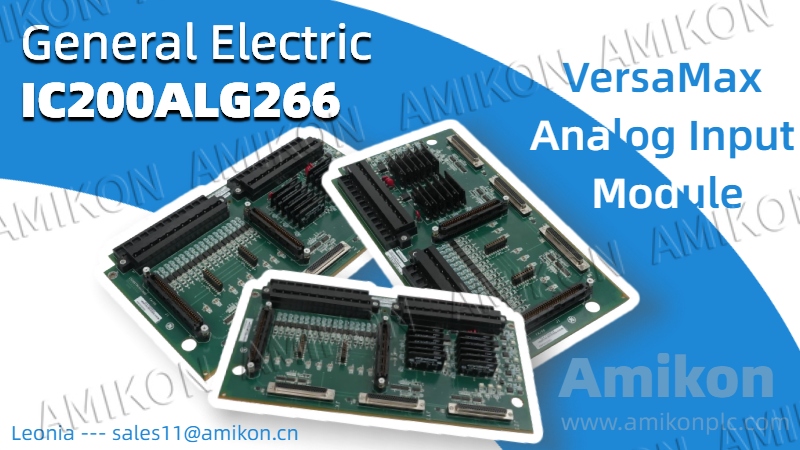

The GE VersaMax IC200ALG266 analog input module is a high-performance component designed to meet the signal acquisition needs of harsh industrial environments. As a 15-channel, 15-bit resolution current-type input module, it not only inherits the high reliability of the VersaMax series but also upgrades its safety certification, input protection, and diagnostic capabilities, becoming an indispensable key component in industrial automation systems.
Module Positioning and Core Advantages: Designed for Safety and Precision
The IC200ALG266 is an enhanced analog input module in the GE VersaMax I/O series, specifically designed for current signal acquisition. It is an upgraded replacement for its predecessor, the IC200ALG264. Its core advantages are concentrated in the following aspects:
First, TUV safety certification is a key feature that distinguishes it from ordinary modules. This module has passed TUV Rheinland certification and can be directly used in safety-related control loops, meeting the GMR system's requirements for safety components and providing compliance assurance for users when building safety interlocking systems.
Second, enhanced input protection capabilities significantly improve the module's field adaptability. Compared to the previous generation's 15VDC overvoltage protection limit, the IC200ALG266 can withstand input fault voltages up to 30VDC, and overvoltage on a single channel will not affect the normal operation of other channels. To address the risk of accidental connection to a 24V field power supply, the module's built-in active protection circuit limits the input current to below 40mA, preventing damage to the sampling resistor due to overcurrent and significantly reducing the risk of module failure caused by incorrect field wiring.
Furthermore, comprehensive diagnostic functions make system maintenance more efficient. The module supports open-circuit detection, internal hardware fault detection, and user-side power loss fault alarms. When the A/D conversion error exceeds ±6%, a fault report will be automatically triggered and the OK indicator light will turn off, helping maintenance personnel quickly locate the problem and reduce unplanned downtime.
Key Function Analysis: From Signal Acquisition to Safety Diagnostics
Flexible Signal Range Configuration
The IC200ALG266 supports two current input ranges, configurable via jumpers on the terminals:
-
Without jumpers, the module defaults to 4-20mA mode, the most commonly used standard signal range in industrial environments. It also supports open-circuit detection, identifying open-circuit faults with signal strength below 3.8mA.
-
With jumpers installed, the module switches to 0-20mA mode, suitable for applications requiring the acquisition of zero-starting-point current signals.
-
Note that jumper configuration must be performed with the module powered off. Operating while the module is powered on may damage the module or cause configuration failure.
15-bit High-Precision Acquisition Performance
-
The module employs a 15-bit A/D converter, offering excellent resolution performance across different input modes:
-
In 4-20mA mode, the resolution reaches 0.5μA/count, accurately capturing minute signal changes;
-
In 0-20mA mode, the resolution is 0.625μA/count, also meeting high-precision acquisition requirements.
-
At room temperature (25℃), the module's typical accuracy is ±0.3% of full scale, with a maximum error not exceeding ±0.5%. Within a wide operating temperature range of 0-60℃, the maximum error is only ±1% of full scale, ensuring stable data acquisition under various operating conditions.
Multiple Fault Protection and Diagnostics
To address the complex interference and fault risks in industrial environments, the IC200ALG266 incorporates multiple protection and diagnostic mechanisms:
-
Overvoltage/Overcurrent Protection: 30VDC fault voltage withstand capability and active current limiting circuitry prevent module damage caused by incorrect wiring;
-
Open Circuit Detection: Detects open circuits in the input circuit in 4-20mA mode, promptly reporting faulty channels;
-
Internal Hardware Diagnostics: Regularly verifies the A/D conversion channel, triggering a fault alarm when the error exceeds ±6%;
-
User-Side Power Loss Detection: Real-time monitoring of the power supply status of the field circuit avoids invalid data acquisition due to power abnormalities.
Compatibility and Application Adaptation: Seamless Integration with VersaMax Systems
The IC200ALG266 module is compatible with all VersaMax series racks, CPUs, and NIUs (Network Interface Units). The following compatibility points should be noted:
-
The module is critically positioned as G4. When replacing previous models, the positioning dial on the rack must be modified to prevent the accidental installation of non-safety certified modules into safe loops.
-
The only incompatible device is the DeviceNet NIU (model IC200DBI001). Systems using this device should be aware of selection limitations.
-
The module requires no external power supply; its operating power is provided directly by the VersaMax backplane, simplifying field wiring. However, it should be noted that the module is only a signal acquisition unit; the field transmitters still require an external power supply.
In practical applications, the IC200ALG266 is widely used in process control systems in industries such as steel metallurgy, cement building materials, chemicals, and power. It is particularly suitable for scenarios with high requirements for signal accuracy, safety compliance, and fault diagnosis capabilities, such as:
-
blast furnace temperature and pressure monitoring systems;
-
cement production line kiln tail flue gas parameter acquisition;
-
chemical reactor level and flow signal acquisition;
-
power plant boiler feedwater flow regulation loops.
Installation and Usage Precautions: Ensuring Long-Term Stable Operation of the Module
To ensure the reliable operation of the IC200ALG266 module, the following points must be during installation and use:
-
Jumper Configuration and Live Operation: It is strictly forbidden to plug, unplug, or modify the current range configuration jumpers while the module is powered on, otherwise it may cause module damage or configuration failure.
-
Field Wiring Standards: Analog signal lines should be laid separately from power cables to avoid electromagnetic interference affecting acquisition accuracy. At the same time, proper grounding of signal loops is required to prevent common-mode interference.
-
Troubleshooting Procedure: When the module's OK indicator light is off, first check for input overvoltage, overcurrent, or open circuit faults. After eliminating external problems, try powering off and restarting the module. If the fault persists, the module may need to be replaced.
-
Environmental Adaptability: The module's operating temperature range is 0-60℃. Avoid installation in high-temperature, humid, or highly corrosive environments. Additional protective measures should be taken if necessary.
-
Safety Circuit Application: When used in safety-related circuits, strictly follow the TUV certification application specifications to ensure that the module's configuration and use meet the overall design requirements of the safety system.
Technical Specifications Overview: Core Parameter List
Number of Channels: 15 single-ended inputs, 1 group
Module ID: FFFFB50F (4-20mA Mode), FFFFB40F (0-20mA Mode)
Input Range: 4-20mA (Default) / 0-20mA (Jumper Configuration)
Resolution: 15-bit, 0.5μA/count (4-20mA), 0.625μA/count (0-20mA)
Accuracy: Typical ±0.3% FS, Max ±0.5% FS @25℃; Max ±1% FS within 0-60℃
Input Impedance: 100Ω
Overvoltage Protection: Supports up to 30VDC fault voltage resistance
Overcurrent Protection: Max 40mA limited current, typical 30mA under 24V wrong connection
Isolation Performance: 250VAC continuous isolation, 1500VAC/1min optocoupler isolation
Filter Feature: 3dB cutoff frequency 24Hz ±20%
Update Cycle: 7.5ms
Backplane Current: 5V: 100mA; 3.3V: 50mA
Safety Certification: TUV approved, suitable for safety-related application circuits
Conclusion: Provides reliable protection for signal acquisition in industrial automation
The GE VersaMax IC200ALG266 analog input module, with its 15-channel high-precision current signal acquisition capability, TUV safety certification, enhanced fault protection, and rich diagnostic functions, has become a high-performance signal acquisition component in the field of industrial automation. It not only solves the pain points of traditional modules in overvoltage protection, open circuit detection, and safety compliance, but also provides users with a convenient upgrade alternative through seamless compatibility with the VersaMax system.
Whether for new projects or upgrades to legacy systems, the IC200ALG266 provides users with stable, accurate, and secure signal acquisition support, helping industrial control systems achieve more efficient and reliable process control and safety management.
FAQ: Answers to Frequently Asked Questions
Q1: How do I configure the jumpers on the IC200ALG266 module? Does the module need to be restarted after configuration?
A1: The jumpers are installed on the module's terminals. Without jumpers, it operates in 4-20mA mode by default. Installing jumpers switches it to 0-20mA mode. Jumper configuration must be performed with the module powered off. After configuration, no further settings are required; powering on again will take effect.
Q2: The module's OK indicator light is off. What could be the cause? How do I fix it?
A2: An off OK light usually indicates that the module has detected an internal hardware fault or a serious input anomaly. First, check each channel for overvoltage, overcurrent, or short circuit faults. After ruling out external problems, try powering on and restarting the module. If the fault persists after restarting, the module hardware is damaged and needs to be replaced.
Q3: Can the IC200ALG266 directly power a field transmitter?
A3: No. The module itself only acquires current signals and does not provide external power. The field transmitter requires a separate external power supply.
Q4: Can this module replace the IC200ALG264 and be installed directly?
A4: Yes, it can be installed directly, but the positioning dial on the rack needs to be modified to change the positioning from G3 to G4 to prevent incorrect installation. Additionally, the module has stronger overvoltage protection and is compatible with existing signal acquisition logic without requiring program modifications.
