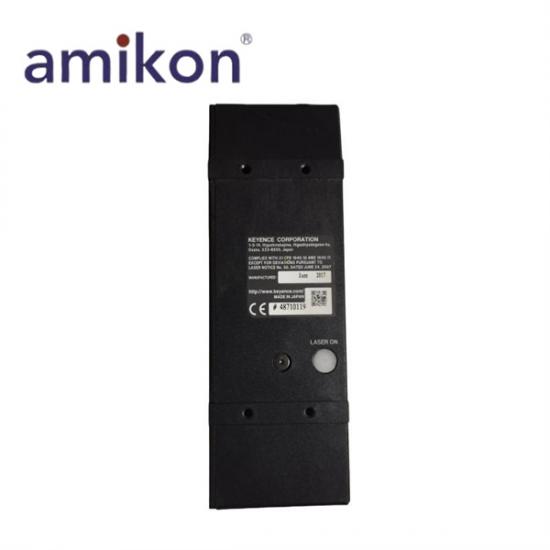

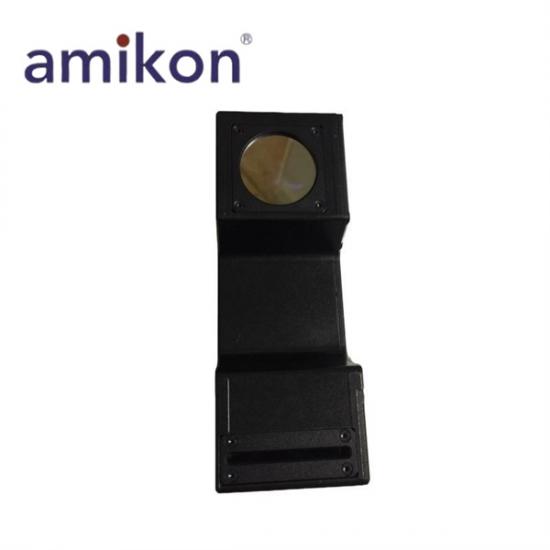

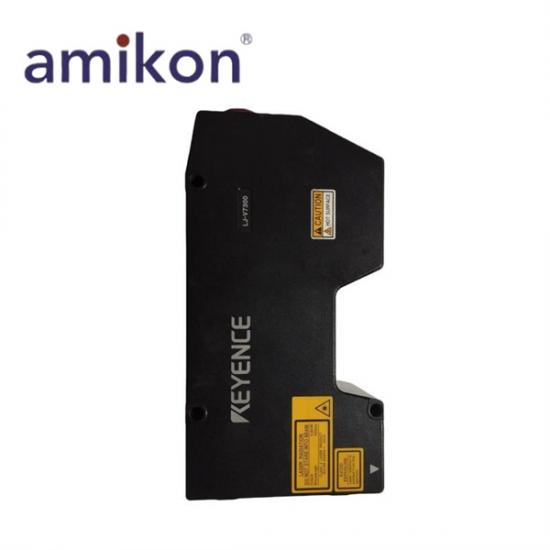

Keyence LJ-V7300 Sensor Head

—— Contact Us ——

—— Product Information ——

Keyence LJ-V7300 is a high-precision 2D laser profile sensor head designed for non-contact measurement based on diffuse reflection. It uses a 405 nm blue semiconductor laser (Class 2) with a reference distance of 300 mm, enabling stable profile acquisition even on challenging surfaces such as reflective or low-contrast materials. With a wide Z-axis measurement range of ±145 mm and X-axis coverage up to 240 mm, it is suitable for detailed height and width inspection in industrial automation and quality control applications.
The sensor delivers high measurement performance with Z-axis repeatability of 5 μm and excellent linearity up to ±0.15% of full scale, ensuring reliable dimensional inspection. It supports fast sampling cycles down to 16 μs, IP67 protection for harsh environments, and strong resistance to vibration and shock. With stable temperature characteristics and robust industrial design, the LJ-V7300 is widely used in precision profile measurement, positioning, and inline inspection tasks in manufacturing systems.

—— Technical Specifications ——

Manufacturer: Keyence
Product Numbers: LJ-V7300
Product Type: Sensor Head
Place of 0rigin: Japan
Mounting conditions: Diffuse reflection
Reference distance: 300 mm 11.81"
Measurement range Z-axis (height): ±145 mm 5.71" (F.S.=290 mm 11.42")
Measurement range X-axis (width): NEAR side: 110 mm 4.33", Reference distance: 180 mm 7.09", Far side: 240 mm 9.45"
Light source Type: Blue semiconductor laser
Wavelength: 405 nm (visible beam)
Laser class: Class 2 Laser Product (IEC60825-1, FDA(CDRH) Part 1040.10*1)
Output: 4.8 mW
Spot size (reference distance): Approx. 240 mm × 610 µm, 9.45" × 0.024016"
Repeatability: Z-axis (height): 5 µm 0.000197"*2*3, X-axis (width): 60 µm 0.002363"*2*4
Linearity: Z-axis (height): ±0.05 to ±0.15% of F.S.*5*6
Profile data interval: X-axis (width): 300 µm 0.012"
Sampling cycle (trigger interval): Top speed: 16 µs (high-speed mode), Top speed: 32 µs (advanced function mode)*7
Temperature characteristics: 0.01% of F.S./°C
Enclosure rating: IP67 (IEC60529)*8
Ambient light:Incandescent lamp: 10,000 lux max.*9
Ambient temperature: 0 to +45 °C 32 to 113 °F*10
Relative humidity: 85% RH or less (no condensation)
Vibration resistance: 10 to 57 Hz, Double amplitude 1.5 mm 0.06", 3 hours in each of the X, Y, and Z directions
Shock resistance: 15 G/6 ms
Material: Aluminum
