Molex Woodhead PCIE1500S7 APP-PS7-PCIE Applicom Pcie1500s7 Card

Manufacturer: Molex Woodhead
Product Numbers: PCIE1500S7 APP-PS7-PCIE
Product Type: Applicom Pcie1500s7 Card
Place of 0rigin: USA
Unit: PCI Express 1x, rev 1.0a
Processor: AMD SC520 - 133 MHz
Memory: 16 Mbytes SDRAM
Flash Memory: 4 Mbytes
Interruption: Hardware Plug&Play
DPRAM Address: Hardware Plug&Play (32 Kbytes)
Consumption: 5.5 W
Operating T°: 0º C (32º F) up to +65º C (149º F)
Storage T°: -40º C (-40º F) up to +85º C (185º F)
Port type: 1 Profibus port (EN 50170)
Connector: Profibus D-Sub, 9 pin, female
LED Indicator: 1 Status LED / 1 Bus Fault LED
Baud Rate: 9600 kbps ↔ 12 Mbps

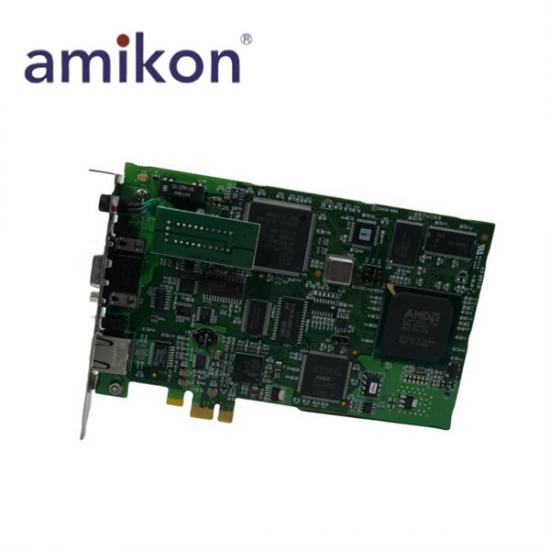

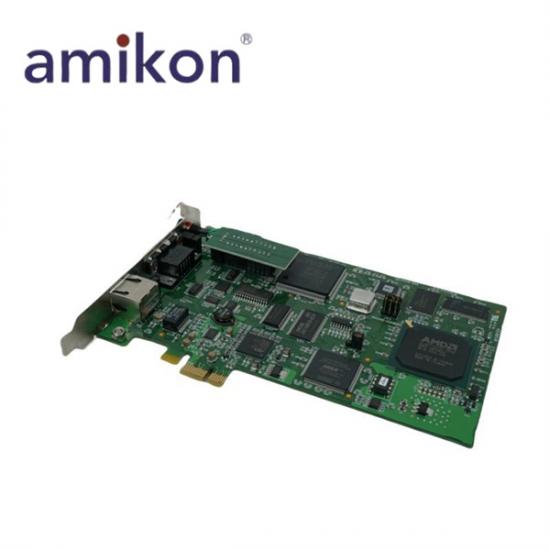

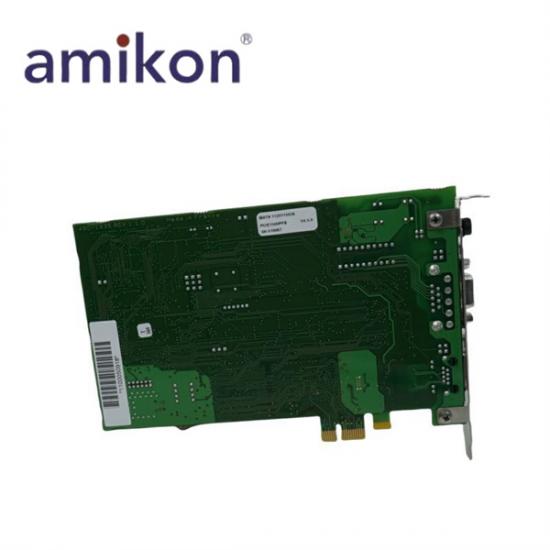

The Molex Woodhead PCIE1500S7 (APP-PS7-PCIE) is a high-performance PCI Express communication card designed for industrial automation applications. It provides a reliable Profibus interface for connecting PLCs, I/O modules, and other field devices, enabling robust data exchange in complex control systems. The card integrates an AMD SC520 processor at 133 MHz, 16 MB SDRAM, and 4 MB flash memory to ensure fast and stable processing of automation signals.
This PCI Express 1x card features a 9-pin female Profibus D-Sub connector, supporting data rates from 9600 kbps up to 12 Mbps, and includes status and bus fault LEDs for real-time diagnostics. Designed for industrial environments, it operates between 0 °C and +65 °C and can be safely stored at −40 °C to +85 °C, with a typical power consumption of 5.5 W. The card is plug-and-play compatible, with hardware-configured DPRAM addressing (32 KB), ensuring easy installation and seamless integration into existing automation systems.
