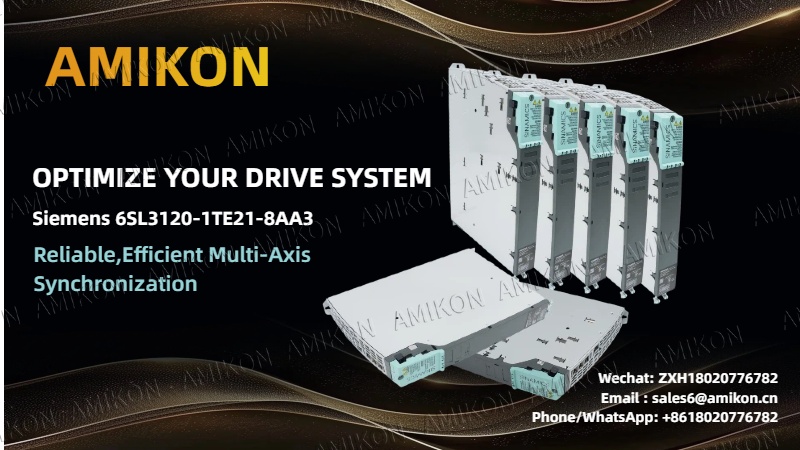

In large CNC machining centers or high-speed packaging production lines, precise synchronization between multiple servo axes directly determines the yield rate of finished products. When machine tools perform multi-axis linkage cutting or flying shear mechanisms operate under high dynamic conditions, traditional independent drive architectures often expose their limitations: excessive cabinet space occupation, inability to share energy between axes, and high failure rates due to complex electrical wiring. The Siemens SINAMICS S120 series is designed to address these pain points. Among them, the Booksize single-axis motor module 6SL3120-1TE21-8AA3 provides a highly reliable underlying execution solution for multi-axis coordinated control through a common DC bus topology and high-speed digital communication.

In-depth breakdown of core technical specifications

From an electrical engineering perspective, the parameter configuration of the 6SL3120-1TE21-8AA3 precisely targets the key points of high-dynamic, medium-load applications.

DC 600V Bus Input: This module is not directly connected to three-phase AC power, but is instead connected to the DC 600V common DC bus constructed by the main power supply module (Line Module). This design means it can directly utilize the electrical energy fed back from other reduction shafts on the same bus, significantly reducing external heat generation from the braking resistor and improving the energy efficiency of the entire drive system.

18A Continuous Output Current and 9.7 kW Rated Power: Under rated operating conditions, the module continuously provides 18A of current output, supporting a 9.7 kW servo motor shaft. Its internal inverter circuit (IGBT) is optimized, possessing strong overload capacity, capable of handling the high dynamic current surges during mechanical start-up and shutdown, ensuring that the speed loop and position loop do not lose synchronization under sudden loads.

DRIVE-CLiQ High-Speed Digital Interface: Traditional analog or ordinary fieldbus control suffers from signal delay and poor anti-interference issues. This module integrates Siemens' proprietary DRIVE-CLiQ communication interface. Controllers (such as SINUMERIK or SIMOTION) can directly read data from the motor's embedded Electronic Rating Plate via this digital network, enabling automatic parameter identification and configuration, while providing microsecond-level closed-loop control response.

Hardware-level Safety Integration (STO): Safety is not just software logic, but also hardware-level protection. The module incorporates a Safe Torque Off (STO) function. When an emergency stop signal is triggered, the module directly cuts off the motor's power output via a hardware pulse blockade path, ensuring the motor does not malfunction and preventing mechanical damage or personal injury.

Typical Application Scenarios in Discrete Manufacturing

The 6SL3120-1TE21-8AA3 is primarily used in high-precision, multi-axis linkage discrete manufacturing applications.

In CNC machine tools, it is often used in conjunction with SINUMERIK 840D SL or ONE systems as the drive actuator for the spindle or high-load feed axes. In five-axis machining, where uneven material properties can lead to sudden changes in cutting force, this module, paired with a high-resolution encoder and relying on a stable 18A output, can maintain micron-level contour accuracy under medium to heavy-duty cutting.

In automotive body assembly and automated production lines, hundreds or even thousands of servo axes require close coordination. The S120's book-style design allows for close side-by-side module installation, with direct connection to the DC bus and communication bus via slide bars, greatly simplifying the wiring logic of control cabinets for long-distance conveyor lines or gantry gripper systems.

For high-speed packaging and printing machinery, the SIMOTION motion controller sends synchronous cam algorithms to the 6SL3120-1TE21-8AA3 via the DRIVE-CLiQ link. Whether it's high-speed alignment in a label printer or dynamic compensation in a reciprocating cutter, the module's high-bandwidth current loop ensures the motor responds to minute speed correction commands in an extremely short time.

Why Choose SINAMICS S120? Competitive Advantages Compared to Traditional Drives

Replacing traditional standalone distributed drives with a book-style modular system based on the 6SL3120-1TE21-8AA3 brings more than just performance changes to the factory.

Shop Application: Installation, Commissioning, and Optimization Guide

To ensure the long-term stable performance of this 9.7 kW module, field engineers need to pay attention to the following points during installation and initialization:

Heat Dissipation and Clearance Management: This module uses internal air cooling. Although the book-style design supports close side-by-side installation, at least 80mm of ventilation clearance must be maintained at the top and bottom of the module. The airflow design within the control cabinet must be reasonable to prevent hot air exhaust from creating dead zones at the top of the cabinet, leading to overheating inside the module.

EMI (Electromagnetic Interference) Protection and Grounding: The high-frequency switching operation of the servo inverter will inevitably generate common-mode current. Motor cables must use dedicated servo cables with a shield coverage of at least 85%. On the cabinet side, the shield must be directly fixed to the mounting backplate using a large-area metal grounding clamp, rather than being twisted into a "pigtail" shape and connected to the grounding terminal.

Configuration Software (STARTER/Startdrive) Optimization: When configuring using Siemens software, do not blindly increase the speed loop gain. It is recommended to first capture the resonant frequency of the mechanical system using the Auto-Tuning function, and then configure the built-in Current Loop Notch Filter to eliminate howling caused by insufficient mechanical rigidity, thereby maximizing the dynamic potential of this 18A module.

Business Returns and Supply Chain Value (TCO Optimization)

For purchasing managers and spare parts managers, choosing the Siemens S120 flagship series is a long-term investment that reduces total cost of ownership (TCO). A unified modular architecture means you can reduce the number of spare parts (SKUs) in your warehouse. Thanks to DRIVE-CLiQ technology, frontline maintenance personnel don't need extensive programming backgrounds. When a module suffers physical damage, simply disconnect the power, loosen the busbar screws, unplug the cable, and replace the module. The controller will automatically reconfigure after power is restored. This "plug-and-play" field maintenance minimizes unplanned downtime.

Frequently Asked Questions (FAQ)

Q1: A module triggers an overheating fault during operation (fault code such as F07404 or similar). How do I troubleshoot this systematically?

A: First, check if the fan on top of the control cabinet is working properly and if the air inlet filter is clogged with oil or dust. Second, use the STARTER software to monitor the current actual output current to confirm if there is any mechanical jamming causing the motor to operate at the overload edge for an extended period. If the ambient temperature exceeds 40°C, consider derating proportionally or increasing the cooling inside the cabinet.

Q2: When configuring in Startdrive, the system reports a DRIVE-CLiQ topology error. How should I handle this?

A: Siemens S120 systems have strict topology definitions for DRIVE-CLiQ wiring ports. For example, the controller output must be connected to the X200 interface of the single-axis module. Please compare the actual wiring diagram with the preset topology in the software to ensure that the network cable is not plugged into the wrong port. Also, check if the DRIVE-CLiQ cable is subject to strong electrical interference; if necessary, isolate it from the power cable.

Q3: If there is a shortage of 6SL3120-1TE21-8AA3, are there any direct replacement models? How compatible are they?

A: 6SL3120-1TE21-8AA3 belongs to the S120 book series. During the Siemens product lifecycle, some older models are replaced by subsequent versions with upgraded technology (e.g., versions with updated firmware or improved hardware design). In emergency situations, book-type modules with the same voltage rating (DC 600V) and current rating (18A) typically offer high compatibility. Before replacement, simply update the hardware configuration in Siemens TIA Portal or STARTER. For the latest inventory and definitive alternatives, please contact our sales team directly.
