I. Introduction / Background – The Urgent Need for Online Monitoring of Rotating Equipment in Industrial Automation

In modern process industries and general machinery manufacturing supply chains, centrifugal air compressors, small and medium-sized pump sets, motors, and fans, as core power equipment, are prone to downtime, equipment damage, and other failures due to shaft wear, rotor imbalance, and bearing failure under long-term continuous operation, resulting in significant losses and safety hazards for enterprises. With the popularization of intelligent manufacturing and equipment lifecycle management concepts, the demand for online equipment status monitoring has shifted from large units to small and medium-sized OEM supporting equipment. Traditional simple vibration sensors can only achieve single-point alarms and lack standardized 4-20mA standard analog outputs that can be connected to PLC control systems, becoming a pain point in the digital upgrade of equipment operation and maintenance.

In industrial automation systems, reliable vibration transmitter acquisition units are the underlying hardware support for predictive maintenance of equipment. Most original equipment manufacturer (OEM) monitoring solutions for air compressors and small power equipment suffer from poor compatibility, complex debugging, insufficient environmental tolerance, and frequent false alarms. The industry urgently needs an integrated vibration transmitter that is compatible with mainstream eddy current probes, features a two-wire circuit power supply, and integrates a preamplifier function. Bently Nevada, a global benchmark brand in equipment condition monitoring, has launched the 990 series vibration transmitter, model 990-08-50-01-05, custom-developed for OEMs. It perfectly adapts to the needs of small and medium-sized rotating machinery, addressing the shortcomings of standardized vibration monitoring for general power equipment, and providing equipment manufacturers and end-user factories with a lightweight, highly stable, and easily integrated online vibration monitoring solution.

II. Core Positioning and Suitable Scenarios of Product 990-08-50-01-05

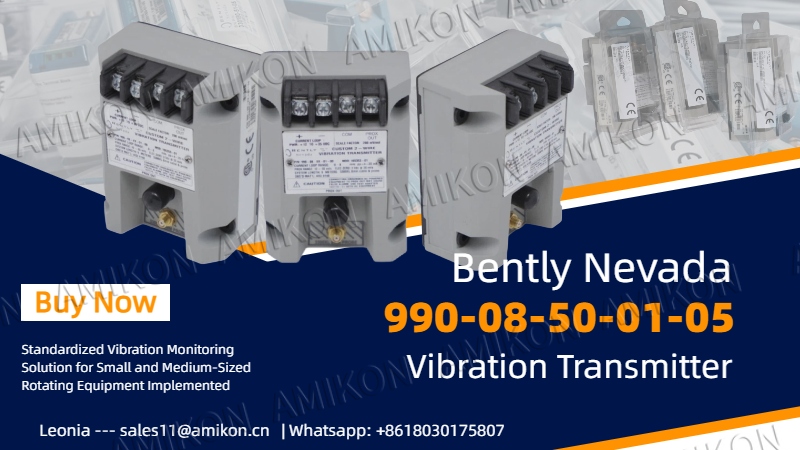

The 990-08-50-01-05 vibration transmitter is designed specifically for OEM use in centrifugal air compressors, small pumps, motors, and fans. It is a two-wire, loop-powered, integrated transmitter that can connect to Bentley's 3300 NSv series non-contact eddy current displacement probe and its extension cable. It converts shaft vibration peak-to-peak signals into industry-standard 4-20mA analog signals, directly connecting to the unit's PLC control system to achieve vibration trend acquisition and over-limit alarm linkage.

Each segment code of this model corresponds to a specific configuration: 08 represents a full-scale range of 0~8 mil peak-to-peak value (0~200μm peak-to-peak), suitable for vibration monitoring ranges of small and medium-sized shaft systems; 50 indicates a 5-meter total length probe cable system, meeting the wiring needs of compact installation spaces for small and medium-sized equipment; 01 comes standard with 35mm standard DIN rail clips and also supports partition mounting screws, flexibly adapting to control cabinet installation; 05 certifications integrate CSA Division 2 and ATEX Zone 0/Zone 2 explosion-proof certifications, and include ABS marine certification, covering various hazardous working conditions in chemical, oil and gas, shipbuilding, and general manufacturing industries.

Unlike separate preamplifier + transmitter module combinations, the 990 series integrates the Proximitor preamplifier sensor into a single unit. The entire unit is potted to withstand 100% condensation and high humidity environments, and the probe can withstand temperatures up to 177℃. It is perfectly suited for the harsh operating conditions of high-temperature air compressor chambers, outdoor fans, and marine power equipment, making it the preferred product for OEM equipment manufacturers seeking lightweight solutions and for upgrading aging monitoring systems in end-user factories.

III. Integrated Hardware Architecture: Simplified Wiring, Lowered On-Site Commissioning Threshold

Traditional vibration monitoring systems require separate preamplifiers and transmitter conversion modules. This multi-component combination leads to complex wiring, multiple signal interference points, and cumbersome on-site commissioning procedures, demanding a high level of expertise from on-site maintenance personnel. The 990-08-50-01-05 adopts an integrated hardware architecture with a built-in complete preamplifier sensor unit, eliminating the need for additional external signal conversion units and significantly simplifying on-site wiring and cabinet layout.

The equipment features a non-interactive zero-point and range adjustment potentiometer, allowing for loop calibration directly below the transmitter housing markings, eliminating the need for a professional calibration bench. An independent TEST input pin can be used with a signal generator for rapid calibration of the 4-20mA output signal, facilitating quick factory testing and on-site commissioning. The equipment includes a reserved PROX OUT coaxial interface for outputting isolated diagnostic dynamic vibration signals. With the included 990/991 test adapter, it can be connected to oscilloscopes and analyzers for unit fault diagnosis. A built-in Not OK signal failure protection circuit automatically locks the output below 3.6mA in case of probe disconnection, loose connection, or abnormal probe gap, preventing false vibration alarms caused by faults and significantly reducing the probability of erroneous unit shutdowns.

The power supply adopts a two-wire circuit design, supporting 12~35V DC input, with a standard power supply of 28V in hazardous areas. The maximum circuit resistance is 1000Ω, suitable for long-distance cabinet wiring. A typical 23mA current-limiting design stabilizes the circuit current output, and the 4-20mA signal full-range accuracy is ±1.5%, meeting the high-precision data acquisition standards for industrial control. The entire unit weighs only 0.43kg, and the typical total system weight is 0.82kg, making it compact and suitable for installation in confined spaces within compact air compressor control cabinets.

IV. Harsh Environmental Tolerance, Covering Complex Working Conditions in Multiple Industries

Fluctuations in temperature and humidity, dust condensation, explosion-proof area restrictions, and high-temperature probe installation environments in industrial settings are major causes of vibration monitoring equipment failure. The 990-08-50-01-05 series optimizes both the transmitter body and probe hardware for extreme environments, adapting to complex working conditions in multiple industries.

The transmitter body operates in a temperature range of -35℃ to +85℃, with a storage temperature range of -52℃ to +100℃. The matching 3300 NSv probe withstands extreme high temperatures, operating in temperatures from -52℃ to +177℃, and can be directly installed in high-temperature bearing housings of air compressors and high-temperature pump bodies. The entire unit's potting structure supports 100% condensation relative humidity, and the coaxial connectors are well-protected against water and moisture, ensuring stable operation outdoors, in high-humidity chemical workshops, and in marine engine rooms.

Mechanically, the transmitter housing is made of AISI 303/304 stainless steel, and the probe cable is a 75Ω coaxial FEP fluoroplastic insulated cable with an optional stainless steel armor sheath to resist mechanical abrasion in the field. The maximum cable distance for the probe leads is 3 meters, compatible with various thread installation specifications (1/4-28, 3/8-24, M8×1, M10×1), with clearly defined thread insertion depth standards to avoid overtightening and probe damage. With complete explosion-proof certifications, the 05 configuration version can be directly used in Zone 0 and Zone 2 hazardous areas. For oil and gas, fine chemical, and explosion-proof air compressor applications, no additional explosion-proof conversion components are required, reducing project procurement and construction costs.

V. Product Differentiation Advantages Compared to Traditional Split Monitoring Solutions

• Integrated Design: Eliminates the need for a separate preamplifier, reducing the hardware procurement list. OEM equipment shipped with the device can streamline the bill of materials and reduce cabinet installation space.
• Standardized 4-20mA Output: Directly interfaces with mainstream PLC and DCS control systems, eliminating the need for customized signal conversion modules and ensuring seamless compatibility with general industrial systems.
• Comprehensive Fault Self-Diagnosis Mechanism: Not OK disconnection protection automatically identifies probe faults, preventing false vibration alarms from causing unit trips and ensuring continuous production.
• Multi-Scenario Installation: Dual installation options of DIN rail clips and partition screws, adaptable to both control cabinets and equipment body partitions.
• Full-Environment Adaptability: Wide temperature and high humidity tolerance + multiple explosion-proof marine certifications; one device covers multiple industries including general manufacturing, chemical, oil and gas, and shipbuilding.
• Lightweight Diagnostic Expansion: Coaxial Prox OUT The diagnostic interface, paired with a dedicated test adapter, enables rotor fault spectrum analysis, catering to both online monitoring and offline equipment diagnostic needs. It also boasts a low setup threshold: a built-in independent zero-range adjustment potentiometer and dedicated test pins eliminate the need for specialized vibration calibration personnel during factory quality inspection and on-site maintenance.

VI. Technical Specifications (990-08-50-01-05 Core Parameters)

Electrical Parameters

Input: Compatible with 3300 NSv non-contact eddy current probe and matching extension cable; total system length 5 meters;

Power Supply: 12~35V DC two-wire circuit power supply; standard power supply 28V for hazardous areas;

Analog Output: 4~20mA standard current signal; full-range accuracy ±1.5%; maximum loop resistance 1000Ω; typical current limit 23mA;

Probe Gap: 0.5~1.75mm, ensuring full-range signal output;

Measuring Range Specifications: 08 configuration, 0~200μm (0~8 mil) peak-to-peak value; incremental ratio factor 7.87mV/μm; temperature drift ±10% (0℃~70℃);

Frequency Response: 5Hz~6000Hz, suitable for the vibration frequency range of small and medium-sized rotating machinery;

Fault Protection: If the output drops below a certain value within 100μs when the probe malfunctions. 3.6mA, automatic signal recovery after 2-3 seconds of fault clearance; power-on suppression for 2-3 seconds to avoid false alarms during startup; Diagnostic output: Prox OUT output impedance 10kΩ, linear range 1.4mm, minimum monitored target diameter 9.5mm, BNC interface lead length up to 3 meters.

Environmental and Mechanical Parameters

Transmitter operating temperature: -35℃ to +85℃; Probe operating temperature: -52℃ to +177℃;

Humidity: 100% condensation, coaxial connector moisture-proof protection;

Material: Transmitter housing 304 stainless steel, probe cable FEP insulated coaxial cable, stainless steel armor optional;

Installation: Standard 35mm DIN rail clip, supports partition screw fixing;

Certifications: CSA Division 2, ATEX Zone 0/Zone 2 explosion-proof, ABS marine certification;

Weight: Transmitter 0.43kg, typical total system weight 0.82kg.

Conclusion – 990-08-50-01-05 Empowers Digital Operation and Maintenance of Small and Medium-Sized Equipment

Bentley's 990-08-50-01-05 integrated vibration transmitter fills the gap in lightweight vibration monitoring products for OEMs of small and medium-sized air compressors, pumps, and fans. With integrated hardware, standardized 4-20mA signal output, strong environmental tolerance, and comprehensive fault diagnosis and protection capabilities, it solves industry pain points such as complex wiring, high debugging difficulty, poor operating condition adaptability, and frequent false alarms in traditional split monitoring solutions.

For equipment OEMs, this model simplifies supporting materials, reduces control cabinet space, and lowers factory quality inspection and debugging costs. It also offers comprehensive explosion-proof marine certifications, broadening the downstream application market. For end-user manufacturing, chemical, and shipbuilding companies, it can be used for the retrofitting of monitoring systems for aging units. By connecting to existing PLC systems using standard analog signals, it can quickly build a vibration trend prediction and maintenance system, providing early warnings of bearing and rotor failures, reducing unplanned downtime, and minimizing equipment maintenance and production losses.

As Bentley's benchmark product for lightweight vibration monitoring, the 990 series addresses both basic online monitoring and offline fault diagnosis needs. It's a cost-effective hardware solution for the digital transformation of general rotating machinery. Currently, we have the entire 990 series in stock, providing original technical data, selection guidance, and installation and commissioning technical support.

Contact Information:

Manager: Leonia

Email: sales11@amikon.cn

Whatsapp: +8618030175807

FAQ (Frequently Asked Questions)

Q1: Which probes is compatible with the 990-08-50-01-05? Can the cable length be changed?

A: It is only compatible with Bentley 3300 NSv series eddy current probes. The 50 code in this model represents a 5-meter cable system. For 8-meter or 9-meter cables, please select the corresponding suffix model. Do not cut or extend the cable yourself, as this will cause signal accuracy deviation.

Q2: What are the precautions for installation in explosion-proof areas?

A: This model 05 is equipped with ATEX Zone 0/2 and CSA Division 2 explosion-proof certification. In hazardous areas, a strictly 28V DC circuit power supply must be used. The probe thread insertion depth must conform to the specification table standard; exceeding the depth will damage the probe and cause it to malfunction.

Q3: What are the troubleshooting steps for a "Not OK" fault alarm in the field?

A:1. Check if the probe cable connector is loose or has water ingress;

2. Measure if the probe installation gap exceeds the 0.5~1.75mm range;

3. Check the cable for compression damage or open circuits;

4. Power off and restart the transmitter to confirm the circuit power supply voltage is within the 12~35V range.

Q4: Can the Prox OUT diagnostic interface be directly connected to an AC-powered oscilloscope?

A: Direct connection is not recommended. This signal has no electrical isolation and requires the use of a 122115-01 test adapter for isolation conversion to avoid signal interference between the 4-20mA circuit and the test equipment, while ensuring the integrity of the unit's protection system.

Q5: What is the product warranty period, and is technical debugging guidance provided?

A: Brand new, original Bentley products come with the original factory standard warranty. Our company provides a complete installation manual and wiring diagrams. Our technicians can provide remote guidance for the entire process of DIN rail installation, zero-point and range calibration, and signal verification.

Q6: How to calibrate the transmitter with a 4-20mA signal?

The device housing has independent zero-point and range adjustment potentiometers. Connect the potentiometer to the signal generator via the TEST input pin, input a standard gap analog signal, and adjust the potentiometer to match the loop current to the corresponding range value to complete the calibration.
