QUINT4-PS/1AC/12DC/15 - Phoenix Contact Power Supply Module

/ Get a Quote in Minutes /

Need fast pricing for your automation part? Our team responds quickly with accurate quotes, even for hard-to-find or obsolete modules. Let us help you reduce downtime and secure the right solution—fast.

Contact

Manager: Leonia

Email: sales11@amikon.cn

Whatsapp: +8618030175807

/ Technical Information /

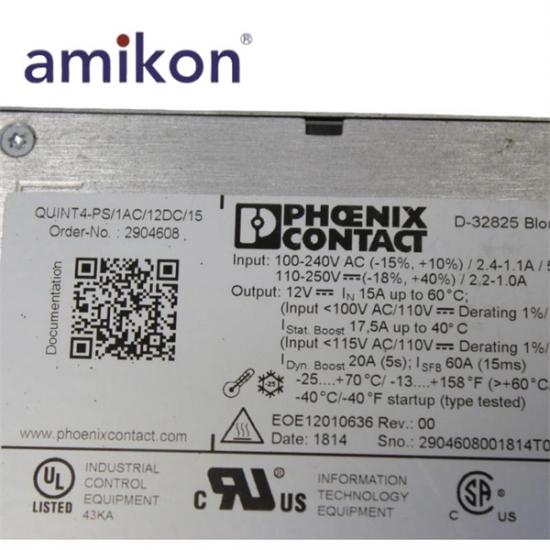

Product Numbers: QUINT4-PS/1AC/12DC/15
Manufacturer: Phoenix Contact
Product Type: Power supply Module
Place of 0rigin: Germany
Nominal input voltage range: 100 V AC ... 240 V AC
Input voltage range: 100 V AC ... 240 V AC -15 % ... +10 %
Electric strength, max.: 300 V AC 60 s
Typical national grid voltage: 120 V AC, 230 V AC
Voltage type of supply voltage: AC
Inrush current: typ. 15 A (at 25 °C)
Inrush current integral (I2t): < 0.6 A2s
Inrush current limitation: 15 A (after 1 ms)
AC frequency range: 50 Hz ... 60 Hz -10 % ... +10 %
Nominal power consumption: 221 VA
Protective circuit: Transient surge protection; Varistor, gas-filled surge arrester
Switch-on time: < 1 s
Typical response time: 300 ms (from SLEEP MODE)
Input fuse: 8 A (slow-blow, internal)
Recommended breaker for input protection: 10 A ... 16 A (Characteristic B, C, D, K or comparable)
Nominal input voltage range: 110 V DC ... 250 V DC
Input voltage range: 110 V DC ... 250 V DC -18 % ... +40 %
Voltage type of supply voltage: DC
Signal ground SGnd: Reference potential for Out1, Out2, and Rem
Degree of protection: IP20
Ambient temperature (operation): -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K)
Ambient temperature (storage/transport): -40 °C ... 85 °C
Maximum altitude: ≤ 5000 m (> 2000 m, observe derating)
Housing material: Metal
Hood version: Stainless steel X6Cr17
Side element version: Aluminum
Mounting type: DIN rail: 35 mm

/ Product Overview /

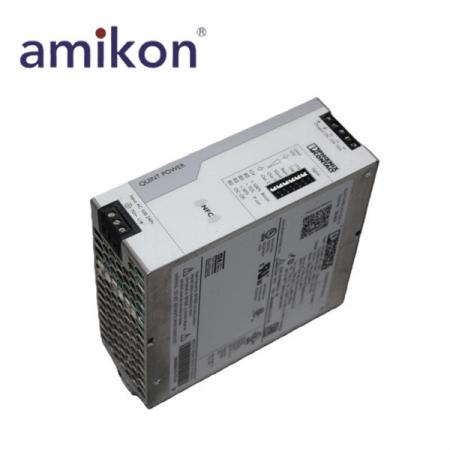

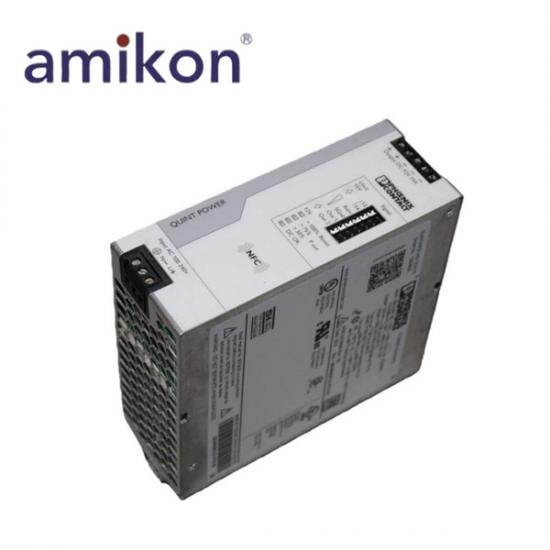

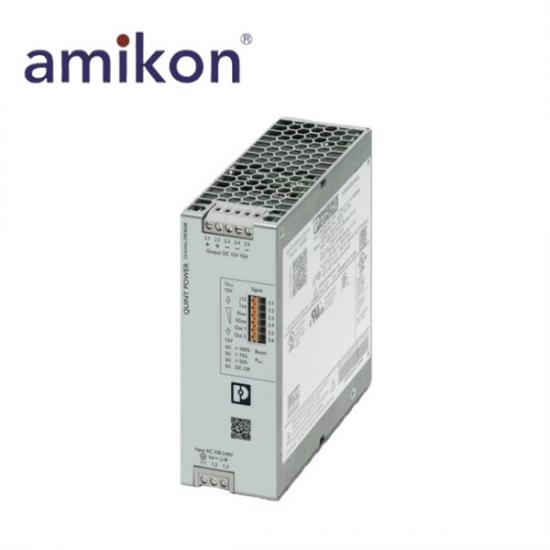

The Phoenix Contact QUINT4-PS/1AC/12DC/15 is a fourth-generation high-performance DIN-rail power supply designed for reliable 12 V DC power delivery in industrial automation systems. It operates with a wide AC input range of 100–240 V AC and a DC input range of 110–250 V DC, supporting global power grid compatibility. The unit provides a nominal output of 12 V DC / 15 A, with integrated protections such as transient surge protection, varistor, and gas-filled surge arrester to ensure stable and safe operation.
This power supply features advanced functions including SFB (Selective Fuse Breaking) technology for fast fault isolation and NFC interface for flexible configuration of signaling thresholds and output characteristics. It is built with a rugged metal housing (stainless steel and aluminum components), supports DIN rail mounting, and operates in temperatures from -25°C to +70°C. With IP20 protection and operation capability up to 5000 m altitude (with derating), it is optimized for high system availability and demanding industrial environments.

/ Amikon Inquiry & Quotation Process /

Step 1: Submit Your Inquiry
Send us your required part number, quantity, and any specifications via email or WhatsApp. We also support obsolete and hard-to-find automation components.

Step 2: Requirement Review
Our experienced sales team verifies product details, compatibility, and availability to ensure accuracy.

Step 3: Fast Quotation
You will receive a detailed quotation including price, lead time, and shipping options—typically within a few hours.

Step 4: Order Confirmation
Once approved, confirm your order. We will issue a proforma invoice and begin processing immediately.

Step 5: Quality Check & Packaging
All items undergo strict inspection and are carefully packaged to ensure safe and secure delivery.

Step 6: Fast Delivery
Orders are shipped within 1–3 business days via reliable global logistics partners with full tracking provided.

/ Know More About Us /

Amikon Limited is a trusted global supplier specializing in PLC, DCS, and TSI automation products. We are committed to delivering efficient, reliable, and cost-effective solutions for industrial control systems across a wide range of applications.

With a strong focus on customer needs, we provide professional support to help clients optimize their automation systems and expand their market presence. Our experienced team ensures fast response, accurate sourcing, and stable supply for both new and legacy equipment.

We maintain a large and well-organized inventory covering leading global brands such as ABB, Honeywell, Bently Nevada, GE Fanuc, Siemens, Schneider Electric, and more. Whether you require current models or obsolete spare parts, we are able to deliver flexible solutions to minimize downtime and ensure operational continuity.

At Amikon Limited, we combine competitive pricing, fast delivery, and quality assurance to provide a dependable alternative in the industrial automation supply chain. Partnering with us means choosing stability, efficiency, and long-term support for your business.
