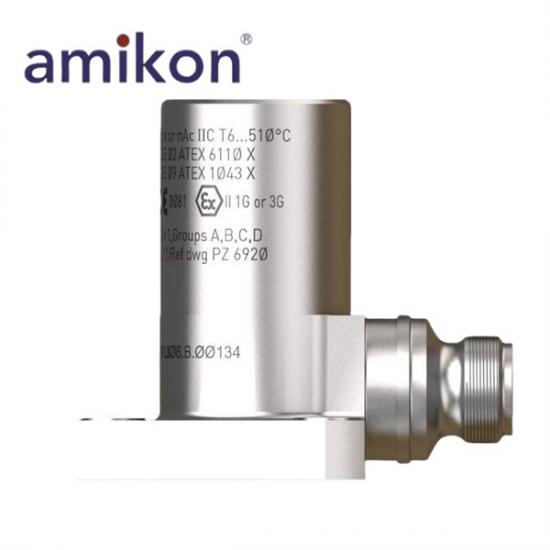

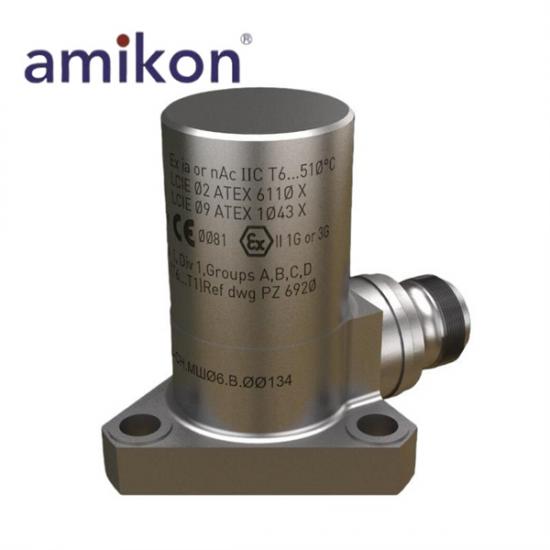

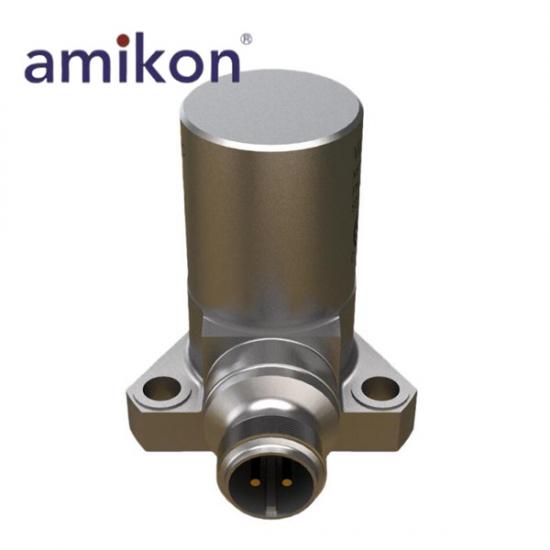

Vibro-Meter CA134 144-134-000-612 Piezoelectric Accelerometer

Manufacturer: Vibro-Meter
Product Numbers: CA134 144-134-000-612
Product Type: Piezoelectric Accelerometer
Place of 0rigin: Switzerland
General
Input power requirements: None
Signal transmission: 2-pin system, insulated from case, charge output
Signal processing: Charge converter (IPC70x signal conditioner)
Operating
(At 23°C ±5°C, 73°F ±9°F) Sensitivity (at 120 Hz with 5 g, see Calibration on page 4): 10 pC/g ±5%
Dynamic measurement range: 0.001 to 500 g peak
Overload capacity (spikes): Up to 1000 g peak
Linearity: ±1% over dynamic measurement range
Transverse sensitivity: <5%
Resonant frequency: >14 kHz nominal
Frequency response
0.5 to 3500 Hz: ±5% (lower cutoff frequency is determined by the signal conditioner)
3500 to 6000 Hz: <10%
Internal insulation resistance: 10⁸ Ω minimum at 23°C (73°F). 10⁵ Ω minimum at 500°C (932°F).
Capacitance
Sensor head: 20 pF nominal between pin (+ or −) and case (ground). 450 pF nominal between pins (+ and −).
MI cable (integral cable version only): 350 pF/m nominal between pin (+ or −) and case (ground). 220 pF/m nominal between pins (+ and −).
Environmental
Temperature range: −54 to 500 °C (−65 to 932 °F).
Shock acceleration: < 2 000 g peak (half sine, 1 ms duration) along sensitive axis
Base strain sensitivity: ≤ 5 × 10−3 g/με



The CA134 144-134-000-612 is a high-temperature piezoelectric accelerometer from Parker Meggitt’s vibro-meter® product line.
The CA134 144-134-000-612 sensor features a compression-mode measuring element with internal case insulation in a high-temperature nickel alloy case (housing).
The CA134 144-134-000-612 is available as a sensor only or fitted with an integral mineral-insulated (MI) cable that is protected by a double braid and terminated with a vibro-meter® high-temperature connector. The sensor and cable are hermetically welded to produce a sealed leaktight assembly. The sensor only version allows different cable assemblies to be used depending on the environmental/temperature requirements of the application.
All versions of the CA134 144-134-000-612 are Ex certified for installation in potentially explosive atmospheres (hazardous areas).
The piezoelectric material used and the design of the CA134 144-134-000-612 ensures an extremely stable and reliable device that is suitable for the long-term monitoring and measurement of vibration over wide temperature ranges in severe environments, such as gas turbines or cryogenic applications.

KEY FEATURES AND BENEFITS
• From the vibro-meter ® product line
• Sensitivity: 10 pC/g
• Frequency response: 0.5 to 6 000 Hz
• Temperature range: −54 to 500 °C , −253 °C (20 K) to 500 °C for cryogenic version
• Ex certified for use in hazardous areas (potentially explosive atmospheres)
• Symmetrical sensor with internal case insulation and differential output
• Hermetically welded high-temperature nickel alloy case
• Available as a sensor only or with an integral cable
