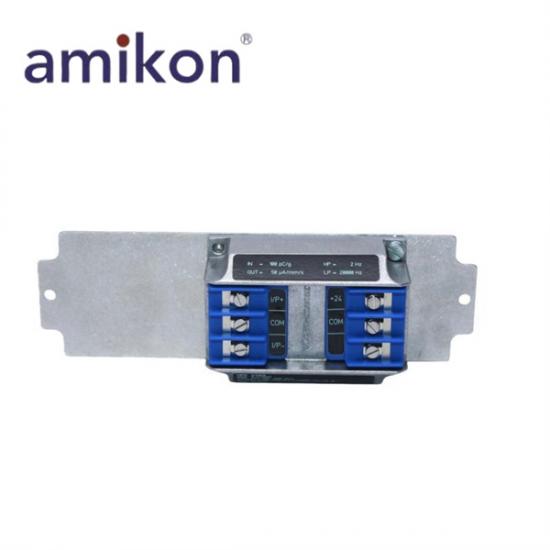

Vibro-Meter IPC707 244-707-000-012 A1-B1-C9810-D3-E5-F2000-G2 Signal Conditioner

Manufacturer: Vibro-Meter
Product Numbers: IPC707 244-707-000-012 A1-B1-C9810-D3-E5-F2000-G2
Product Type: Signal Conditioner
Place of 0rigin: Switzerland
Input voltage range: 24 VDC ± 25 % (18 to 30 VDC )
Current consumption: 20 mA max.
Accuracy (at ambient temperature)
• Without integrator: ± 2 %
• With integrator: ± 3 %
Linearity error (INL): < 0.2 %
Temperature stability (over whole temperature range)
• Without integrator: < 100 ppm / °C typical
• With integrator: < 150 ppm / °C typical
Temperature
• Operating and storage: −40 to 85 °C (−40 to 185 °F)
Humidity: 95 % max. non-condensing
Protection rating: IP40.
Vibration: 5 g peak above resonant frequency and 0.35 mm peak below
Shock acceleration: 15 g peak
Altitude: 4 000 m (13 100 ft) max.



The IPC707 is a signal conditioner from Parker Meggitt’s Vibro-Meter® product line. It is designed for operation with sensors containing a piezoelectric sensing element that provide a charge output and require an external signal conditioner (charge amplifier).
The IPC707 signal conditioner is a versatile and highly configurable device that converts and processes the charge-based signal from a piezoelectric-based sensor into a current output or a voltage output signal, suitable for transmission to a monitoring system via a standard current (2-wire) or voltage (3-wire) transmission cable.
The IPC707 is designed for operation with vibration measurement chains using CAxxx piezoelectric accelerometers and pressure measurement chains using CPxxx dynamic pressure sensors. It can also be used with other piezoelectric-based sensors and cabling assemblies that meet the required input characteristics.

Key Features and Benefits
• From the Vibro-Meter® product line
• For CAxxx piezoelectric accelerometers and CPxxx dynamic pressure sensors
• Configurable high-pass and low-pass filters (independent of transfer function)
• Frequency range: 0.5 Hz to 20 kHz
• Optional integrator to produce a velocity output
• pC to μA transfer function for current-signal transmission over longer distances
• pC to mV transfer function for voltage-signal transmission over shorter distances
• Certified for use in potentially explosive atmospheres
• Optional diagnostic circuitry to detect sensor, cabling and/or signal conditioner problems
• Suitable for use in functional safety contexts: SIL 2 in accordance with IEC 61508 and PL c Cat 1 in accordance with ISO 13849
• Removable screw-terminal connectors
• DIN-rail mounting
