>Yokogawa ADV161-P50 S2 64-Channel Digital Input Module

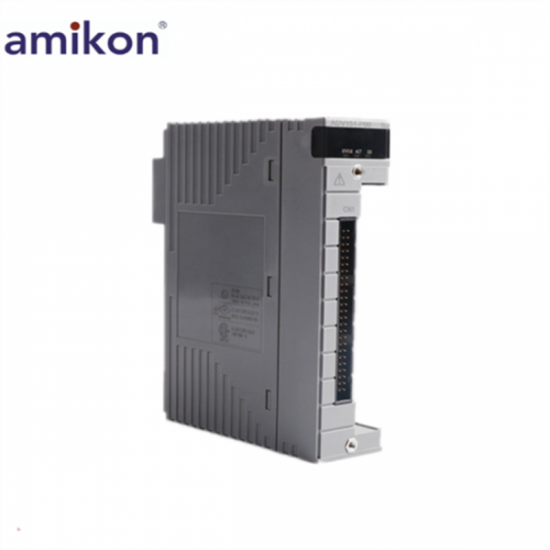

Yokogawa ADV161-P50 S2 Digital Input Module
Yokogawa ADV161-P50 S2 Digital Input Module

Yokogawa ADV161-P50 S2 64-Channel Digital Input Module

sales6@amikon.cn

ADV161-P50 S2

ADV161-P50 S2

  • Brand:

    Yokogawa

  • Item NO.:

    ADV161-P50 S2

  • Payment:

    T/T

  • Product Origin:

    Japan

  • Color:

    Gray

  • Shipping Port:

    Xiamen, China

  • Lead Time:

    In stock

  • Manufacturer:

    Yokogawa Electric Corporation

  • Part number:

    ADV161-P50 S2

  • Dimension:

  • Weight:

    0.3 kg

  • HS CODE:

    Please confirm the destination before shipping

  • Warranty:

    12 months
Inquiry now
Product Detail

Contact Information

Sales manager: Jim Pei

Wechat: ZXH18020776782

Email: sales6@amikon.cn

Phone/WhatsApp: +8618020776782

Product Description

The Yokogawa ADV161-P50 S2 is a high-density digital input module for the CENTUM VP field I/O architecture. It receives 64 channels of 24 VDC ON/OFF signals and transfers their states to the field control system for sequence control, interlocking, alarm handling and equipment-status monitoring.

Each 16-channel group shares a common, while the input circuitry remains isolated from the system. In addition to status detection, the module supports pushbutton edge counting. Its documented response and detection characteristics make it suitable for dense discrete-signal acquisition where channel count, deterministic update behavior and cabinet space are important.

The module can be installed in supported CENTUM VP FIO node units and field control units and can be configured redundantly. Selection must include the complete suffix, style marking, node compatibility, cable and terminal-board arrangement; an ADV161 module should not be replaced solely by matching the family number.

Original new industrial automation products, quality assurance and responsive service

Product Features & Functions

High-density discrete inputAcquires 64 isolated 24 VDC digital signals in one FIO module, reducing slot usage in large CENTUM VP cabinets.
Status and pushbutton functionsSupports normal ON/OFF status detection plus pushbutton edge counting with documented response and minimum detection times.
Redundant system supportADV161 can be used in dual-redundant arrangements when installed and configured in compatible Yokogawa FIO hardware.

Product Applications

  • Supported CENTUM VP FIO node units and field control units using ESB, optical ESB or ER-bus architectures within the documented Yokogawa hardware scope.
  • High-density acquisition of 24 VDC ON/OFF field signals for sequence control, interlocking, alarm handling and equipment-status monitoring.
  • Dual-redundant digital-input arrangements where the approved node hardware, slot allocation and engineering configuration support redundancy.

Technical Specifications

Manufacturer Yokogawa Electric Corporation
Model ADV161-P50 S2
Product Family CENTUM VP FIO
Product Type Digital input module, isolated
Number of Input Channels 64
Rated Input Voltage 24 VDC, sink/source
Input ON Voltage 20 to 26.4 VDC
Input OFF Voltage 5.0 VDC or less
Input Current 2.5 mA ±20% per channel at rated voltage
Maximum Allowable Input Voltage 30.0 VDC
Status Input Response Time 8 ms or less
Minimum ON Detection Time 20 ms for pushbutton input
Maximum Pushbutton ON/OFF Cycle 25 Hz
Isolation / Withstanding Voltage 2 kVAC for 1 minute between input signal and system; 500 VAC for 1 minute between commons
Common Grouping Common every 16 channels
Maximum Current Consumption 550 mA at 5 VDC
External Connection Dedicated AKB337 cable or MIL connector cable
Redundancy Dual-redundant configuration supported
Weight 0.3 kg
Country of Origin Japan
Shipping Location / Availability Xiamen, China / In stock
Warranty 12 months

Technical Notes

Wiring note: The 24 VDC inputs are common every 16 channels. All voltage input signals connected within the same common group must use the same polarity. Observe the cable and terminal-board wiring shown for the selected connection method.
Replacement note: De-energize field circuits, record the FCS slot assignment, channel mapping, redundancy state and I/O configuration, and keep protective connector caps installed on unused connectors to prevent pin damage and contamination.

FAQ

1Can the Yokogawa ADV161-P50 S2 64-Channel Digital Input Module be selected when an existing panel requires pushbutton-input detection?
For ADV161, P identifies the pushbutton-input function, 5 identifies the version without status display and without explosion protection, and 0 identifies the basic type. Stop the selection if the installed suffix or required indication and protection functions do not match this configuration.
2Can the Yokogawa ADV161-P50 S2 64-Channel Digital Input Module be installed in an existing CENTUM VP FIO node without changing the node architecture?
Yokogawa documents ADV161 for supported CENTUM VP FIO node units and field control units, including ESB, optical ESB and ER-bus node architectures listed in the applicable hardware specification. Hold installation until the exact node and slot configuration is confirmed within that documented scope.
3Can a panel builder mix positive and negative field-input polarity on one Yokogawa ADV161-P50 S2 64-Channel Digital Input Module common group?
No. All 24 VDC input signals connected to the same 16-channel common group must use the same polarity. Separate incompatible circuits or stop the wiring transfer before energizing the field supply.
4What cable and terminal hardware should procurement include for a Yokogawa ADV161-P50 S2 64-Channel Digital Input Module using A1BD5D terminal boards?
The module supports the dedicated AKB337 cable or a suitable MIL connector cable. When A1BD5D DIN-rail terminal boards are used, Yokogawa specifies two terminal boards and two AKB337 cables for one ADV161. Put the order on hold if the quoted accessory scope cannot be matched to the approved terminal arrangement.
5Can the Yokogawa ADV161-P50 S2 64-Channel Digital Input Module be used in a dual-redundant installation?
Yes, provided the node hardware, slot allocation and engineering configuration support the documented dual-redundant arrangement. Do not treat a second module alone as proof of redundancy; stop commissioning if the paired configuration is not recognized by the control system.
6What should a commissioning engineer prove before accepting a Yokogawa ADV161-P50 S2 64-Channel Digital Input Module?
Confirm the assigned node and slot, field-supply behavior, polarity by common group, channel mapping, status response, pushbutton detection where used, cable seating, redundancy health and FCS diagnostics. Acceptance must stop if any channel maps incorrectly, a common group has conflicting polarity, or the configured redundancy state is not healthy.
