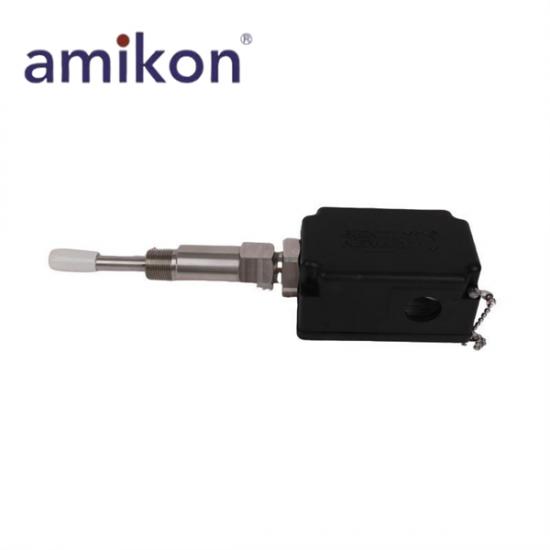

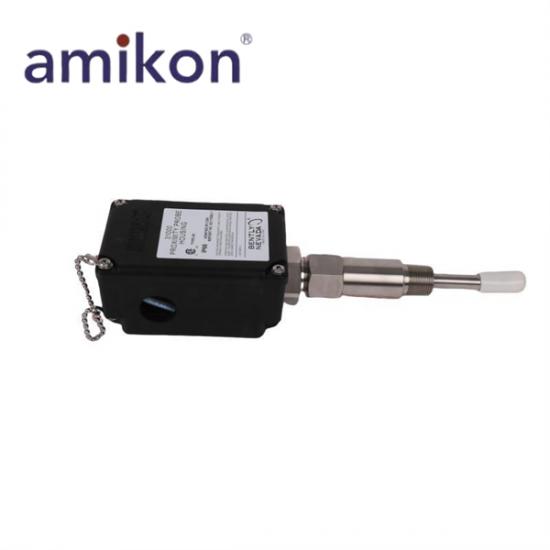

31000-00-00-15-050-02-02 | Bently Nevada Proximity Probe Housing Assembly

Manufacturer: Bently Nevada
Product Model: 31000-00-00-15-050-02-02
Product Type: Proximity Probe Housing Assembly
Place of 0rigin: USA
Probe with Connector: Probe not required
Probe Cable Length: Probe cable not required (Option A must also be 00)
Standoff Adapter Length (Option C Dimension): 1.5 in
Probe Penetration Option (Option D Dimension): 5.0 in
Fittings: Two 3/4-14 NPT fittings, one plug.
Mounting Thread Option: 3/4-14 NPT (Required if ordering Standoff Adapter Option).
Temperature Range: -51 °C to +105 °C (-60 °F to + 221 °F)
Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers
Sleeve Material and Retaining Chain: AISI 304 stainless steel
O-Ring Material: Neoprene

Bently Nevada 31000-00-00-15-050-02-02 is a Proximity Probe Housing Assembly recommended for mounting proximity probes through the machine case, typically with radially mounted transducers for vibration or Keyphasor measurements. The housing provides external access to the proximity probe and extension cable, allowing gap adjustment or probe replacement without machine disassembly. This configuration has a 1.5-inch standoff adapter, 5.0-inch probe penetration, and 3/4-14 NPT mounting thread, while the probe and probe cable are not included.
The 31000-00-00-15-050-02-02 uses glass-reinforced polyphenylene sulfide (PPS) thermoplastic containing conductive fibers, providing high strength and excellent corrosion resistance, while the sleeve and retaining chain are AISI 304 stainless steel with a neoprene O-ring. With a temperature range of -51°C to +105°C, it is suitable for rotating machinery monitoring in oil and gas, petrochemical, power generation, and other industrial applications. The 31000/32000 housing family is fully compliant with API 670 and can be used in intrinsically safe hazardous areas when combined with an approved transducer system and appropriate I.S. barriers.
