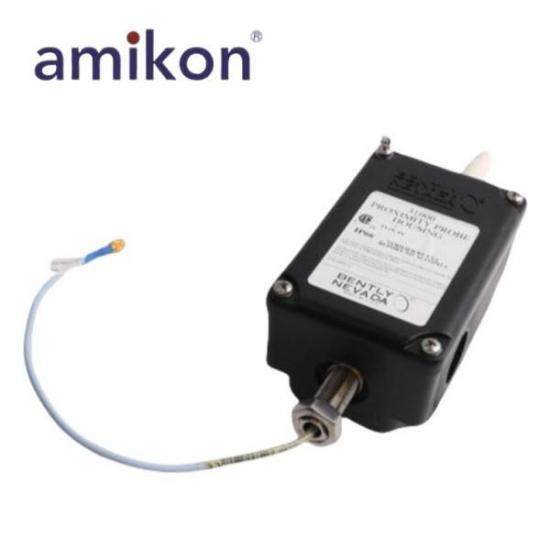

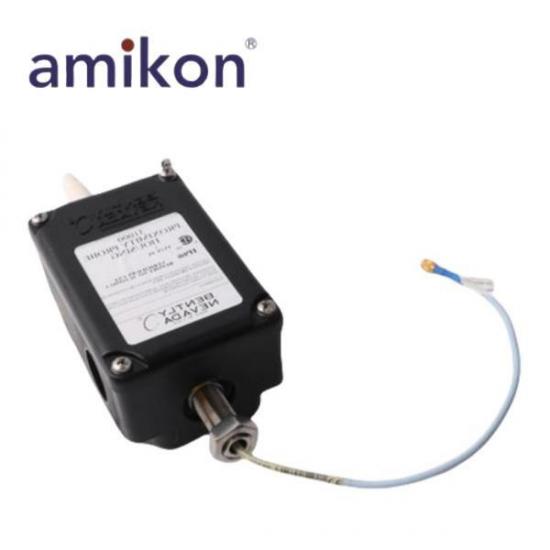

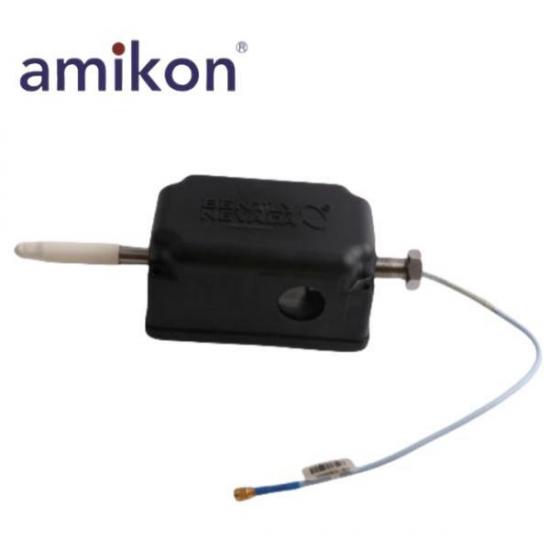

32000-28-10-00-075-02-02 / 32000-28-10-00-430-02-02 Proximity Probe Housing Assembly | Bently Nevada

Manufacturer: Bently Nevada

Product Numbers: 32000-28-10-00-075-02-02 / 32000-28-10-00-430-02-02

Product Type:  Proximity Probe Housing Assembly

Place of 0rigin: USA

Probe with Connector: 3300 XL 8 mm probe, multiple approvals

Probe Cable Length: 1.0 m (39 in)

Standoff Adapter Length (Option C Dimension): 00 mm

Probe Penetration Option (Option D Dimension): 75 mm / 430 mm

Fittings    Two M25 fittings, one plug.

Mounting Thread Option: 3/4-14 NPT (Required if ordering Standoff Adapter Option.)

Temperature Range: -51 °C to +105 °C (-60 °F to + 221 °F)

Housing Material: Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers

Sleeve Material and Retaining Chain: AISI 304 stainless steel

Outer Sleeve and Exterior Screws: AISI 303 stainless steel

O-Ring Material: Neoprene

Protection Ratings: Type 4X rating certified by Canadian Standards Association (CSA)

The Bently Nevada 32000 Series Proximity Probe Housing Assembly (P/N: 32000-28-10-00-075-02-02 / 32000-28-10-00-430-02-02) is a rugged industrial enclosure designed to support 3300 XL 8 mm proximity probes in vibration and position monitoring systems. It provides a secure and adjustable mounting structure for reliable probe installation on rotating machinery such as turbines, compressors, and pumps. The assembly integrates multiple configuration options, including 75 mm or 430 mm probe penetration lengths, ensuring flexibility for different machine geometries and installation requirements.

This housing assembly is constructed from glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic with conductive fibers, offering excellent mechanical strength and electrostatic dissipation. Key components such as sleeves and retaining chains are made from AISI 304 stainless steel, while outer sleeves and screws use AISI 303 stainless steel for enhanced corrosion resistance. With a neoprene O-ring seal and CSA-certified Type 4X protection rating, the unit delivers reliable performance in harsh environments. It operates within a temperature range of -51°C to +105°C, making it suitable for demanding industrial conditions where long-term stability and protection are critical.
