※Product Specifications

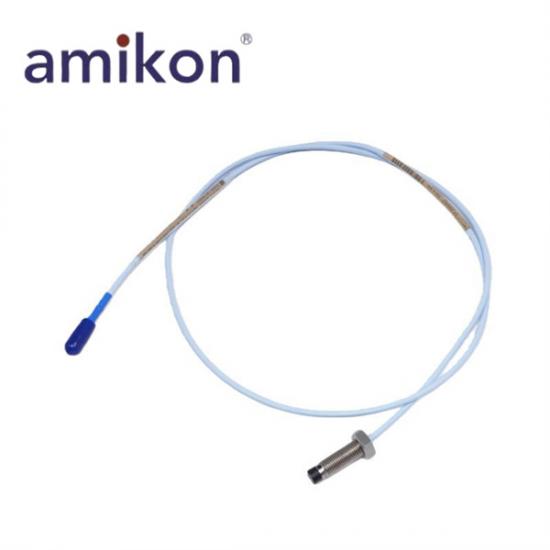

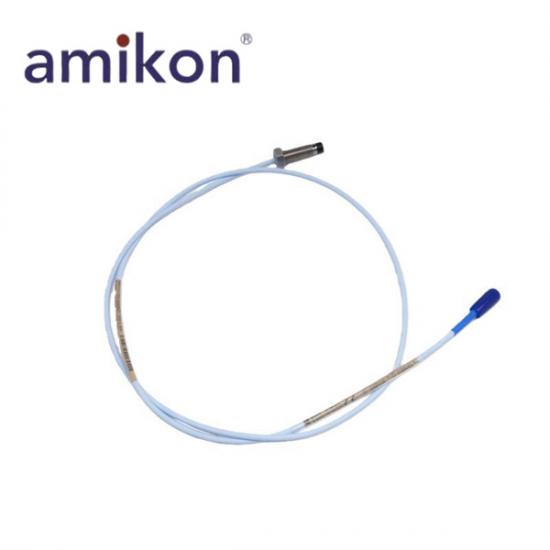

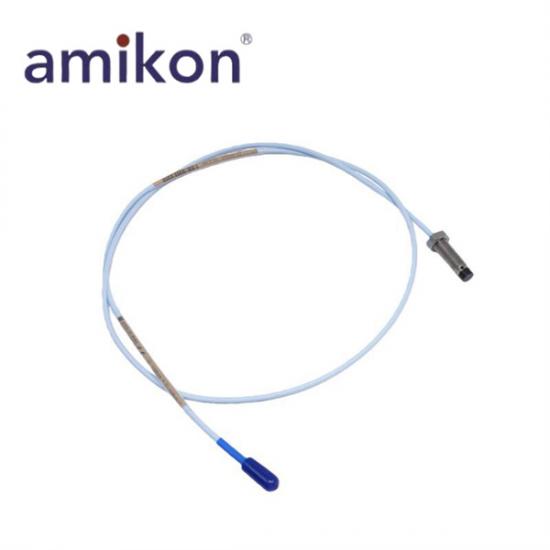

330101-35-62-10-01-05/330101-51-82-10-01-05 | Bently Nevada 3300 XL 8 mm Proximity Probe

Manufacturer: Bently Nevada
Product Numbers: 330101-35-62-10-01-05/330101-51-82-10-01-05
Product Type: 3300 XL 8 mm Proximity Probe
Place of 0rigin: USA
Output Resistance: 50 Ω
Power Supply: -24 Vdc
Load Resistance: 10 kΩ
Probe sealing material: Viton® O ring.
Probe Case Material: AISI 303 or 304 stainless steel (SST).
Probe Tip Material: Polyphenylene sulfide (PPS).
Maximum Altitude: 2000 meters
Operating and Storage Temperature: -52°C to +177°C (-62°F to + 350°F)

Ordering Information for Probes

※Product Description

The Bently Nevada 3300 XL 8 mm Proximity Probe system (330101-35-62-10-01-05 / 330101-51-82-10-01-05) is designed for precise vibration and position monitoring in rotating machinery. It operates as part of a three-component measurement chain including the probe, extension cable, and Proximitor sensor, delivering a voltage signal proportional to the distance between the probe tip and a conductive target surface. With a rugged stainless steel probe case (AISI 303/304), PPS probe tip, Viton® sealing, and CSA/ATEX/IECEx approvals, it is engineered for harsh industrial environments. The system supports both static and dynamic measurements, making it widely used for fluid-film bearing machines, Keyphasor reference, and speed monitoring applications.
The main differences between the two part numbers lie in their mechanical configuration, especially the probe body dimensions. The 330101-35-62-10-01-05 uses a 3.5-inch unthreaded length with a 6.2-inch overall case length, making it more compact for tighter installation spaces. In contrast, the 330101-51-82-10-01-05 features a longer 5.1-inch unthreaded length and an 8.2-inch overall case length, providing extended reach for deeper mounting requirements. Aside from these dimensional differences, both models share identical electrical characteristics, materials, temperature range, cable type, and system compatibility, meaning they perform the same function but are selected based on installation depth and mechanical fit requirements.
