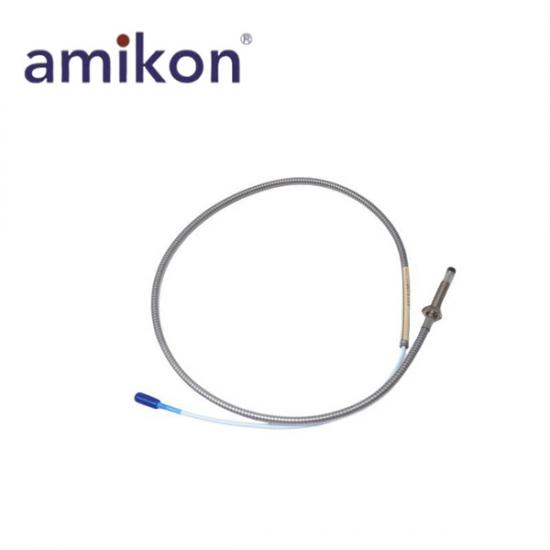

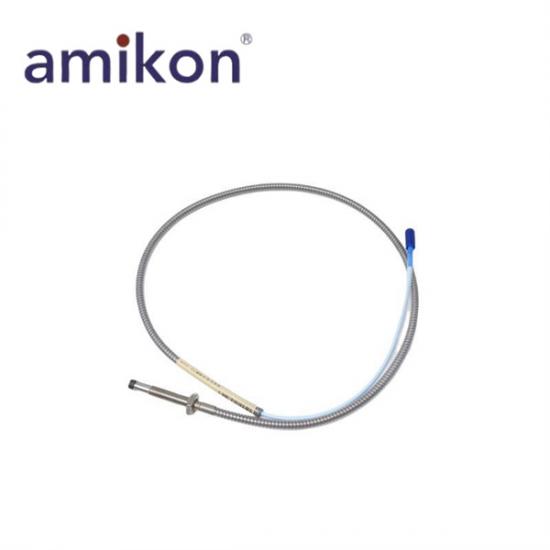

330104-00-09-90-02-00/330104-00-09-50-02-00/330104-04-10-50-02-05 | Bently Nevada 3300 XL 8 mm Proximity Probe
Manufacturer: Bently Nevada
Product Numbers: 330104-00-09-90-02-00/330104-00-09-50-02-00/330104-04-10-50-02-05
Product Type: 3300 XL 8 mm Proximity Probe
Place of 0rigin: USA
Probe structure: with armor
Thread specification: M10 x 1 thread
Probe sealing material: Viton® O ring.
Probe Case Material: AISI 303 or 304 stainless steel (SST).
Probe Tip Material Polyphenylene sulfide (PPS).
Probe Relative Humidity: Less than a 3% change in Average Scale Factor (ASF) when tested in 93% humidity in accordance with IEC standard 68 2 3 for up to 56 days.
Ordering Information for Probes
Product Numbers
330104-00-09-90-02-00
330104-00-09-50-02-00
330104-04-10-50-02-05
Unthreaded Length Option
00 mm
40 mm
Overall Case Length Option
90 mm
100 mm
Total Length Option
9.0 meters (29.5 feet)
5.0 meters (16.4 feet)
Connector and Cable-Type Option
Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option
Not required
CSA, ATEX, IECEx Approvals
Connector and Cable-Type Option
Miniature coaxial ClickLoc connector, standard cable
Nominal Probe DC Resistance
9.87 ± 0.50 Ω
8.73 ± 0.50 Ω
The Bently Nevada 330104-00-09-90-02-00 / 330104-00-09-50-02-00 / 330104-04-10-50-02-05 3300 XL 8 mm Proximity Probe is part of the 3300 XL 8 mm Proximity Transducer System. The system consists of one 3300 XL 8 mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor. The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. Its primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers advanced performance in eddy current proximity transducer systems.
The 330104-00-09-90-02-00 / 330104-00-09-50-02-00 / 330104-04-10-50-02-05 probe features with armor probe structure, M10 x 1 thread specification, Viton® O ring sealing material, and AISI 303 or 304 stainless steel (SST) probe case material with Polyphenylene sulfide (PPS) probe tip material. Probe Relative Humidity performance shows less than a 3% change in Average Scale Factor (ASF) when tested in 93% humidity in accordance with IEC standard 68-2-3 for up to 56 days. Probe Pressure is designed to seal differential pressure between the probe tip and case. Unthreaded Length Option includes 00 mm and 40 mm. Overall Case Length Option includes 90 mm and 100 mm. Total Length Option includes 9.0 meters (29.5 feet) and 5.0 meters (16.4 feet). Connector and Cable-Type Option is Miniature coaxial ClickLoc connector with standard cable. Agency Approval Option includes Not required or CSA, ATEX, IECEx approvals. Nominal Probe DC Resistance is 9.87 ± 0.50 Ω and 8.73 ± 0.50 Ω depending on configuration.
