Bently Nevada 330104-10-15-05-12-05
Brand:
Bently NevadaPayment:
T/TProduct Origin:
USALead Time:
IN STOCKManufacturer:
Bently NevadaPart number:
330104-10-15-05-12-05Dimension:
32x30x2cmWeight:
0.2kgHS CODE:
8537101190Warranty:
12 month|
Product Information |
Manufacturer: Bently Nevada
Product Numbers: 330104-10-15-05-12-05
Product Type: 3300 XL 8 mm Proximity Probe
Place of 0rigin: USA
Probe Case Material: AISI 303 or 304 stainless steel (SST).
Probe Tip Material: Polyphenylene sulfide (PPS).
Probe sealing material: Viton® O ring.
Probe Relative Humidity: Less than a 3% change in Average Scale Factor (ASF) when tested in 93% humidity in accordance with IEC standard 68 2 3 for up to 56 days.
Nominal Probe DC Resistance: 7.45 ± 0.50 Ω
Unthreaded Length Option: 100 mm
Overall Case Length Option: 150 mm
Total Length Option: 0.5 meter (1.6 feet)
Connector and Cable-Type Option: Miniature coaxial ClickLoc connector, FluidLoc cable
Agency Approval Option: CSA, ATEX, IECEx Approvals

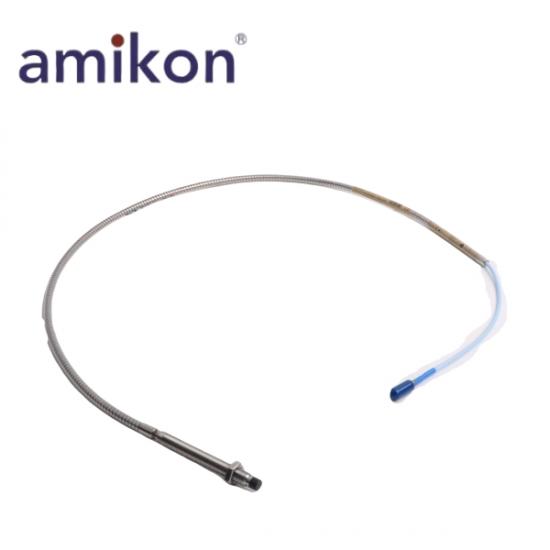

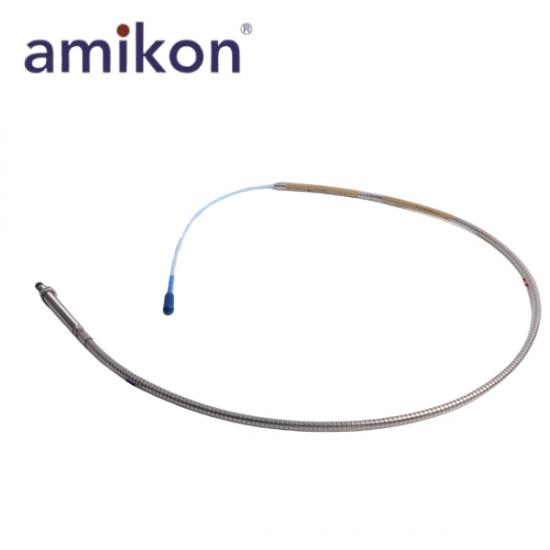

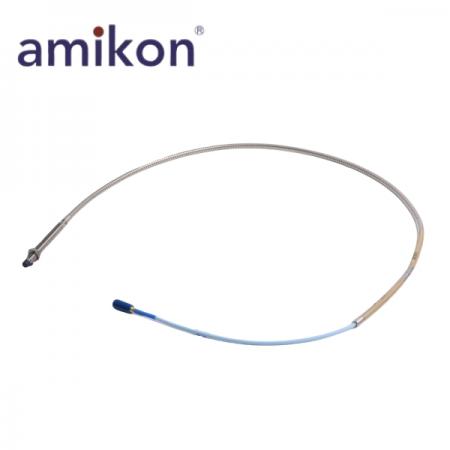

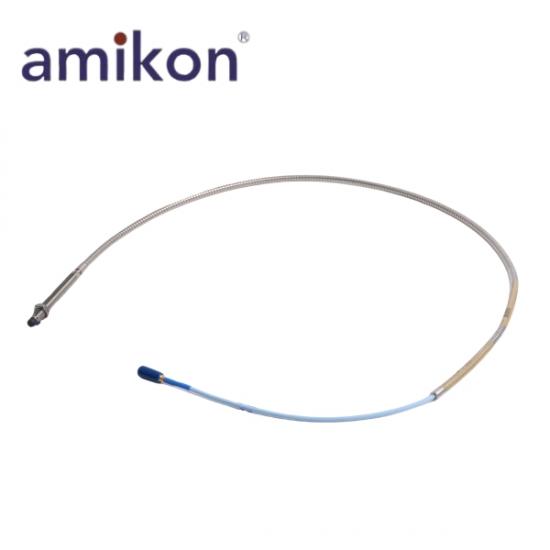

The Bently Nevada 330104-10-15-05-12-05 3300 XL 8 mm Proximity Probe is designed for accurate and stable vibration and position measurement in rotating machinery. It features a stainless steel (AISI 303/304) probe case, a durable PPS probe tip, and a Viton® O-ring seal for reliable environmental protection. With a 0.5 m total length, 100 mm unthreaded length, and 150 mm overall case length, the probe ensures flexible installation. Its nominal DC resistance of 7.45 ± 0.50 Ω and strong humidity stability (less than 3% ASF variation at 93% RH) support consistent measurement performance.
The probe incorporates advanced TipLoc and CableLoc technologies, enhancing mechanical strength and providing up to 330 N pull force for secure cable attachment. Equipped with a miniature coaxial ClickLoc connector and optional FluidLoc cable, it helps prevent fluid ingress and leakage, making it suitable for harsh industrial environments. Certified with CSA, ATEX, and IECEx approvals, this probe is widely used in critical applications such as turbines, compressors, and other high-value rotating equipment.
|
