330908-00-15-10-02-05 | Bently Nevada 3300 NSv Proximity Probe

✣ Product Information ✣

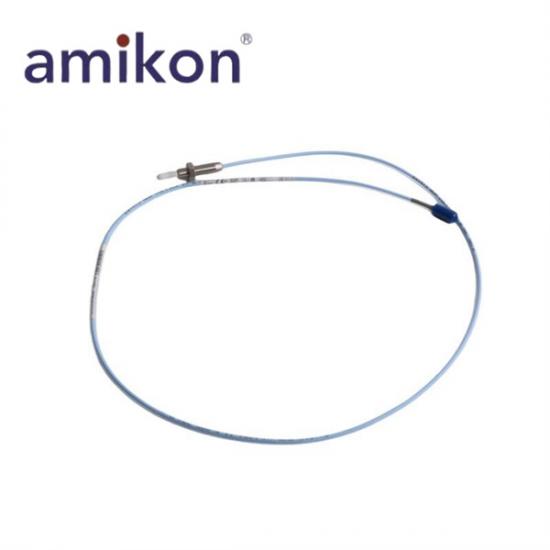

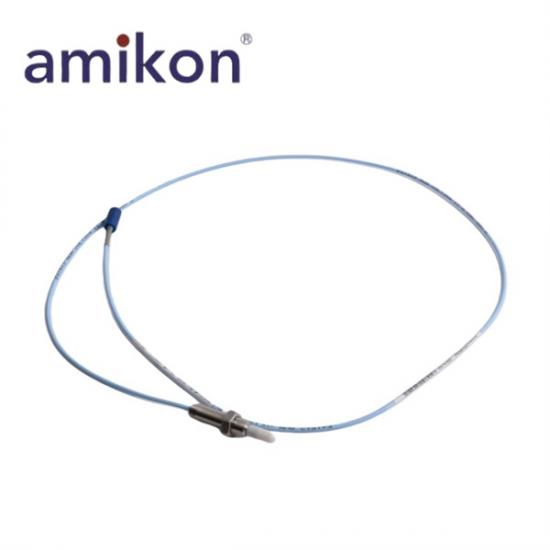

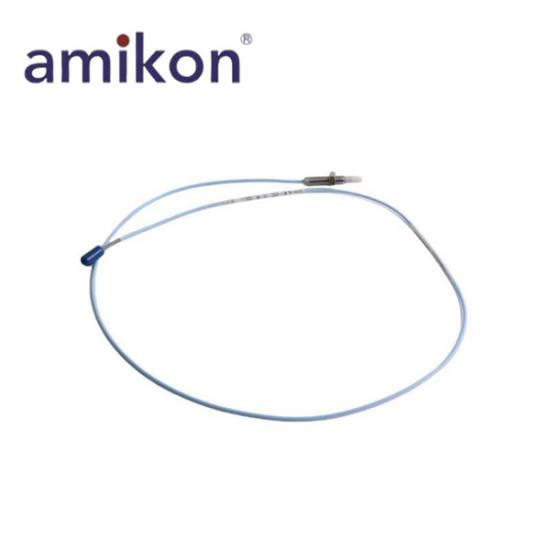

The Bently Nevada 330908-00-15-10-02-05 3300 NSv Proximity Probe is designed for non-contact vibration and position measurement on rotating machinery with limited installation space. As part of the 3300 XL NSv Proximity Transducer System, it is widely used on centrifugal air compressors, refrigeration compressors, process gas compressors, and other fluid-film bearing machines where standard 5 mm or 8 mm transducer systems cannot be installed. The probe supports radial vibration, radial position, axial thrust position, tachometer, zero-speed, and Keyphasor® measurements, making it suitable for a wide range of machinery protection applications.
Optimized for compact installations, the 330908-00-15-10-02-05 features a 3/8-24 UNF thread, 1.0 m standard cable, and a Miniature ClickLoc coaxial connector with Multiple Approvals. The 3300 XL NSv Transducer System offers improved side-view performance and excellent small-target measurement capability, making it ideal for shafts smaller than 51 mm (2 in) or flat targets smaller than 15 mm (0.6 in). It can also replace previous 3300 RAM, 3000-series, and 7000-series 190 transducer systems, providing a practical upgrade path for existing machinery monitoring installations.

✣ Technical Data ✣

Manufacturer: Bently Nevada
Product Model: 330908-00-15-10-02-05
Product Type: 3300 NSv Proximity Probe
Place of 0rigin: USA
Unthreaded Length Option : 0.0 in
Overall Case Length Option: 1.5 in
Total Length Option: 1.0 meter (39 in)
Connector and Cable-Type Option: Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option: Multiple Approvals
Cable-Type: standard cable
Probe Case Thread: 3/8-24 UNF thread

✣ Need Assistance? ✣

For pricing, stock availability, or additional product information, feel free to contact us.

✣ Why Partner With Us? ✣

Industrial Automation Parts Supply

We supply a wide range of industrial automation components, including PLCs, DCS modules, HMI panels, servo drives, power supplies, I/O modules, communication modules, and other control system spare parts.

Worldwide Shipping

Orders can be shipped to customers in many countries through established international carriers, with delivery options selected according to destination and urgency.

Export Documentation

We provide standard export documents and assist with shipping paperwork to help support international orders.

Careful Packaging

Products are packed carefully before shipment to help reduce the risk of damage during transportation.

Product Sourcing

If a required part is difficult to find, we can help check availability through our supplier network and provide sourcing support whenever possible.

Customer Support

Our team responds to product inquiries, quotations, and order updates, helping customers obtain the information needed before and after purchase.

✣FAQ ✣

1. What is the 330105 Reverse Mount Probe used for?
It is used for shaft vibration and axial position monitoring in turbines, compressors, motors, pumps, and other rotating machinery where reverse mounting is required.

2. What is the advantage of the Reverse Mount design?
The reverse mount configuration allows installation from the back side of the mounting surface, making it ideal for equipment with limited front access or specialized mounting requirements.

3. What are the benefits of TipLoc and CableLoc technology?
TipLoc strengthens the bond between the probe tip and body, while CableLoc increases cable retention strength to 330 N (75 lbf), improving durability in high-vibration environments.

4. Is the probe approved for hazardous locations?
Yes. Agency Approval Option 05 includes CSA, ATEX, and IECEx certifications for use in approved hazardous environments.

5. What is the purpose of the optional FluidLoc cable?
FluidLoc technology prevents oil and other process fluids from traveling through the cable interior, helping protect monitoring systems in oil-lubricated machinery.
