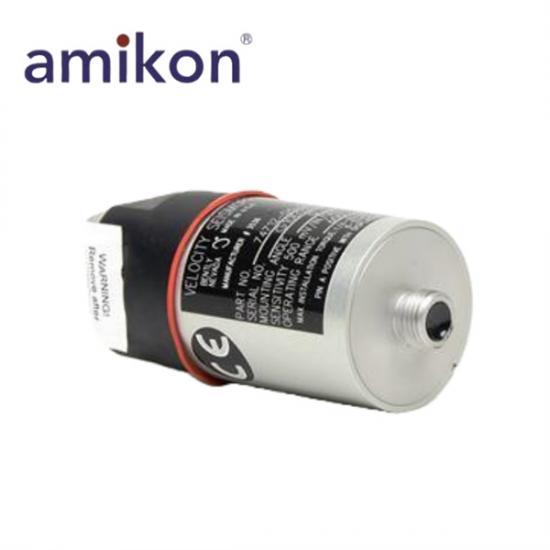

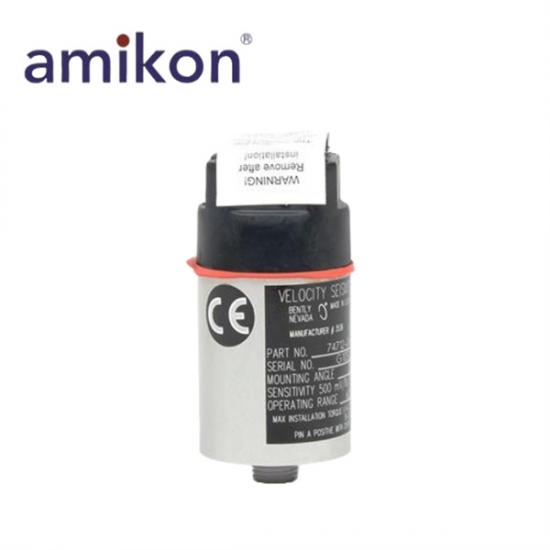

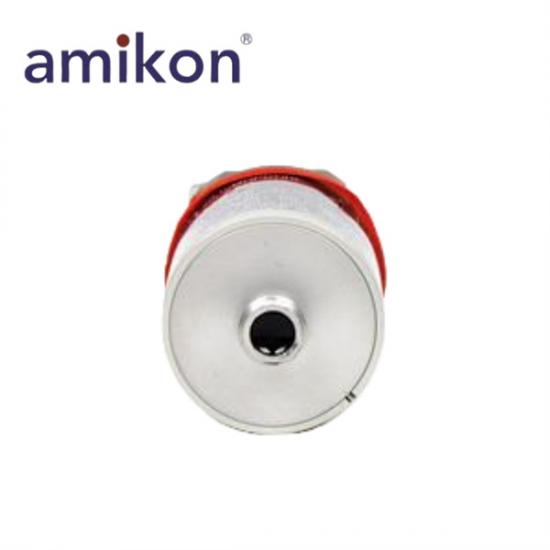

74712-01-10-02-00 Bently Nevada | High-temperature Two-wire Transducer

✣ Product Information ✣

The Bently Nevada 74712-01-10-02-00 High-temperature Two-wire Transducer is a moving-coil velocity transducer designed to measure absolute vibration of bearing housings, machine casings, and structural components. As part of the Bently Nevada Seismoprobe™ Velocity Transducer System, it delivers a voltage output directly proportional to vibration velocity without requiring an external power supply, making it suitable for continuous monitoring and portable measurement applications.
Built for reliable operation in demanding industrial environments, the 74712-01-10-02-00 features a top-mount connector, circular M10×1 stud mounting base, and a 0 ±2.5° mounting angle. The moving-coil design offers reduced sensitivity to impact and impulsive excitation compared with solid-state velocity transducers, while providing dependable vibration measurement with a minimum operating frequency of 4.5 Hz, 1.25 kΩ coil resistance, and a 25 mm/s (1 in/s) velocity range at 100 Hz.

✣ Technical Data ✣

Manufacturer: Bently Nevada
Product Model: 74712-01-10-02-00
Product Type: High-temperature Two-wire Transducer
Place of 0rigin: USA
Transducer Mounting Angle: 0 ±2.5°
Minimum Operating Frequency: 4.5 Hz (270 cpm)
Mounting Base: Circular; M10X1 stud
Connector: Top Mount
Sensitivity Temperature Coefficient: 0.2%/°C
Coil Resistance: 1.25 kΩ ±5%
Locked Coil Inductance: 125 mH, typical
Velocity Range: 25 mm/s (1 in/s) (at +22 °C of casing vibration at 100 Hz with a 10 kΩ load.

✣ Need Assistance? ✣

For pricing, stock availability, or additional product information, feel free to contact us.

✣ Why Partner With Us? ✣

Industrial Automation Parts Supply

We supply a wide range of industrial automation components, including PLCs, DCS modules, HMI panels, servo drives, power supplies, I/O modules, communication modules, and other control system spare parts.

Worldwide Shipping

Orders can be shipped to customers in many countries through established international carriers, with delivery options selected according to destination and urgency.

Export Documentation

We provide standard export documents and assist with shipping paperwork to help support international orders.

Careful Packaging

Products are packed carefully before shipment to help reduce the risk of damage during transportation.

Product Sourcing

If a required part is difficult to find, we can help check availability through our supplier network and provide sourcing support whenever possible.

Customer Support

Our team responds to product inquiries, quotations, and order updates, helping customers obtain the information needed before and after purchase.

✣FAQ ✣

1. What is the Bently Nevada 74712-01-10-02-00 used for?
The 74712-01-10-02-00 is used to measure absolute vibration of bearing housings, machine casings, and structural components in industrial rotating equipment.

2. Why does the 74712-01-10-02-00 use moving-coil technology?
Moving-coil technology provides a voltage output directly proportional to vibration velocity and is less sensitive to impact or impulsive excitation than solid-state velocity transducers.

3. How does the Bently Nevada 74712-01-10-02-00 simplify installation?
The transducer operates as a two-wire device and does not require an external power supply, making installation straightforward for both permanent and portable measurement applications.

4. Can the 74712-01-10-02-00 be used for portable vibration measurements?
Yes. Because the 74712-01-10-02-00 does not require external power, it is well suited for portable vibration monitoring as well as fixed installations.

5. What mounting configuration does the Bently Nevada 74712-01-10-02-00 support?
The transducer features a circular M10×1 stud mounting base, a top-mount connector, and a 0 ±2.5° mounting angle for secure installation in vibration monitoring systems.
