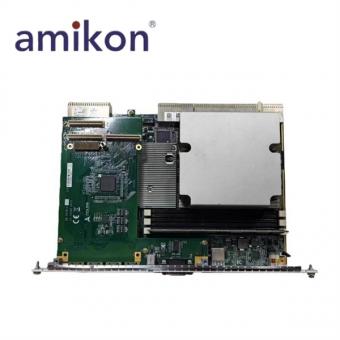

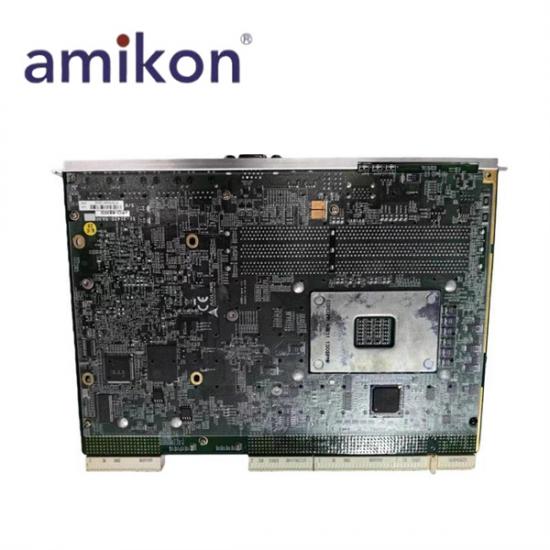

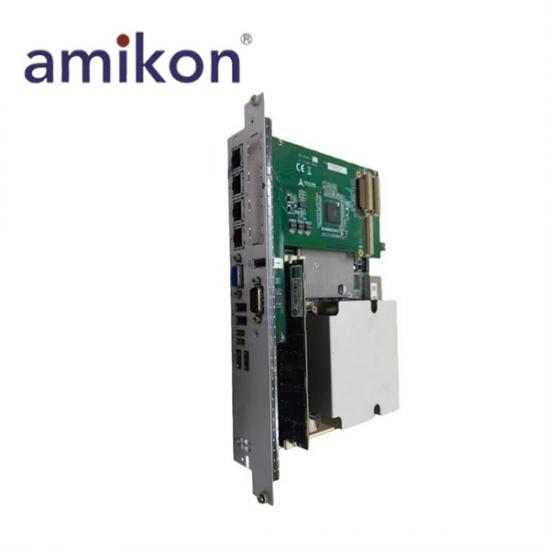

ADLINK CPCI-6930D 6U CompactPCI Dual-Slot Single Board

Manufacturer: ADLINK
Product Model: CPCI-6930D
Product Type: 6U CompactPCI Dual-Slot Single Board
Country of origin: Taiwan
Chipset: Intel® C600 PCH
Memory: Three channel DDR3-1600 ECC register SDRAM with three RDIMM slots, up to 192GB capacity (dependent on availability of memory modules)
BIOS: AMI® EFI BIOS, 64Mbit SPI flash memory
Operating Temperature: 0°C to +55°C with forced air flow
Storage Temperature: -40°C to +85°C
RH Humidity: 95% non-condensing
Shock: 15G peak-to-peak, 11ms duration, non-operating
Vibration: 2 Grms random vibration, 5-500Hz, each axis, operating
Power Consumption: 8-C Xeon E5-2448L processor, 12GB DDR3-1600 under Windows 7 with 100% CPU usage;19.6A@5V, 4.6A@3.3V, total 113.2W when Turbo boost and HT enabled; 16.7A@5V, 4.4A@3.3V, total 98W when Turbo boost and HT disabled.

The ADLINK CPCI-6930D is a 6U CompactPCI dual-slot single board designed for high-performance computing in rugged industrial environments. Powered by the Intel® C600 PCH chipset, it supports Intel® Xeon E5-2448L processors and provides three-channel DDR3-1600 ECC registered SDRAM with up to 192GB capacity via three RDIMM slots, allowing for robust memory performance tailored to demanding applications. The board features an AMI® EFI BIOS stored in 64Mbit SPI flash memory, ensuring reliable system initialization and flexible configuration options.
Engineered for durability, the CPCI-6930D operates in temperatures from 0°C to +55°C with forced airflow and can withstand storage conditions ranging from -40°C to +85°C. It is resistant to shocks of 15G peak-to-peak (11ms) and random vibrations of 2 Grms across 5–500Hz on each axis. With power consumption optimized for both performance and efficiency, the board delivers up to 113.2W under full CPU load with Turbo Boost and Hyper-Threading enabled, and 98W with these features disabled. Its rugged design and high compute capacity make it ideal for industrial automation, defense, and other mission-critical applications.
