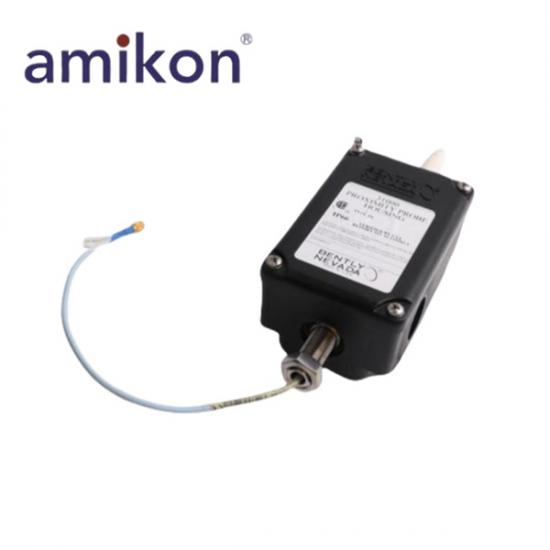

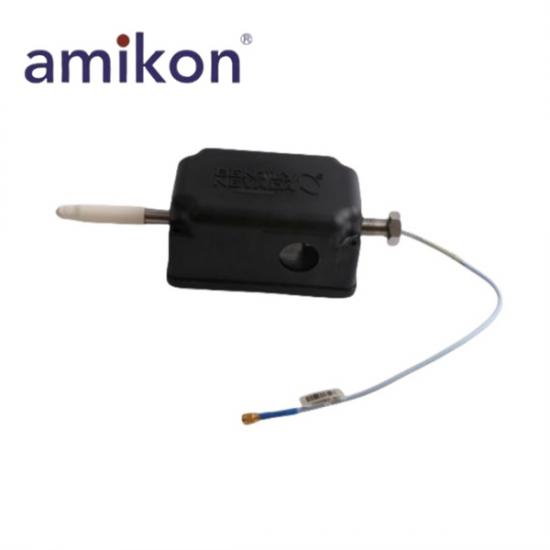

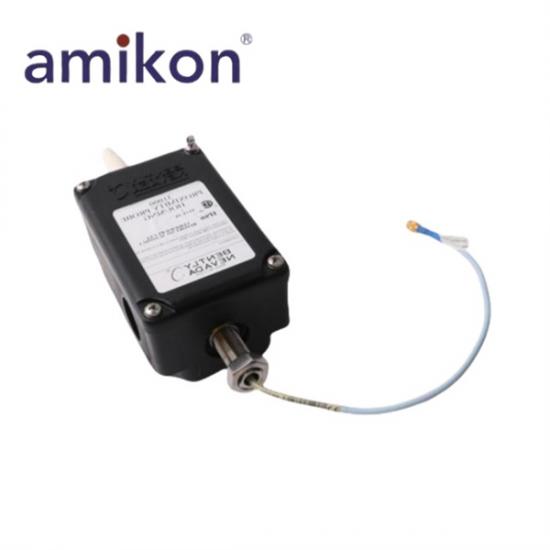

Bently Nevada 31000-28-05-40-040-02-02 Proximity Probe Housing Assembly

✣ Product Information ✣

Installed on the outside of the machine casing, the Bently Nevada 31000-28-05-40-040-02-02 Proximity Probe Housing Assembly provides convenient access to a 3300 XL 8 mm proximity probe for radial vibration and Keyphasor® measurements. By allowing technicians to adjust the probe gap or replace the probe without opening the machine, the assembly helps reduce maintenance time and supports continuous condition monitoring of turbines, compressors, pumps, motors, and other critical rotating equipment.
Constructed for long-term service in industrial environments, the 31000-28-05-40-040-02-02 combines a polyphenylene sulfide (PPS) housing with AISI 304 and AISI 303 stainless steel components to deliver excellent corrosion resistance and mechanical durability. The assembly includes a 0.5 m probe cable, 4.0 in standoff adapter, 4.0 in probe penetration, 3/4-14 NPT mounting thread, and two 3/4-14 NPT fittings with one plug. Fully compliant with API 670, it can be installed with an approved transducer system and appropriate intrinsic safety barriers for reliable machinery protection.

✣ Technical Data ✣

Manufacturer: Bently Nevada
Product Model: 31000-28-05-40-040-02-02
Product Type: Proximity Probe Housing Assembly
Place of 0rigin: USA
Probe with Connector: 3300 XL 8 mm probe, multiple approvals
Probe Cable Length: 0.5 m (20 in)
Standoff Adapter Length: 4.0 in
Probe Penetration: 4.0 in
Fittings: Two 3/4-14 NPT fittings, one plug
Mounting Thread: 3/4-14 NPT
Sleeve Material and Retaining Chain: AISI 304 stainless steel
Outer Sleeve and Exterior Screws: AISI 303 stainless steel

✣ Need Assistance? ✣

For pricing, stock availability, or additional product information, feel free to contact us.

✣ Why Partner With Us? ✣

Industrial Automation Parts Supply

We supply a wide range of industrial automation components, including PLCs, DCS modules, HMI panels, servo drives, power supplies, I/O modules, communication modules, and other control system spare parts.

Worldwide Shipping

Orders can be shipped to customers in many countries through established international carriers, with delivery options selected according to destination and urgency.

Export Documentation

We provide standard export documents and assist with shipping paperwork to help support international orders.

Careful Packaging

Products are packed carefully before shipment to help reduce the risk of damage during transportation.

Product Sourcing

If a required part is difficult to find, we can help check availability through our supplier network and provide sourcing support whenever possible.

Customer Support

Our team responds to product inquiries, quotations, and order updates, helping customers obtain the information needed before and after purchase.

✣FAQ ✣

1. What is the Bently Nevada 31000-28-05-40-040-02-02 used for?
The 31000-28-05-40-040-02-02 is used to externally mount a 3300 XL 8 mm proximity probe for vibration and Keyphasor® measurements on rotating machinery.

2. Why is the 31000-28-05-40-040-02-02 installed through the machine casing?
Mounting through the machine case provides external access to the probe and extension cable, making gap adjustment and probe replacement possible without disassembling the equipment.

3. How does the Bently Nevada 31000-28-05-40-040-02-02 improve maintenance efficiency?
The housing allows maintenance personnel to service or replace the proximity probe from outside the machine, reducing downtime and simplifying maintenance procedures.

4. Can the 31000-28-05-40-040-02-02 be used in corrosive industrial environments?
Yes. The housing combines a PPS body with AISI 304 and AISI 303 stainless steel components to provide excellent corrosion resistance for demanding industrial applications.

5. Which applications commonly use the Bently Nevada 31000-28-05-40-040-02-02?
The 31000-28-05-40-040-02-02 is commonly applied to turbines, compressors, pumps, motors, and other critical rotating machinery requiring reliable radial vibration or Keyphasor® monitoring while complying with API 670 standards.
