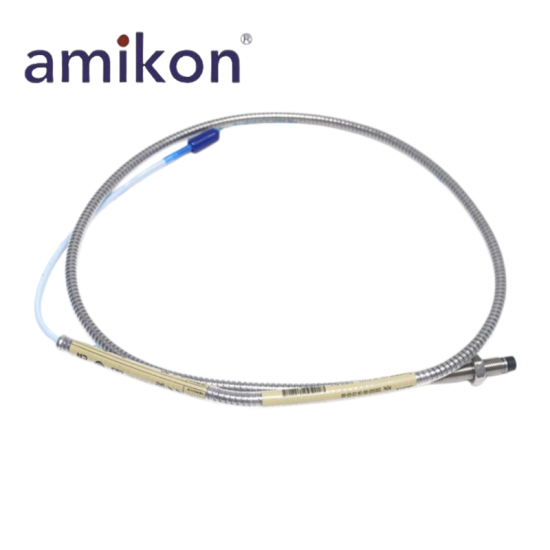

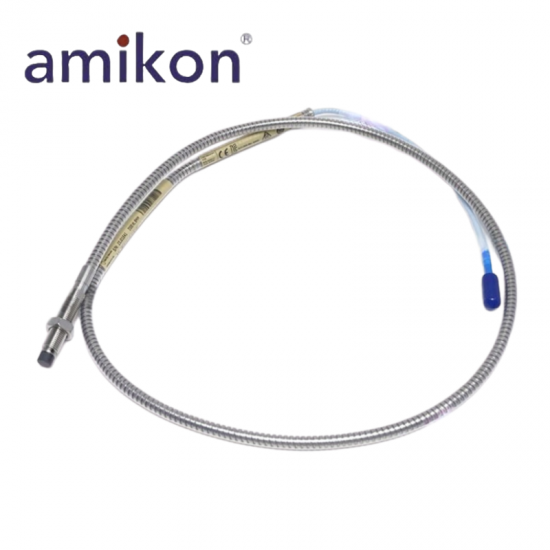

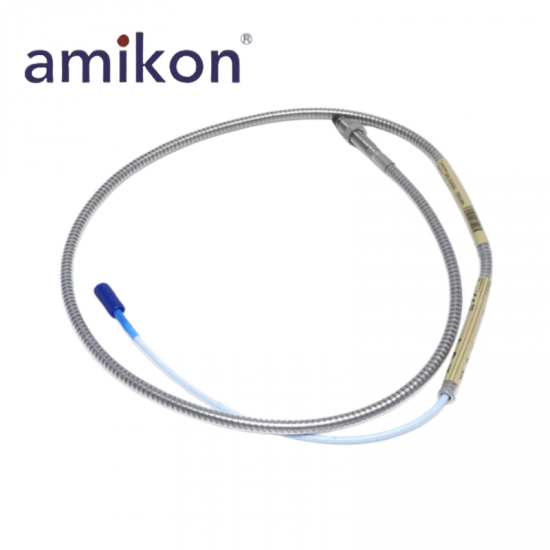

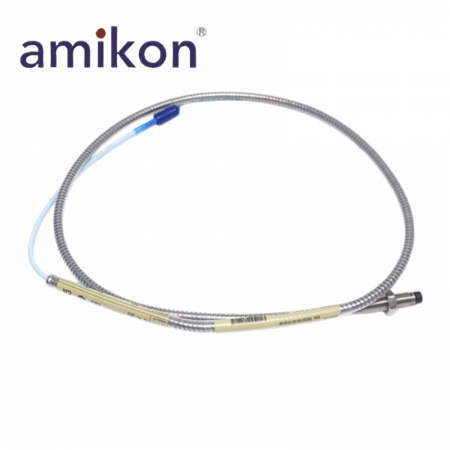

Bently Nevada 330102-00-16-10-02-05 Armored Proximity Probe

Contact Info

ü Sales manager：Jim Pei

ü Email：sales6@amikon.cn

ü Wechat: ZXH18020776782

ü Phone/WhatsApp：+86 18020776782

Product Description

Product Model: 330102-00-16-10-02-05

Product Parameters: Armored Proximity Probe

Country of origin: USA

Place of shipment: Xiamen, China

Manufacturer: Bently Nevada

Stock: 1

Thread Size: 3/8-24 UNF

Unthreaded Length: 0.0 in.

Overall Case Length: 1.6 in.

Total Length: 1.0 meter (3.3 feet)

Connector and Cable: Miniature coaxial ClickLoc connector

Type Option: standard cable

Agency Approval: CSA, ATEX, IECEx Approvals

Linear Range: 2 mm (80 mils) from 0.25 to 2.3 mm

Incremental Scale Factor: 7.87 V/mm (200 mV/mil) ±5%

Deviation from Best Fit Straight Line: ≤ ±0.025 mm (±1 mil) @ 0–45°C

DC Resistance (Probe): 7.59 Ω ±0.50 @ 1.0 m

Output Resistance: 50 Ω

Operating Temperature (Probe): -52°C to +177°C

Storage Temperature: -52°C to +177°C

Pressure Seal: Viton O-ring (differential pressure)

Tensile Strength: 330 N (75 lbf) probe case to cable

Minimum Bend Radius: 25.4 mm (1.0 in)

Advantage

True Interchangeability Without System Recalibration
Compared with conventional proximity probe systems, the 330102-00-16-10-02-05 allows full interchangeability across probes, cables, and Proximitor modules without bench calibration. This significantly reduces maintenance time and eliminates downtime caused by loop recalibration.

API 670 Compliant for Critical Machinery Protection
Unlike non-standard industrial probes, this model fully meets API 670 requirements for mechanical configuration and temperature stability. This ensures reliable use in turbines, compressors, and other critical rotating equipment in power generation and petrochemical industries.

Armored Cable for Superior Mechanical Protection
The stainless-steel armored FEP-insulated cable provides 330 N pull strength and strong resistance to crushing, abrasion, and cutting. Compared with standard unarmored probes, it offers far greater durability in tight conduit routing and high-vibration environments.

Wide Temperature Range for Extreme Industrial Conditions
Operating from -52°C to +177°C, the probe maintains stable performance in both high-temperature turbine sections and cold outdoor installations. This makes it more reliable than many standard probes that have narrower temperature limits.

High Measurement Accuracy with Low Deviation
With a ±5% scale factor accuracy and very low deviation (≤ ±0.025 mm), the probe ensures precise vibration and displacement measurement. This improves early fault detection and enhances machinery protection performance.

Hazardous Area Certified for Global Deployment
CSA, ATEX, and IECEx approvals allow installation in Zone 0/2 and Division 2 hazardous environments. Compared with non-certified probes, this simplifies compliance and enables deployment across global industrial sites.
