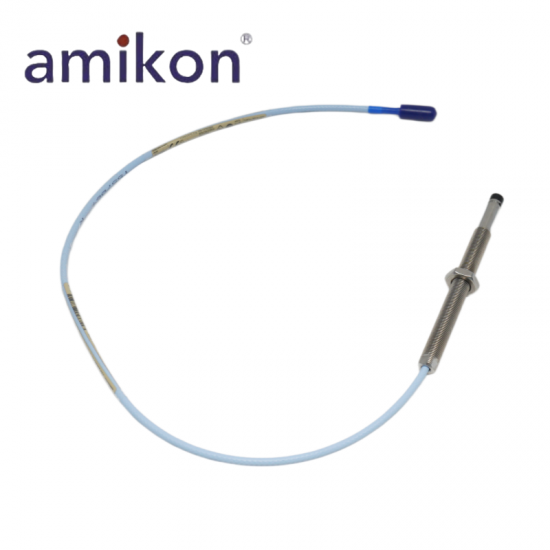

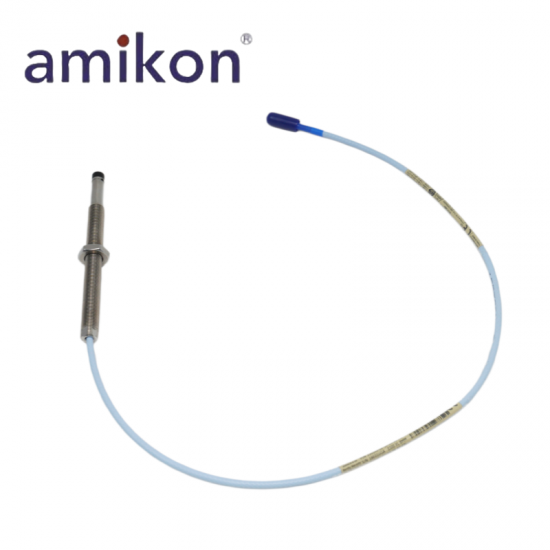

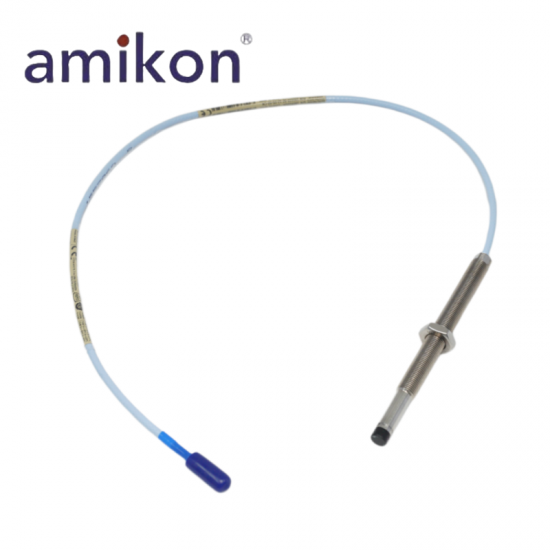

Bently Nevada 330103-02-10-10-01-CN Proximity Probe

Contact Info

ü Sales manager：Jim Pei

ü Email：sales6@amikon.cn

ü Wechat: ZXH18020776782

ü Phone/WhatsApp：+86 18020776782

Product Description

Product Model: 330103-02-10-10-01-CN

Product Parameters: Proximity Probe

Country of origin: USA

Place of shipment: Xiamen, China

Manufacturer: Bently Nevada

Unthreaded Length: 20 mm

Overall Case Length: 100 mm

Total Length: 1.0 meter (3.3 feet)

Connector and Cable-Type: Miniature coaxial ClickLoc connector with connector protector, standard cable

Measurement Range: 2 mm (80 mils)

Incremental Scale Factor: 7.87 V/mm (200 mV/mil) ± 5%

Linear Range (Gap): 0.25 mm to 2.3 mm (10 to 90 mils)

Recommended Gap (Vibration): -9 Vdc (approx. 1.27 mm / 50 mils)

Probe Tip Material: Polyphenylene sulfide (PPS)

Case Material: AISI 303/304 Stainless Steel

Operating Temperature (Probe): -52°C to +177°C (-62°F to +350°F)

Tensile Strength: 330 N (75 lbf) probe case to lead

Minimum Cable Bend Radius: 25.4 mm (1.0 in)

Advantage

Full API 670 Compliance
The 330103-02-10-10-01-CN fully complies with API 670 requirements for machinery protection systems, ensuring reliable vibration and position monitoring in critical applications such as turbines, compressors, and pumps. This compliance simplifies specification and acceptance in refinery, power generation, and petrochemical projects.

Patented TipLoc™ and CableLoc™ Technology
Unlike conventional probes that can suffer from tip loosening or cable separation, the patented TipLoc™ and CableLoc™ designs provide exceptional mechanical strength and long-term durability. With a pull strength of up to 330 N (75 lbf), the probe maintains dependable performance in high-vibration environments.

Gold-Plated ClickLoc™ Connector
The corrosion-resistant gold-plated ClickLoc™ connector ensures a secure, vibration-resistant connection while minimizing signal loss and electrical noise. Compared with standard connectors, it offers greater reliability and reduced maintenance requirements over the product lifecycle.

High Accuracy and Stable Signal Output
With an incremental scale factor of 7.87 V/mm (200 mV/mil) ±5% and a precise 2 mm measurement range, the probe delivers accurate shaft vibration and displacement measurements. This enables earlier fault detection and more effective machinery protection.

Rugged Industrial Construction
Constructed with a PPS probe tip and AISI 303/304 stainless-steel housing, the probe offers excellent resistance to corrosion, mechanical wear, and harsh industrial conditions. It is designed to maintain performance in demanding operating environments.

Seamless 3300 XL System Integration
As a fully interchangeable component within the 3300 XL platform, the probe can be installed without field recalibration or matching. This reduces maintenance time, simplifies spare parts management, and lowers overall operating costs compared with less standardized monitoring systems.
