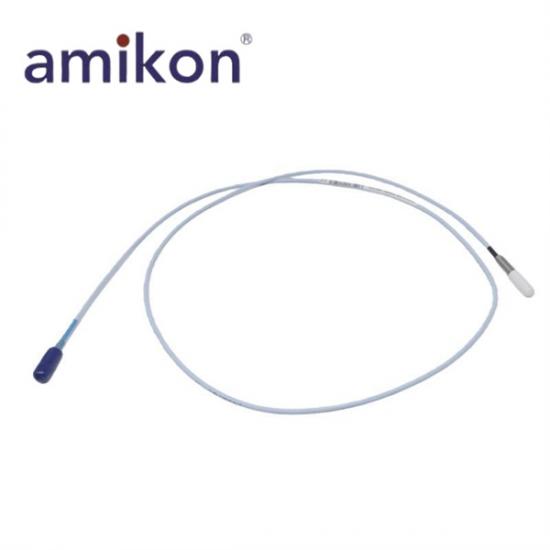

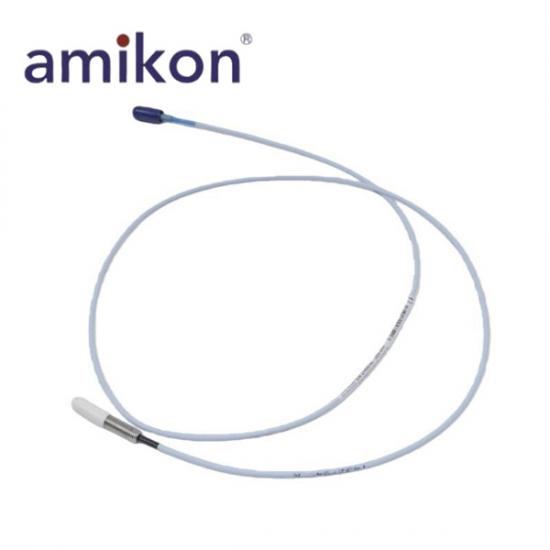

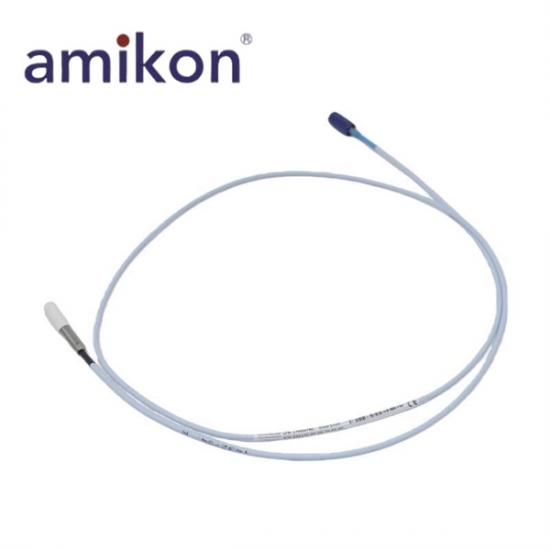

Bently Nevada 330171-00-24-10-02-00 / 330171-00-14-10-02-05 3300 5mm Proximity Probe

✣ Product Information ✣

The Bently Nevada 330171 series is a 3300 5 mm proximity probe, built with patented TipLoc molding technology that delivers reliable, strong bonding between the probe tip and probe body. Constructed from stainless steel housing and PPS probe tip, this proximity sensor features 1/4-28 UNF thread, 75 Ω triaxial FEP-insulated cable without armor, and stable performance across a wide working temperature range of -35°C to +177°C. It supports optional Fluidloc cable structure to avoid liquid leakage inside equipment and is widely used for shaft vibration and position monitoring on rotating machinery.
Available in multiple configuration variants including 330171-00-24-10-02-00 and 330171-00-14-10-02-05, this proximity probe adopts miniature coaxial ClickLoc connector. Under standard operating conditions, its scale factor stays consistent within tolerance, offering stable signal output of 7.87 V/mm (200 mV/mil). Powered by -24 VDC supply, it perfectly matches Bently Nevada 3300 monitoring systems for industrial turbomachinery protection and condition monitoring.

✣ Technical Data ✣

Manufacturer: Bently Nevada
Product Model: 330171-00-24-10-02-00 / 330171-00-14-10-02-05
Product Type: 3300 5mm Proximity Probe
Place of 0rigin: USA
Thread Size: 1/4-28 UNF
Armor Option: Without armor
Probe Temperature Stability (typical): Over probe temperature range of -35°C to +177°C (31°F to +350°F), the incremental scale factor remains within ±10% of 7.87 V/mm (200 mV/mil) and the deviation from the best fit straight line remains within ±0.076 mm (±3 mils).
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 303 or 304 stainless steel (SST)
Probe Cable: 75 Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable in the following lengths: 0.5, 1, 2, 5, or 9 meters (1.6, 3.3, 16.4, or 29.5 feet)
Temperature Range: -35°C to +177°C (31°F to +351°F)
Output Resistance: 50 W
Power Supply: -24 Vdc

Ordering Information

✣ Need Assistance? ✣

For pricing, stock availability, or additional product information, feel free to contact us.

✣ Why Partner With Us? ✣

Industrial Automation Parts Supply

We supply a wide range of industrial automation components, including PLCs, DCS modules, HMI panels, servo drives, power supplies, I/O modules, communication modules, and other control system spare parts.

Worldwide Shipping

Orders can be shipped to customers in many countries through established international carriers, with delivery options selected according to destination and urgency.

Export Documentation

We provide standard export documents and assist with shipping paperwork to help support international orders.

Careful Packaging

Products are packed carefully before shipment to help reduce the risk of damage during transportation.

Product Sourcing

If a required part is difficult to find, we can help check availability through our supplier network and provide sourcing support whenever possible.

Customer Support

Our team responds to product inquiries, quotations, and order updates, helping customers obtain the information needed before and after purchase.

✣FAQ ✣

What is the measuring range of the Bently Nevada 330171 5mm proximity probe?
This 3300 series 5 mm proximity probe has a nominal scale factor of 7.87 V/mm (200 mV/mil), designed for standard shaft vibration and axial position monitoring of rotating equipment.

What cable length options are available for the 330171 probe?
Standard cable lengths include 0.5 m, 1 m, 2 m, 5 m and 9 meters. The suffix digit in the part number defines the selected total cable length.

Does the 330171-00-24-10-02-00 probe come with armored cable?
No. This model is supplied with non-armored 75 Ω triaxial FEP insulated probe cable. Armor version needs to be confirmed via different part number configurations.

What operating temperature can this proximity probe withstand?
The probe operates reliably from -35°C to +177°C. Within this range, the incremental scale factor deviation is controlled within ±10%.

What connector type is fitted on the 330171 series probe (suffix 02)?
Suffix 02 stands for Miniature coaxial ClickLoc connector with standard triaxial cable, compatible with matched extension cables and monitor interfaces of the 3300 system.
