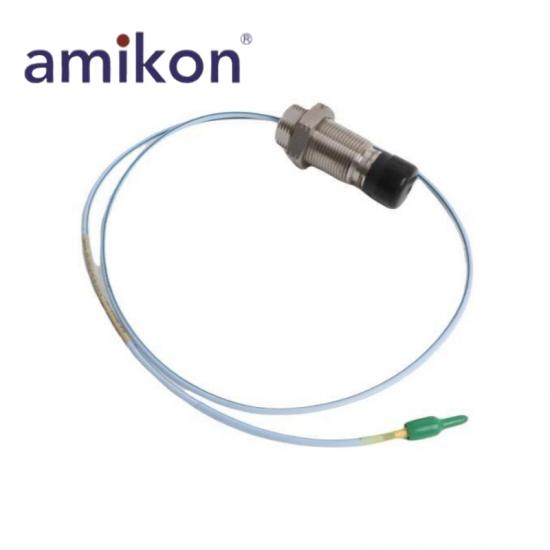

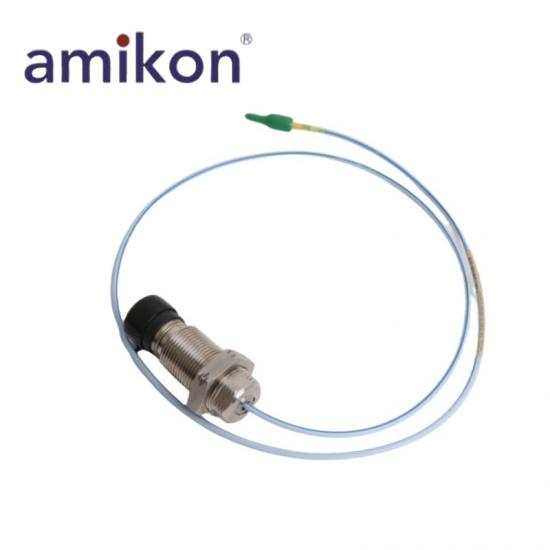

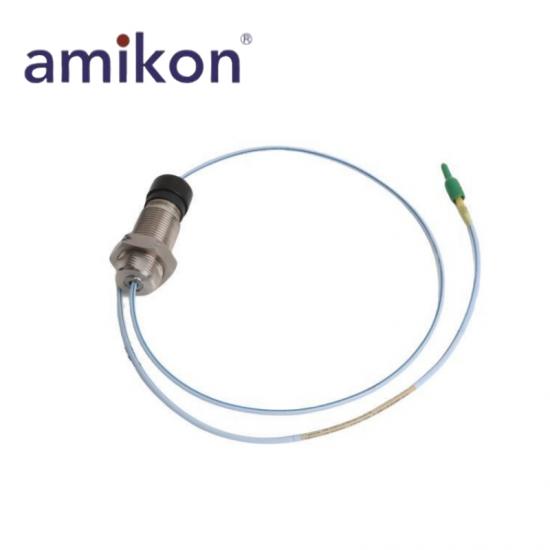

Bently Nevada 330851-01-000-020-10-00-00 330851-01-00-20-10-00-00 3300 XL 25 mm Proximity Probe

Product Model

330851-01-000-020-10-00-00

Product Parameters

3300 XL 25 mm Proximity Probe

Country of origin

USA

Place of shipment

Xiamen, China

Manufacturer

Bently Nevada

Probe case type

1¼–12 UNF threaded probe case

Unthreaded length

0.0 mm (standard unthreaded length)

Overall case length

2.0 inches (standard English increment configuration; smooth/threaded case length selection per ordering code)

Total probe length

1.0 meter (3.3 ft) probe with extension cable system compatibility

Armor option

No stainless steel armor (standard configuration)

Agency approval

No special agency approvals

Standard Output

0.787 V/mm (20 mV/mil)

Linear Range

approximately 12.7 mm (500 mils)

High Linearity Accuracy

typical deviation within ±0.31 mm (±12 mils)

Non-contact displacement sensing: Measures the gap between the probe tip and a conductive target (shaft, collar, or ramp) using eddy-current technology.

Shaft position measurement: Provides continuous monitoring of rotor axial and radial position in rotating machinery.

Vibration detection (system-level function): Enables measurement of dynamic shaft motion when used with a 3300 XL Proximitor Sensor and monitoring system.

Differential expansion (DE) monitoring support: Used in turbine applications to track thermal growth differences between rotor and stator components.

Signal generation for monitoring systems: Works with the Proximitor Sensor to convert mechanical displacement into a proportional voltage signal for control and protection systems.

Wide linear measurement capability: Supports accurate measurement over a long linear range suitable for large industrial turbines.

High-temperature operation capability: Designed for stable operation in harsh environments such as steam turbines with elevated temperatures.

Mechanical robustness for industrial use: Sealed probe design with FluidLoc cable to resist moisture ingress and maintain measurement reliability.

Flexible installation compatibility: Supports threaded or smooth case configurations for different turbine and machinery mounting requirements.

System integration compatibility: Fully compatible with Bently Nevada 3300 XL monitoring systems and backward-compatible with legacy 7200-series systems.
