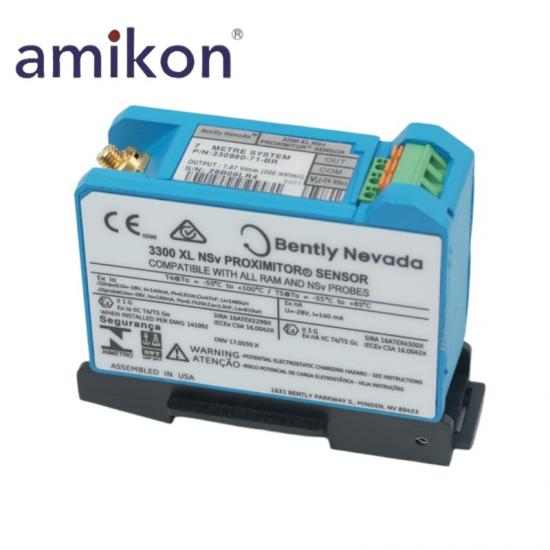

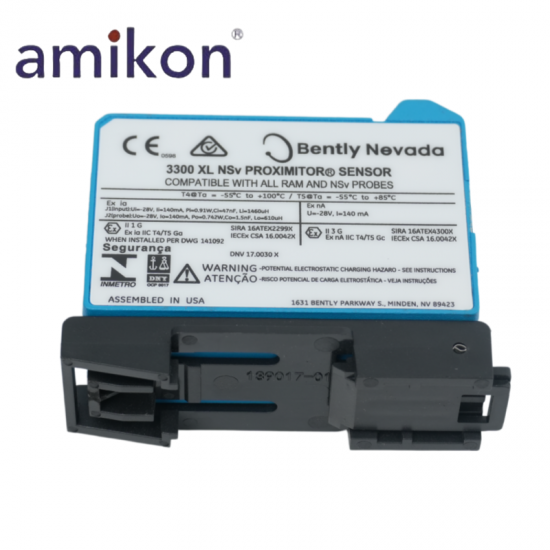

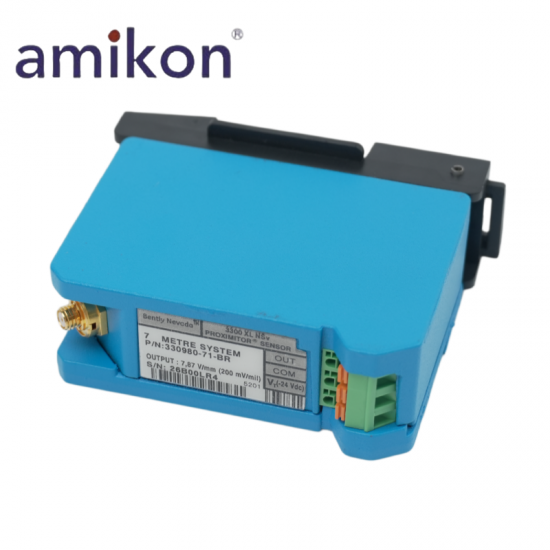

Bently Nevada 330980-71-BR 3300 XL NSv Proximitor Sensor

Product Information

Part Number: 330980-71-BR

Product Type: 3300 XL NSv Proximitor Sensor

Manufacturer: Bently Nevada

Weight: 0.2kg

Estimated shipping dimensions: 8.8x3.5x7cm

Country of origin: USA

Place of shipment: Xiamen, Fujian, China

Product Parameters

Power: -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum; -23 Vdc to -26 Vdc with barriers

Output Resistance: 50 ohms

Linear Range: 1.5 mm (60 mils)

Recommended Gap Setting: 1.0 mm (40 mils)

Frequency Response:

0 to 10 kHz: +0, -3 dB typical

Operating Temperature:

-52°C to +100°C (-62°F to +212°F)

Storage Temperature:

-52°C to +105°C (-62°F to +221°F)

Scale Factor:

7.87 V/mm (200 mV/mil), +12.5%/-20%

Total Length and Mounting Option:

7.0 meters (23.0 feet) system length, DIN mount

Agency Approval Suffix:

BR in supplied model; not listed in current Datasheet 147385 Rev. R

Sensor Input: Accepts one non-contacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable

Approval Option:

BR - Brazil country-specific ordering option

We can provide you with 100% original products.

We will provide you with 100% quality assurance.

We can offer you competitive prices.

We can ensure fast delivery.

We guarantee you a one-year warranty.

We have a professional technical team.

We will reply to your inquiry within 1 hour.
